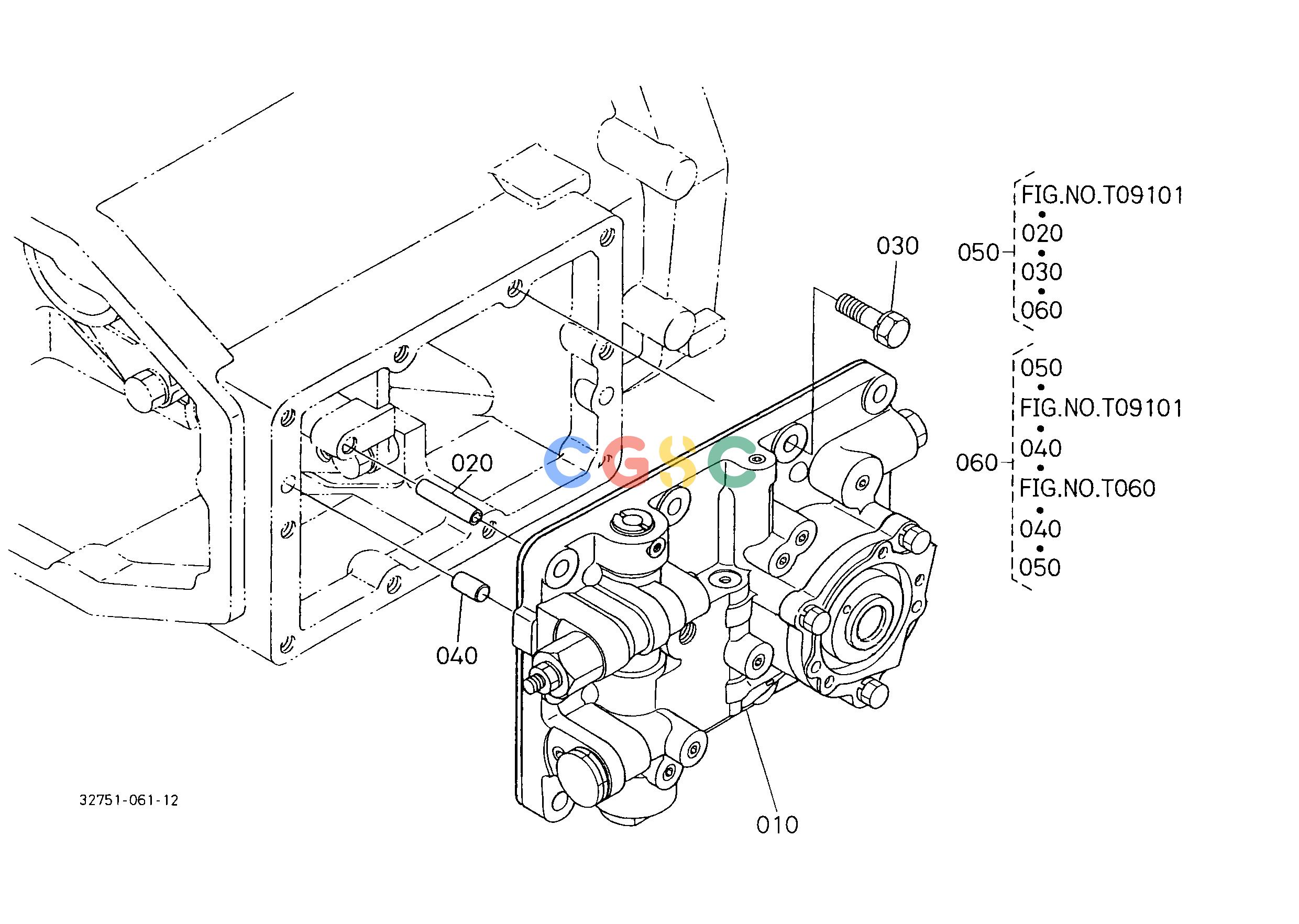

久保田零件查询T09100 GST VALVE HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
389 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA04065010
|
[1] |
ASSY VALVE,GST
|
0.0000(lbs); 0.000
|
| 010. |
TA04065012
|
[1] |
VALVE,ASSY(GST)
|
0.0000(lbs); 0.000
|
| 010. |
TA04099031
|
[1] |
ASSY VALVE,GST
|
0.0000(lbs); 0.000
|
| 010. |
TA04099034
|
[1] |
VALVE,ASSY(GST)
|
18.5900(lbs); 8.450
|
| 020. |
3275164990
|
[1] |
PIPE,HYDRAULIC
|
0.0132(lbs); 0.006
|
| 030. |
0113351032
|
[10] |
BOLT,SEMS
|
0.0550(lbs); 0.025
|
| 040. |
0501201018
|
[2] |
PIN,STRAIGHT
|
0.0264(lbs); 0.012
|
| 050. |
3407699280
|
[1] |
COVER,ASSY(ROTARYVAL)
|
0.5060(lbs); 0.230
|
| 060. |
3407699200
|
[1] |
CYLINDER,ASSY(ROTARY VALVE)
|
0.6600(lbs); 0.300
|
