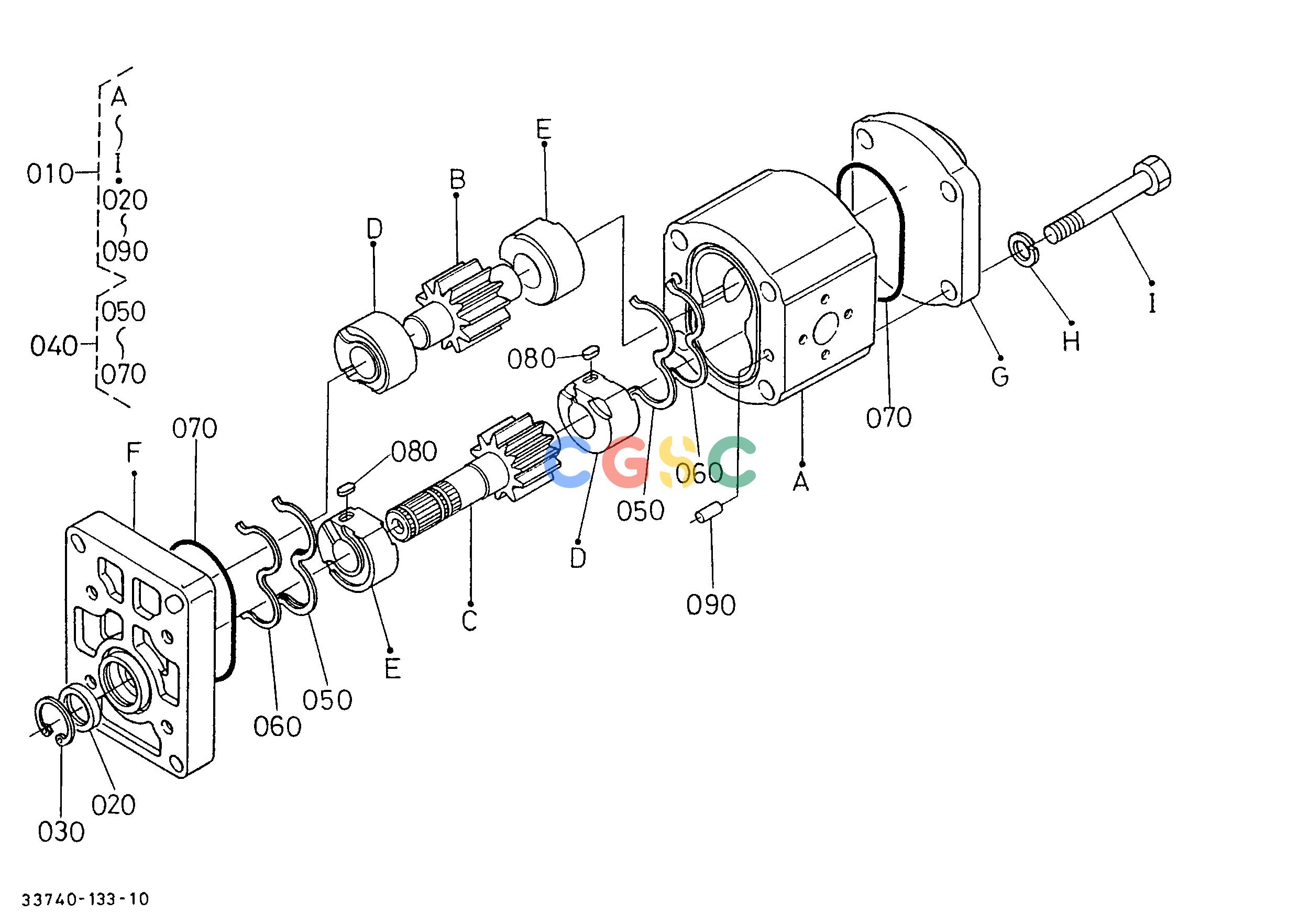

久保田零件查询T09600 HYDRAULIC PUMP [COMPONENT PARTS] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
535 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3366082200
|
[1] |
PUMP,HYDRAULIC
|
5.8520(lbs); 2.660
|
| 020. |
3633082320
|
[1] |
SEAL,OIL
|
0.0220(lbs); 0.010
|
| 030. |
6805191850
|
[1] |
RING,SNAP
|
0.0022(lbs); 0.001
|
| 040. |
3633082480
|
[1] |
SEAL,SET
|
0.0110(lbs); 0.005
|
| 050. |
3543012870
|
[2] |
ELEMENT,SEAL
|
0.0066(lbs); 0.003
|
| 060. |
6805191880
|
[2] |
ELEMENT,BACK UP
|
0.0022(lbs); 0.001
|
| 070. |
6805191910
|
[2] |
O-RING
|
0.0022(lbs); 0.001
|
| 080. |
6805191890
|
[2] |
KEY
|
0.0022(lbs); 0.001
|
| 090. |
6827191240
|
[2] |
PIN
|
0.0088(lbs); 0.004
|
