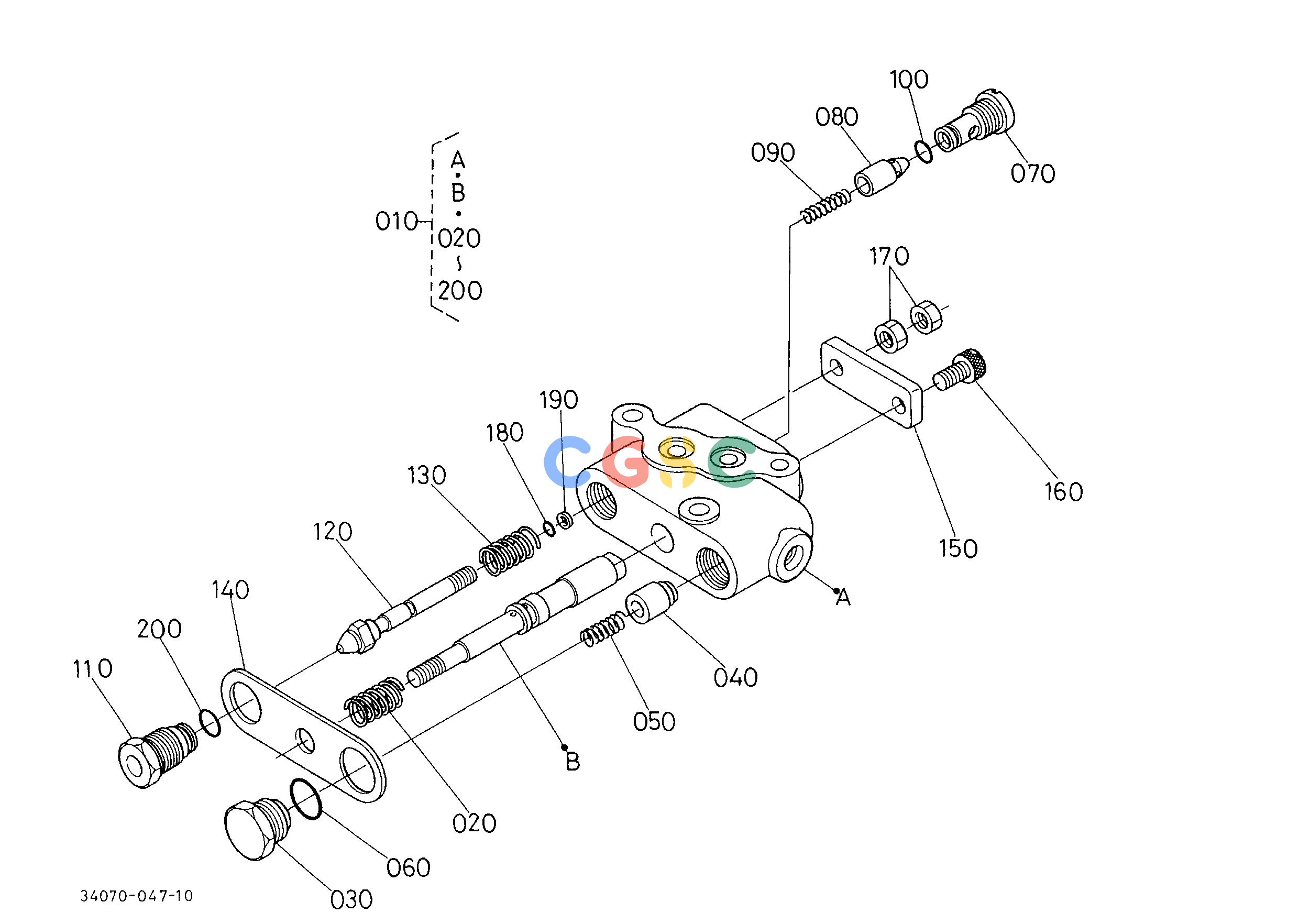

久保田零件查询T10200 CONTROL VALVE [COMPONENT PARTS] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
529 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3508039100
|
[1] |
VALVE,CONTROL,ASSY
|
3.5200(lbs); 1.600
|
| 010. |
3508039102
|
[1] |
ASSY VALVE,CONTROL
|
3.7400(lbs); 1.700
|
| 020. |
3135139130
|
[1] |
SPRING,SPOOL
|
0.0110(lbs); 0.005
|
| 030. |
3135139140
|
[1] |
PLUG
|
0.1100(lbs); 0.050
|
| 040. |
3508039150
|
[1] |
POPPET
|
0.0440(lbs); 0.020
|
| 050. |
6753138470
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
| 060. |
0481100160
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
0481700160
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 070. |
3508039170
|
[1] |
PLUG
|
0.0770(lbs); 0.035
|
| 080. |
3139139180
|
[1] |
POPPET
|
0.0330(lbs); 0.015
|
| 090. |
3139139190
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
| 100. |
0481000090
|
[1] |
O-RING
|
0.0022(lbs); 0.001
|
| 100. |
0481700090
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 110. |
3508039200
|
[1] |
PLUG
|
0.0880(lbs); 0.040
|
| 120. |
3508039220
|
[1] |
POPPET
|
0.0770(lbs); 0.035
|
| 130. |
3135139230
|
[1] |
SPRING
|
0.0176(lbs); 0.008
|
| 140. |
3135139240
|
[1] |
PLATE
|
0.1100(lbs); 0.050
|
| 150. |
3508039250
|
[1] |
PLATE,JOINT
|
0.0990(lbs); 0.045
|
| 160. |
0131110814
|
[1] |
BOLT,HEX-SOC-HD
|
0.0264(lbs); 0.012
|
| 170. |
0211250080
|
[2] |
HEX.NUT
|
0.0066(lbs); 0.003
|
| 180. |
0481100050
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 180. |
0481600050
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 190. |
3135139290
|
[1] |
RING,BACK UP
|
0.0022(lbs); 0.001
|
| 200. |
0481006100
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 200. |
0481706100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
