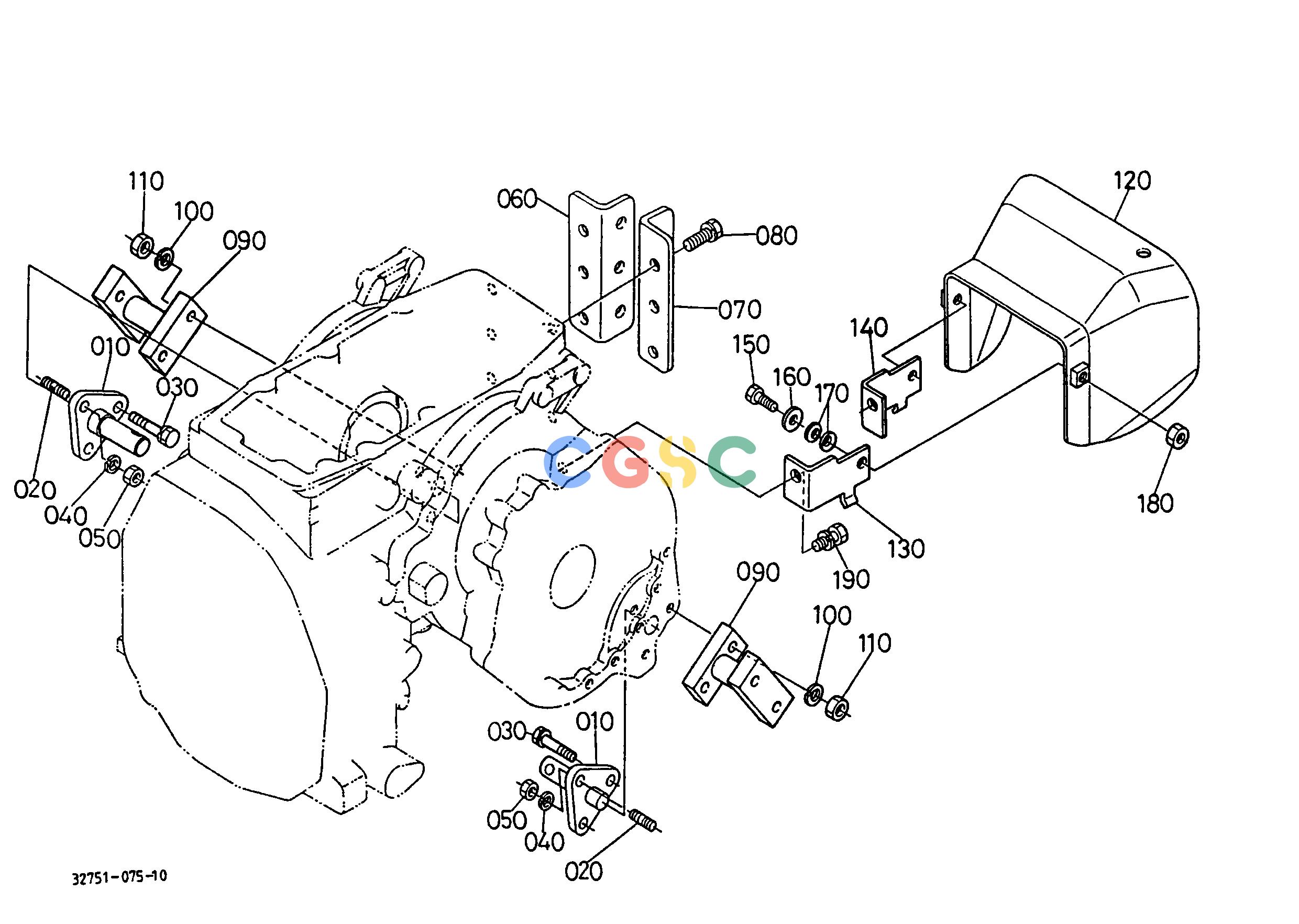

久保田零件查询T10800 TOP LINK HOLDER AND PTO PROTECTOR HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
768 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3407039410
|
[2] |
HOLDER,LOWER LINK
|
1.1110(lbs); 0.505
|
| 010. |
3407039412
|
[2] |
HOLDER,LOWER LINK
|
1.1110(lbs); 0.505
|
| 020. |
0151751020
|
[2] |
BOLT,STUD
|
0.0418(lbs); 0.019
|
| 020. |
0151751022
|
[2] |
BOLT,STUD
|
0.0440(lbs); 0.020
|
| 030. |
0117551060
|
[4] |
HEX.BOLT
|
0.0880(lbs); 0.040
|
| 030. |
0113351025
|
[4] |
BOLT,SEMS
|
0.0506(lbs); 0.023
|
| 040. |
0451250100
|
[2] |
WASHER,SPRING LOCK
|
0.0066(lbs); 0.003
|
| 050. |
0217650100
|
[2] |
HEX.NUT
|
0.0110(lbs); 0.005
|
| 060. |
9957122140
|
[1] |
HOLDER(RH LINK,TOP)
|
2.1120(lbs); 0.960
|
| 070. |
9957122150
|
[1] |
HOLDER(LH LINK,TOP)
|
2.1780(lbs); 0.990
|
| 080. |
0113351230
|
[6] |
BOLT,SEMS
|
0.0880(lbs); 0.040
|
| 090. |
3275139420
|
[2] |
BRACKET
|
1.2320(lbs); 0.560
|
| 100. |
0451250100
|
[4] |
WASHER,SPRING LOCK
|
0.0066(lbs); 0.003
|
| 110. |
0217650100
|
[4] |
HEX.NUT
|
0.0110(lbs); 0.005
|
| 120. |
TA04023740
|
[1] |
PROTECTOR,PTO
|
4.6200(lbs); 2.100
|
| 120. |
TA04023742
|
[1] |
PROTECTOR,PTO
|
4.6200(lbs); 2.100
|
| 130. |
TA04023750
|
[1] |
STAY
|
0.4400(lbs); 0.200
|
| 130. |
TA04023752
|
[1] |
STAY
|
0.4180(lbs); 0.190
|
| 140. |
TA04023760
|
[1] |
STAY
|
0.4400(lbs); 0.200
|
| 140. |
TA04023762
|
[1] |
STAY
|
0.4180(lbs); 0.190
|
| 150. |
0117351025
|
[2] |
HEX.BOLT
|
0.0462(lbs); 0.021
|
| 160. |
0401350100
|
[2] |
WASHER,PLAIN
|
0.0088(lbs); 0.004
|
| 170. |
6215142412
|
[4] |
SPRING,PLATE
|
0.0044(lbs); 0.002
|
| 180. |
0211650100
|
[2] |
HEX.NUT
|
0.0088(lbs); 0.004
|
| 190. |
0113351230
|
[2] |
BOLT,SEMS
|
0.0880(lbs); 0.040
|
