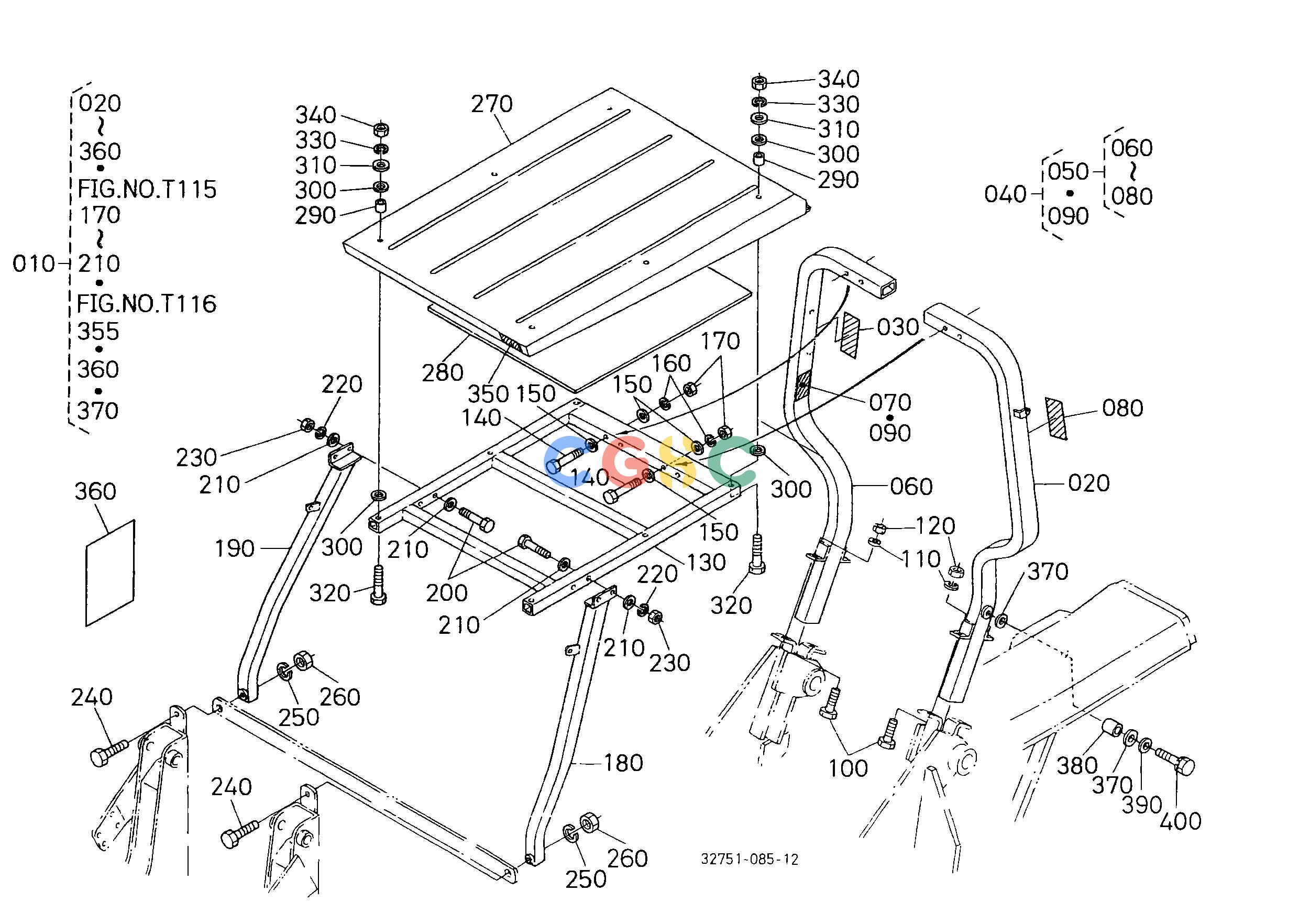

久保田零件查询T11900 ROPS AND FOPS ROPSEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
530 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3275193940
|
[1] |
ROPS,KIT
|
0.0000(lbs); 0.000
|
| 020. |
99999-99999
|
[1] |
COMP.FRAME LH
|
0.0000(lbs); 0.000
|
| 030. |
6C14054990
|
[1] |
REFLECTOR(LABEL)
|
0.0066(lbs); 0.003
|
| 040. |
99999-99999
|
[1] |
KIT,FRAME RH (B)
|
0.0000(lbs); 0.000
|
| 050. |
99999-99999
|
[1] |
KIT,FRAME RH (A)
|
0.0000(lbs); 0.000
|
| 060. |
99999-99999
|
[1] |
COMP.FRAME RH
|
0.0000(lbs); 0.000
|
| 070. |
6C14047460
|
[1] |
LABEL,ROPS WARNING
|
0.0022(lbs); 0.001
|
| 080. |
6C14054990
|
[1] |
REFLECTOR(LABEL)
|
0.0066(lbs); 0.003
|
| 090. |
6C14147460
|
[1] |
LABEL,ROPS WARNING FR
|
0.0022(lbs); 0.001
|
| 100. |
3253029030
|
[4] |
BOLT
|
0.2640(lbs); 0.120
|
| 110. |
0451250160
|
[4] |
WASHER,SPRING LOCK
|
0.0220(lbs); 0.010
|
| 120. |
3253029040
|
[4] |
NUT
|
0.0660(lbs); 0.030
|
| 130. |
99999-99999
|
[1] |
COMP.FRAME(UPPER)
|
0.0000(lbs); 0.000
|
| 140. |
7559904590
|
[4] |
HEX.BOLT
|
0.2860(lbs); 0.130
|
| 150. |
7559932115
|
[8] |
WASHER,PLAIN(1/2W)
|
0.0440(lbs); 0.020
|
| 160. |
7559933015
|
[4] |
WASHER,SPRING LOCK(1/2)
|
0.0132(lbs); 0.006
|
| 160. |
0Y45050080
|
[4] |
WASHER,SPRING LOCK
|
0.1254(lbs); 0.057
|
| 170. |
7559931025
|
[4] |
HEX.NUT(1/2-20UNF)
|
0.0330(lbs); 0.015
|
| 180. |
99999-99999
|
[1] |
COMP FRAME(F/LH)
|
0.0000(lbs); 0.000
|
| 190. |
99999-99999
|
[1] |
COMP FRAME(F/RH)
|
0.0000(lbs); 0.000
|
| 200. |
7559904560
|
[4] |
HEX.BOLT
|
0.1980(lbs); 0.090
|
| 210. |
7559932115
|
[8] |
WASHER,PLAIN(1/2W)
|
0.0440(lbs); 0.020
|
| 220. |
7559933015
|
[4] |
WASHER,SPRING LOCK(1/2)
|
0.0132(lbs); 0.006
|
| 220. |
0Y45050080
|
[4] |
WASHER,SPRING LOCK
|
0.1254(lbs); 0.057
|
| 230. |
7559931025
|
[4] |
HEX.NUT(1/2-20UNF)
|
0.0330(lbs); 0.015
|
| 240. |
7559904680
|
[2] |
HEX.BOLT
|
0.3146(lbs); 0.143
|
| 250. |
7559933016
|
[2] |
WASHER,SPRING LOCK(9
|
0.1760(lbs); 0.080
|
| 250. |
0Y45050090
|
[2] |
WASHER,SPRING
|
0.0154(lbs); 0.007
|
| 260. |
7559931946
|
[2] |
NUT,LOCKING
|
0.0660(lbs); 0.030
|
| 270. |
99999-99999
|
[1] |
CANOPY,FOPS
|
0.0000(lbs); 0.000
|
| 280. |
3275134990
|
[1] |
ACOUSTIC FORM
|
0.0000(lbs); 0.000
|
| 290. |
3275134860
|
[6] |
COLLAR(FOPS)
|
0.0352(lbs); 0.016
|
| 300. |
3275134870
|
[12] |
CUSHION(FOPS)
|
0.0220(lbs); 0.010
|
| 310. |
7559932113
|
[6] |
WASHER,PLAIN(3/8W)
|
0.0220(lbs); 0.010
|
| 320. |
7559904330
|
[6] |
HEX, BOLT(3/8-24UNFX1-1/2)GR8
|
0.0770(lbs); 0.035
|
| 330. |
7559933013
|
[6] |
WASHER,SPRING LOCK(3/8)
|
0.0132(lbs); 0.006
|
| 330. |
0Y45050060
|
[6] |
WASHER,SPRING
|
0.0066(lbs); 0.003
|
| 340. |
7559931023
|
[6] |
HEX.NUT(3/8-24UNF)
|
0.0132(lbs); 0.006
|
| 350. |
3275134880
|
[1] |
LABEL KUBOTA(FOPS)
|
0.0022(lbs); 0.001
|
| 360. |
3275193960
|
[1] |
MANUAL,ROPS KIT
|
0.0000(lbs); 0.000
|
| 370. |
3824018640
|
[4] |
CUSHION
|
0.0220(lbs); 0.010
|
| 380. |
3253029940
|
[2] |
SPACER
|
0.0220(lbs); 0.010
|
| 390. |
0401550100
|
[2] |
WASHER,PLAIN
|
0.0352(lbs); 0.016
|
| 400. |
0113351035
|
[2] |
BOLT,SEMS
|
0.0660(lbs); 0.030
|
