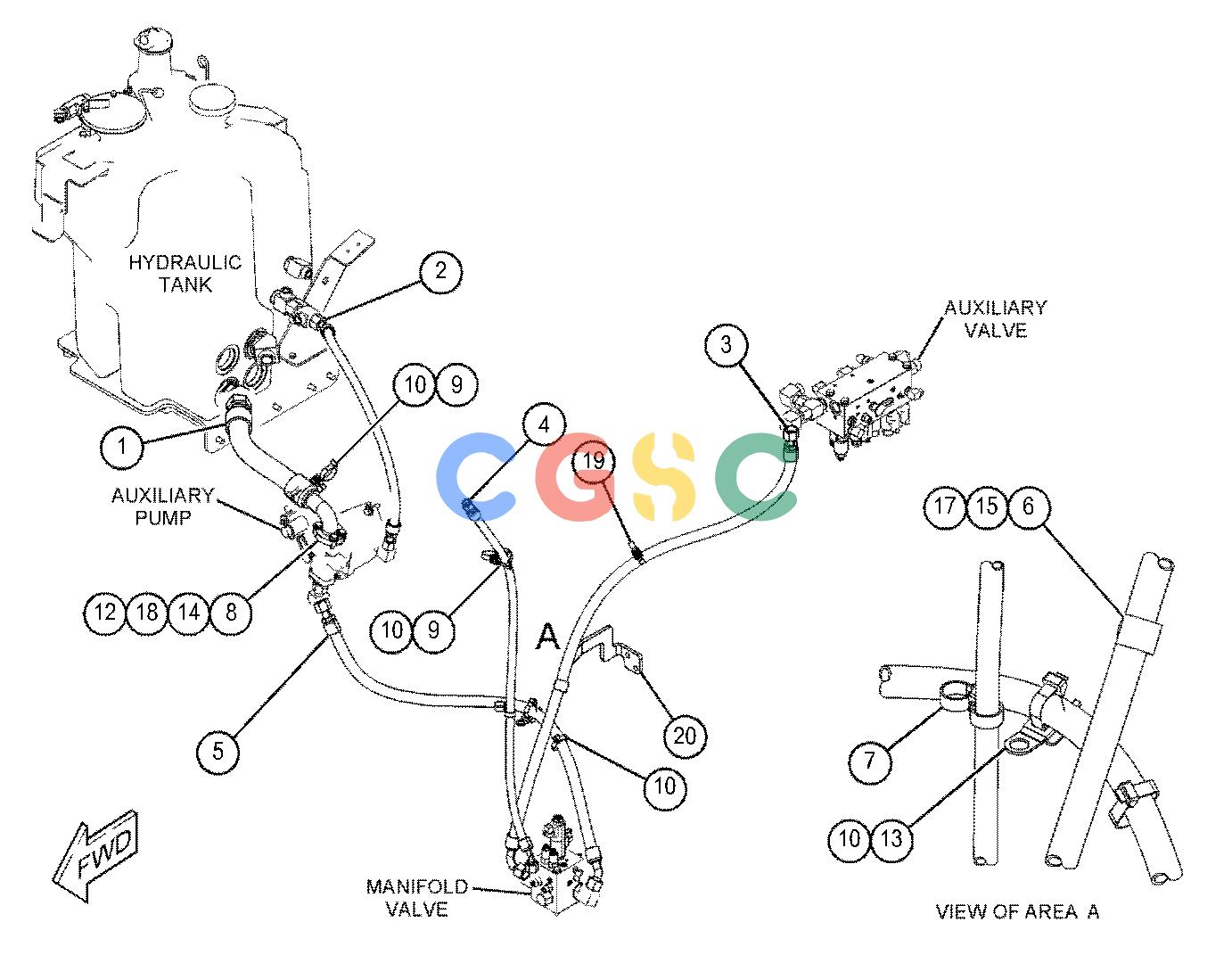

卡特零件查询（AP500F） 447-9827: LINES GP-PUMP
广数供应链运营团队, 17 02月, 2025，浏览：
211 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 460-9597I | [1] | HOSE AS | |
| 2. | 460-9599I | [1] | HOSE AS | |
| 3. | 460-9604I | [1] | HOSE AS | |
| 4. | 460-9605I | [1] | HOSE AS | |
| 5. | 467-5675I | [1] | HOSE AS | |
| 6. | 149-7738 | [1] | CLIP(LOOP) | |
| 7. | 178-3620 | [1] | STRAP-DUAL CLAMP | |
| 8. | 1P-4578 | [2] | FLANGE-HALF | |
| 9. | 200-6345 | [2] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 10. | 204-2281 | [6] | STRAP-CABLE | |
| 12. | 4J-0522 | [1] | SEAL-O-RING | |
| 13. | 4P-7582 | [1] | CLIP(LADDER) | |
| 14. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 15. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 17. | 8T-4191M | [1] | BOLT(M10X1.5X16-MM) | |
| 18. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| 19. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| 20. | 498-9904 | [1] | BRACKET | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
