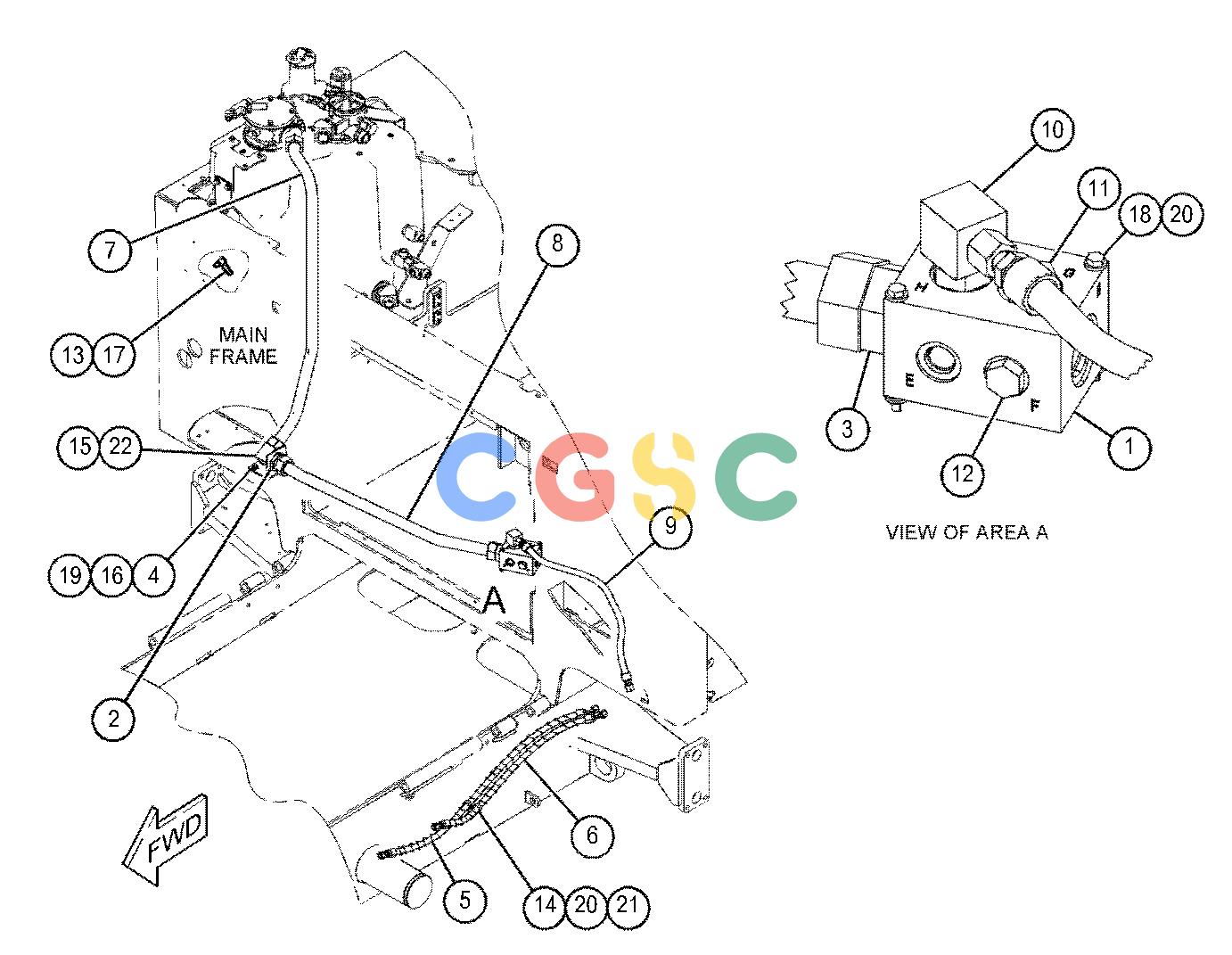

卡特零件查询（AP500F） 447-9830: LINES GP-STEERING
广数供应链运营团队, 17 02月, 2025，浏览：
313 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 107-0003 | [1] | MANIFOLD | |
| 2. | 202-7468 | [1] | NUT(2-12-THD) | |
| 3. | 205-4132 | [1] | CONNECTOR AS | |
| | 2S-4078 | [1] | SEAL-O-RING | |
| | 8T-0315 | [1] | SEAL-O-RING | |
| | 8T-8985 | [1] | CONNECTOR | |
| 4. | 338-3948 | [1] | BRACKET | |
| 5. | 447-0635I | [1] | HOSE AS | |
| 6. | 447-0636I | [1] | HOSE AS | |
| 7. | 447-0639 | [1] | TUBE AS | |
| 8. | 462-5369 | [1] | TUBE AS | |
| 9. | 467-5674I | [1] | HOSE AS | |
| 10. | 148-8381 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8T-5429 | [1] | ELBOW | |
| 11. | | [1] | PLUG AS |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 9S-4183 | [1] | PLUG(1-1/16-12-THD) | |
| 12. | 148-8411 | [3] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 13. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 14. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| 15. | 202-6665 | [1] | ELBOW AS | |
| | 8T-0315 | [2] | SEAL-O-RING | |
| | 202-6663 | [1] | ELBOW | |
| 16. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 17. | 6V-0852 | [1] | CAP-DUST | |
| 18. | 7X-7888M | [2] | BOLT(M6X1X90-MM) | |
| 19. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 20. | 8T-4205 | [7] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 21. | 8T-4971M | [1] | BOLT(M6X1X30-MM) | |
| 22. | 7X-0542 | [1] | WASHER-HARD(51X74X3-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
