卡特零件查询（AP500F） 396-7172: PUMP GP-PISTON
广数供应链运营团队, 17 02月, 2025，浏览：
584 次

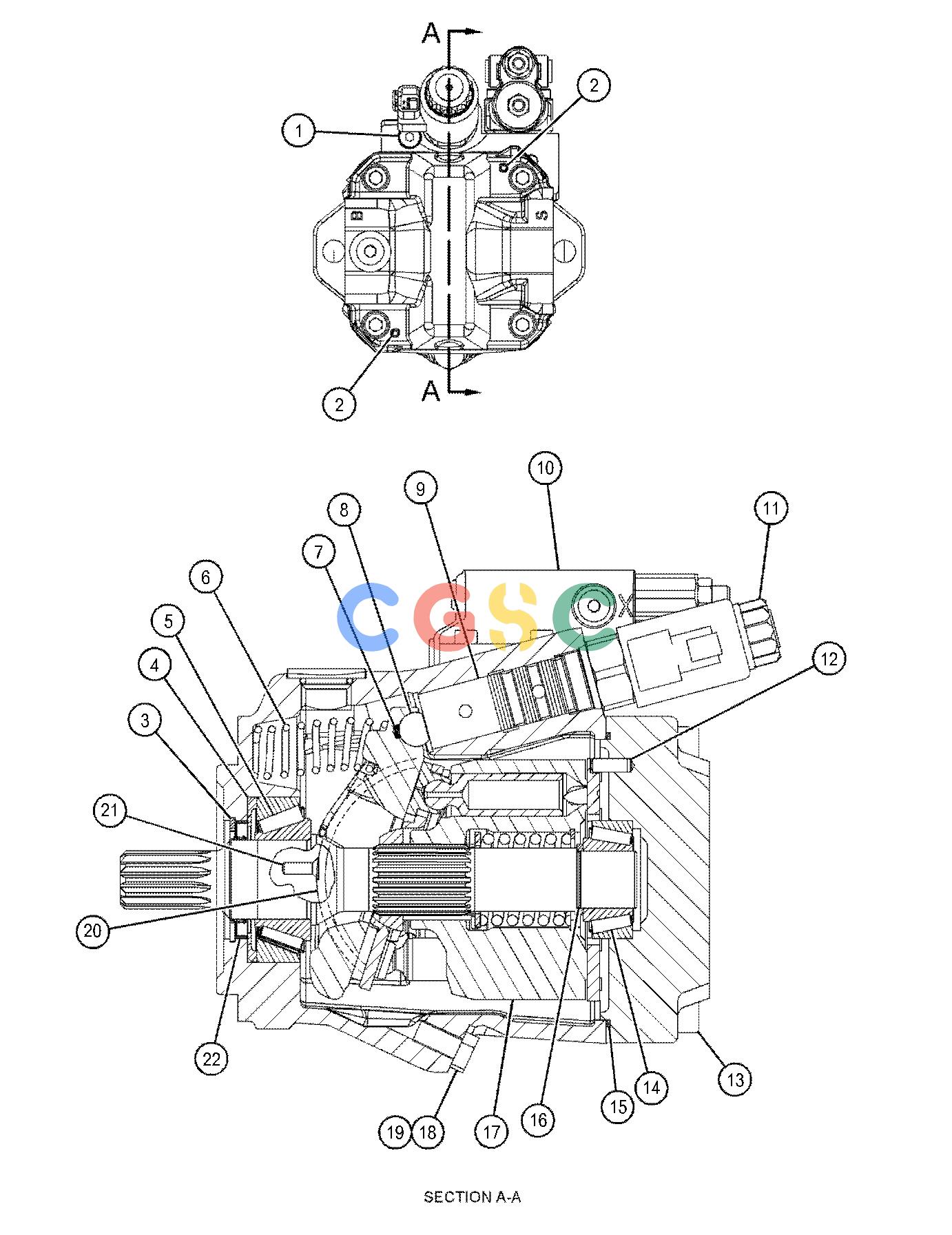

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9T-3928 | [1] | PLUG AS | |
| | 187-8001 | [1] | SEAL | |
| 2. | 168-3504 | [2] | SEAL | |
| 3. | 8T-9597 | [1] | RING-RETAINING | |
| 4. | 194-9473 | [1] | RING | |
| 5. | 364-2043 | [1] | BEARING-ROLLER | |
| 6. | 359-1006 | [1] | SPRING | |
| 7. | 379-5187 | [1] | SPRING | |
| 8. | 333-7840 | [1] | STOP | |
| 9. | 437-1916 | [1] | STOP | |
| 10. | 356-6895Y | [1] | VALVE GP-PUMP CONTROL(PRESSURE, FLOW COMPENSATOR) | |
| 11. | 356-6905Y | [1] | SOLENOID GP(PROPORTIONAL) | |
| 12. | 9X-8979 | [1] | DOWEL | |
| 13. | 101-7404M | [4] | BOLT-SOCKET HEAD(M10X1.5X30-MM) | |
| 14. | 191-7583 | [1] | BEARING-TAPERED | |
| 15. | 231-4707 | [1] | SEAL-O-RING | |
| 16. | 191-7582 | [1] | SHIM(2.5-MM THK) | |
| 17. | 355-9786Y | [1] | ROTATING GP-PUMP | |
| 18. | 356-6909 | [1] | SCREW-STOP | |
| 19. | 033-5879 | [1] | SEAL-O-RING | |
| 20. | 351-6663 | [2] | BEARING-CRADLE | |
| 21. | 6R-7943M | [2] | SCREW(M5X0.8X15-MM) | |
| 22. | 185-0303 | [1] | SEAL-OIL | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
