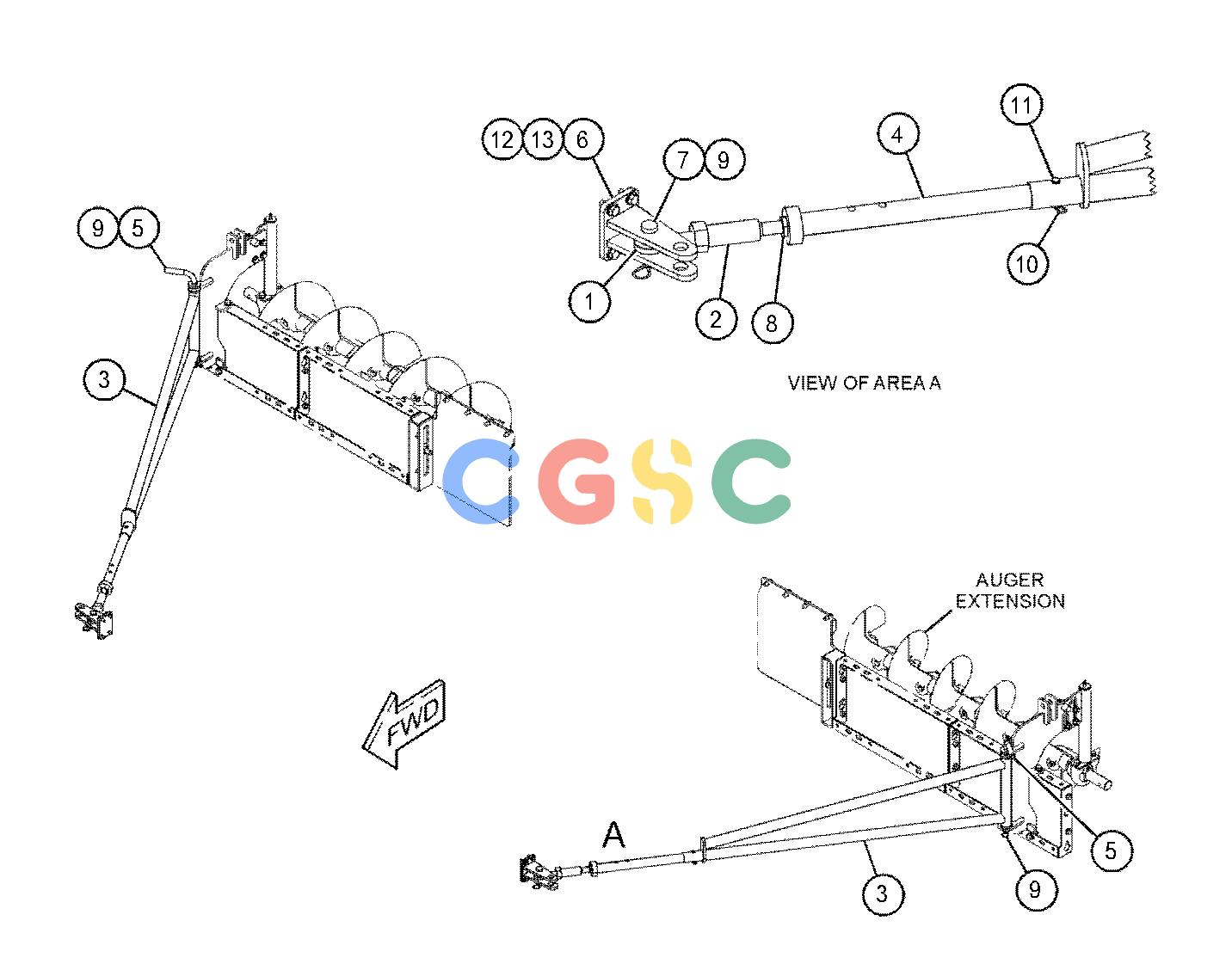

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 393-0624 | [2] | BALL JOINT(LH) | |
| 2. | 418-4017 | [2] | ADJUSTER AS | |
| 3. | 431-6370 | [2] | TUBE AS | |
| 4. | 431-6372 | [2] | TUBE AS | |
| 5. | 431-6374 | [2] | PIN AS | |
| 6. | 431-6386 | [2] | BRACKET AS | |
| 7. | 173-3651 | [2] | PIN-CLEVIS | |
| 8. | 287-2499M | [2] | NUT(M24X2-THD) | |
| 9. | 5P-8837 | [4] | LOCK PIN | |
| 10. | 6S-6646 | [2] | PIN-COTTER | |
| 11. | 6W-5752 | [2] | PIN | |
| 12. | 8T-4139M | [8] | BOLT(M12X1.75X30-MM) | |
| 13. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| M | METRIC PART | |||
