卡特零件查询（AP500F） 488-9800: ROLLER GP-PUSH
广数供应链运营团队, 17 02月, 2025，浏览：
147 次

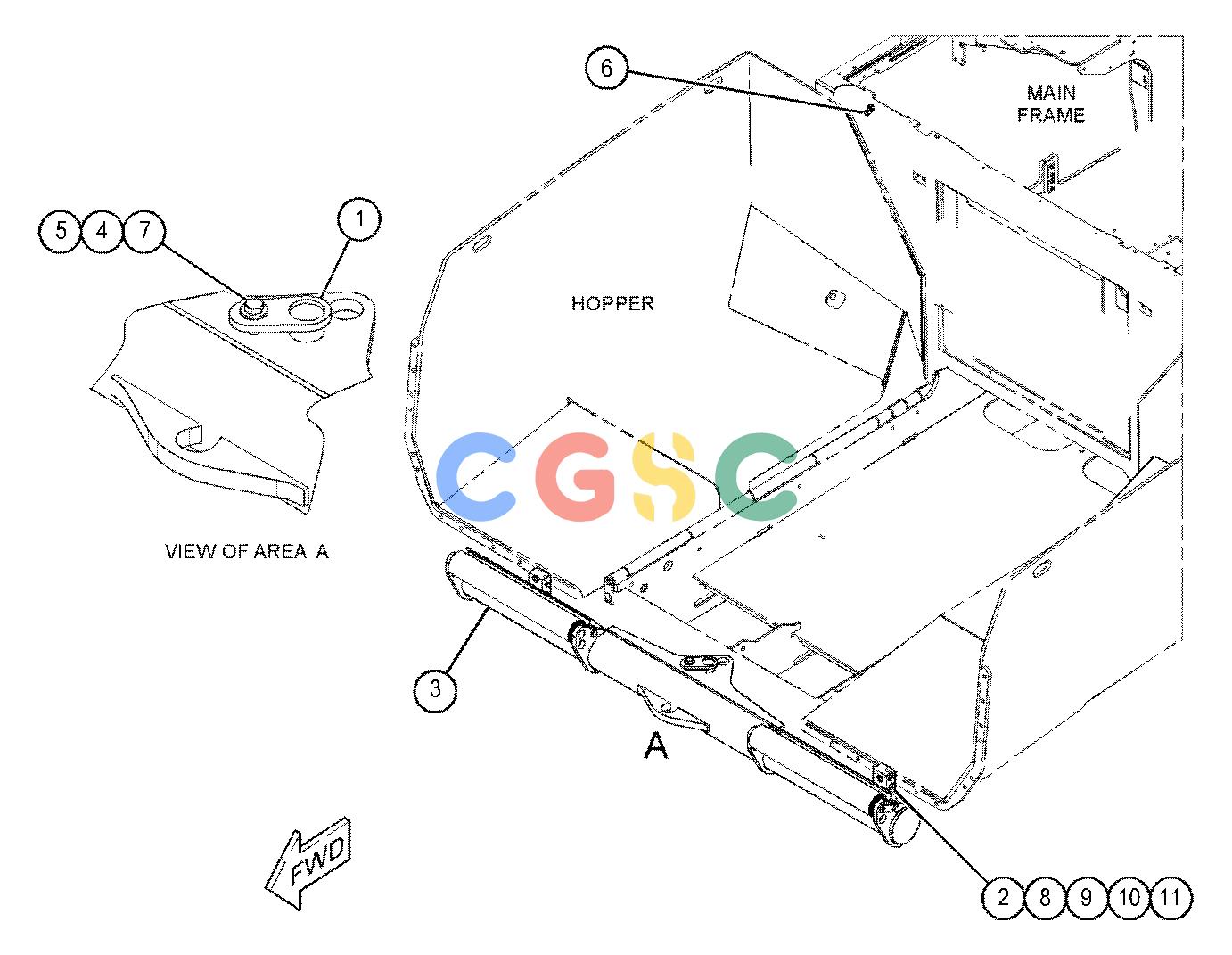

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 378-3750 | [1] | PIN AS | |
| 2. | 495-5600 | [2] | BLOCK-STOP | |
| 3. | 488-9181Y | [1] | ROLLER GP-PUSH | |
| 4. | 120-5737 | [1] | WASHER(17.5X40X4-MM THK) | |
| 5. | 188-6084 | [1] | SPACER(16.5X30X3.2-MM THK) | |
| 6. | 6V-9829 | [2] | CAP(ORFS) | |
| 7. | 7X-2553M | [1] | BOLT(M16X2X40-MM) | |
| 8. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 9. | 8T-4178M | [4] | BOLT(M10X1.5X90-MM) | |
| 10. | 8T-6466M | [4] | BOLT(M10X1.5X60-MM) | |
| 11. | 344-5675M | [4] | NUT(M10X1.5-THD) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
