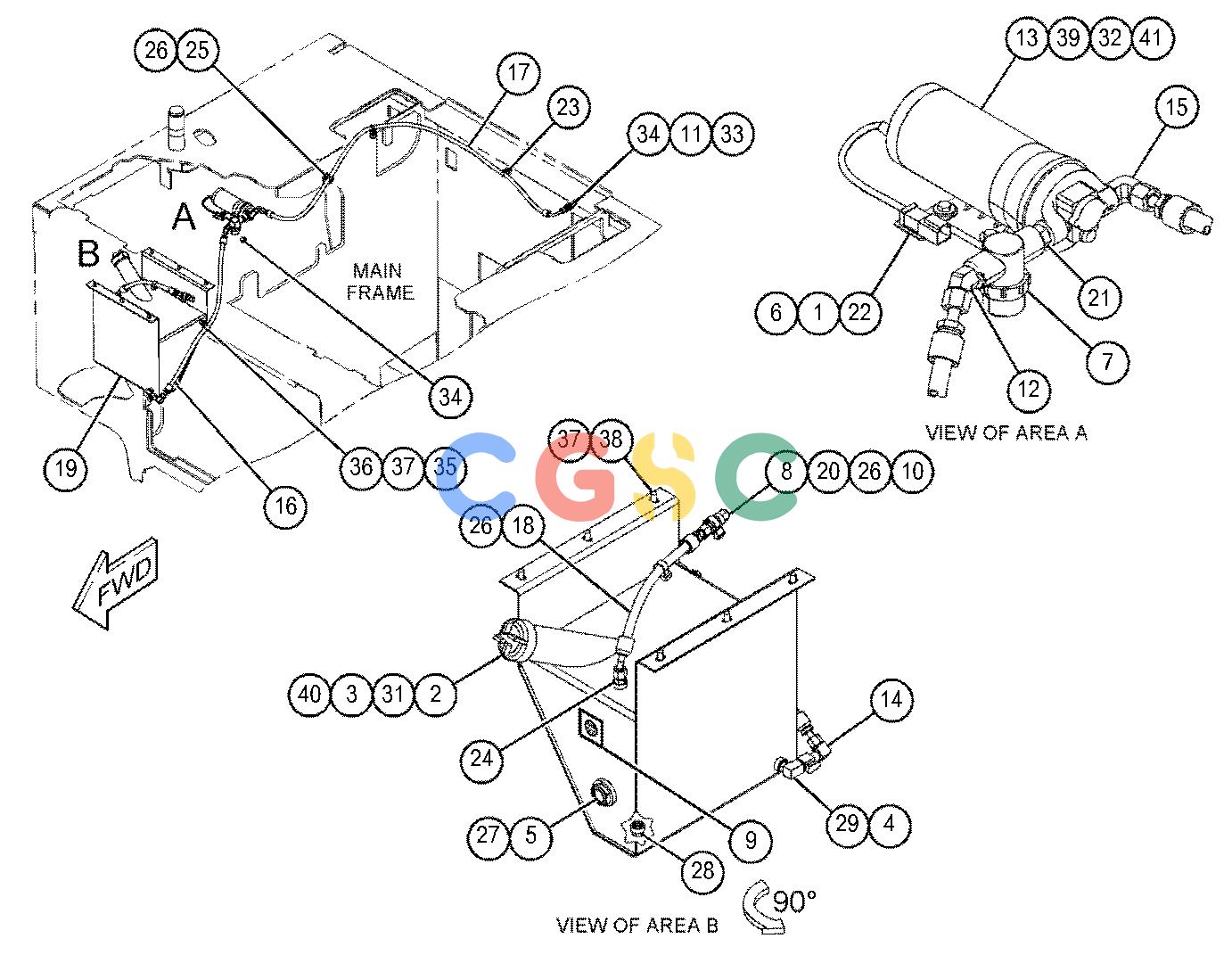

卡特零件查询（AP500F） 449-9185: WASHDOWN GP-ECOLOGY
广数供应链运营团队, 17 02月, 2025，浏览：
216 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 102-8802 | [2] | KIT-RECEPTACLE(2-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| 2. | 5K-1568 | [1] | CAP-FILLER(WASHDOWN TANK) | |
| 3. | 6H-5139 | [1] | PLATE-PRESSURE | |
| 4. | 7X-7655J | [1] | VALVE AS-DRAIN(WASHDOWN TANK) | |
| 5. | 9Y-9236 | [1] | GAUGE-SIGHT(WASHDOWN TANK) | |
| 6. | 126-1767 | [2] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| 7. | 140-3562 | [1] | STRAINER | |
| 8. | 171-5286 | [1] | BREATHER(WASHDOWN TANK) | |
| 9. | 278-7591 | [1] | FILM-IDENTIFICATION(WATER FOR WATER SPRAY) | |
| 10. | 370-6300 | [1] | CONNECTOR AS | |
| | 8C-6869 | [1] | CONNECTOR | |
| | 228-7089 | [1] | SEAL-O-RING | |
| 11. | 377-9586 | [1] | ELBOW AS | |
| | 6V-8987 | [1] | ELBOW | |
| | 228-7089 | [2] | SEAL-O-RING | |
| 12. | 377-9589 | [1] | ELBOW AS | |
| | 103-7268 | [1] | ADAPTER | |
| | 228-7089 | [1] | SEAL-O-RING | |
| 13. | 428-3734Y | [1] | PUMP & MOTOR GP-WASHDOWN | |
| 14. | 448-8985 | [1] | ELBOW AS | |
| | 2T-2305 | [1] | ELBOW | |
| | 228-7089 | [1] | SEAL-O-RING | |
| 15. | 448-9014 | [1] | ELBOW AS | |
| | 2T-1925 | [1] | ELBOW | |
| | 228-7089 | [1] | SEAL-O-RING | |
| 16. | 430-8280 | [1] | HOSE AS | |
| 17. | 449-9190 | [1] | HOSE AS | |
| 18. | 452-8195 | [1] | HOSE AS | |
| 19. | 453-1075 | [1] | TANK AS(WASHDOWN) | |
| 20. | 003-9514 | [1] | COUPLING-PIPE | |
| 21. | 004-6683 | [1] | FITTING | |
| 22. | 130-5300 | [1] | CLIP | |
| 23. | 177-2215 | [2] | STRAP-DUAL CLAMP | |
| 24. | 183-3399 | [1] | CONNECTOR AS | |
| | 6V-8636 | [1] | CONNECTOR | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 228-7089 | [1] | SEAL-O-RING | |
| 25. | 200-6345 | [1] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 26. | 204-2281 | [4] | STRAP-CABLE | |
| 27. | 238-5084 | [1] | SEAL-O-RING | |
| 28. | 244-3712 | [1] | PLUG AS | |
| | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 29. | 330-9731 | [1] | ELBOW AS | |
| | 106-2105 | [1] | ELBOW | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 31. | 4B-9782 | [1] | BALL | |
| 32. | 5P-4115 | [4] | WASHER-HARD(7.2X19X2-MM THK) | |
| 33. | 6V-9168 | [1] | NUT(11/16-16-THD) | |
| 34. | 6V-9829 | [2] | CAP(ORFS) | |
| 35. | 7X-2621M | [1] | BOLT(M10X1.5X12-MM) | |
| 36. | 8M-2773 | [1] | CLIP(LOOP) | |
| 37. | 8T-4121 | [7] | WASHER-HARD(11X21X2.5-MM THK) | |
| 38. | 8T-4137M | [6] | BOLT(M10X1.5X20-MM) | |
| 39. | 8T-4971M | [4] | BOLT(M6X1X30-MM) | |
| 40. | 9H-6454 | [1] | GASKET | |
| 41. | 9X-1813E | | SLEEVE(28-CM) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 459-0644J | [1] | KIT-VALVE REPAIR | |
| | | | (INCLUDES SEAL STEM, RETAINING RING & O-RING SEALS) |
| | E | | ORDER BY THE CENTIMETER |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
