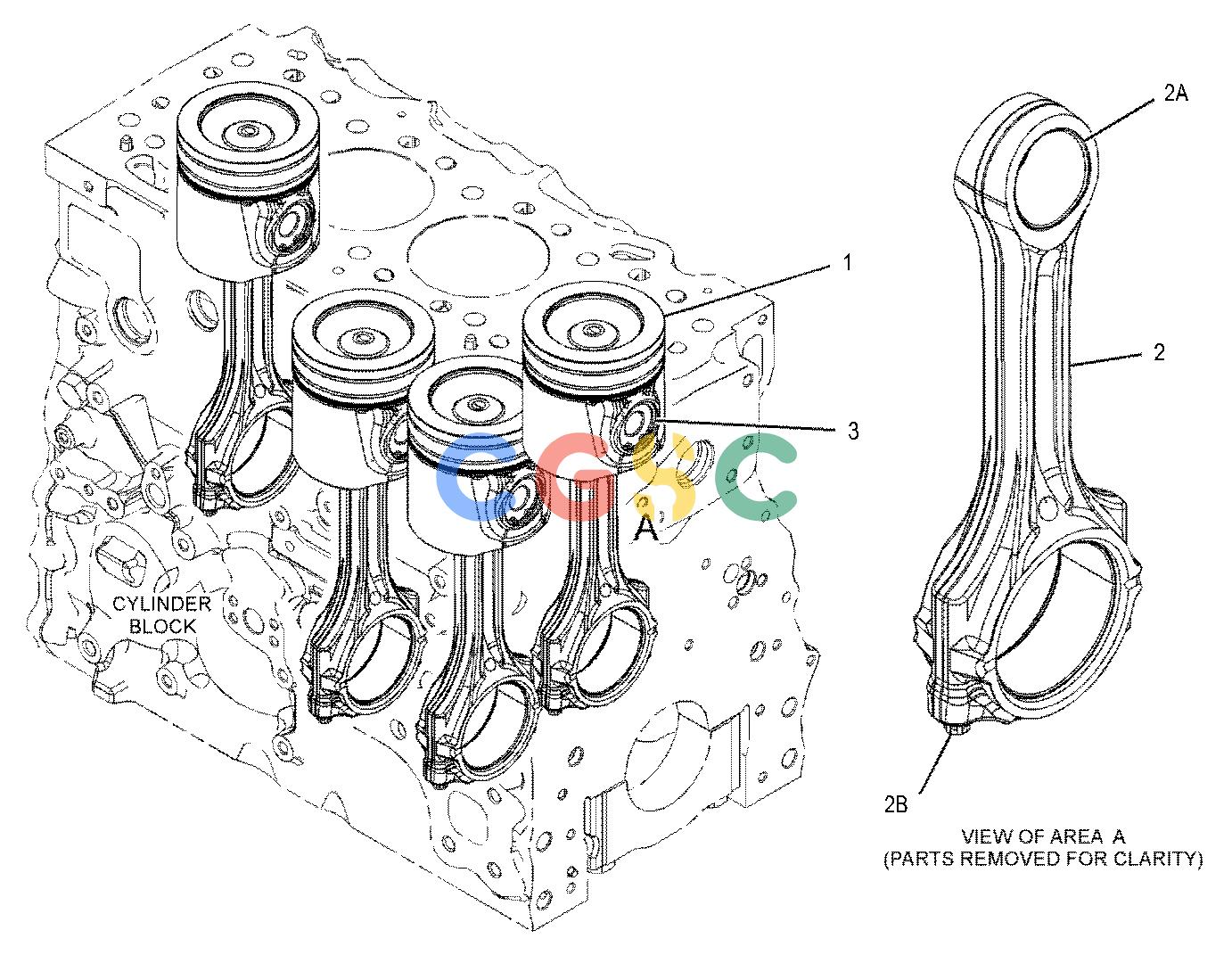

卡特零件查询（AP500F） 392-1366: PISTON & ROD GP
广数供应链运营团队, 17 02月, 2025，浏览：
393 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 493-3286CL | [4] | PISTON GP | |
| 2. | 333-5465 | [4] | CONNECTING ROD GP | |
| | | | (EACH INCLUDES) |
| 2A. | 276-7478 | [1] | BUSHING | |
| 2B. | 323-9312M | [2] | BOLT(M10X1X50-MM) | |
| 3. | 124-3536 | [8] | RING-RETAINING | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 360-3986B | [1] | KIT-BEARING(CONNECTING ROD)(STANDARD) | |
| | | | (INCLUDES BEARINGS) |
| | 468-7762AB | [1] | KIT-BEARING(0.254-MM US) | |
| | | | (INCLUDES BEARINGS) |
| | 468-7769AB | [1] | KIT-BEARING(0.508-MM US) | |
| | | | (INCLUDES BEARINGS) |
| | 468-7770AB | [1] | KIT-BEARING(0.762-MM US) | |
| | | | (INCLUDES BEARINGS) |
| | 421-7760ABL | [1] | KIT-PISTON(0.5-MM OS) | |
| | | | (INCLUDES PISTON, PIN, & RINGS) |
| | 421-7763ABL | [1] | KIT-PISTON(1-MM OS) | |
| | | | (INCLUDES PISTON, PIN, & RINGS) |
| | 464-0959BL | [1] | KIT-PISTON(STANDARD) | |
| | | | (INCLUDES PISTON, PIN, & RINGS) |
| | A | | NOT PART OF THIS GROUP |
| | B | | USE AS REQUIRED |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | M | | METRIC PART |
