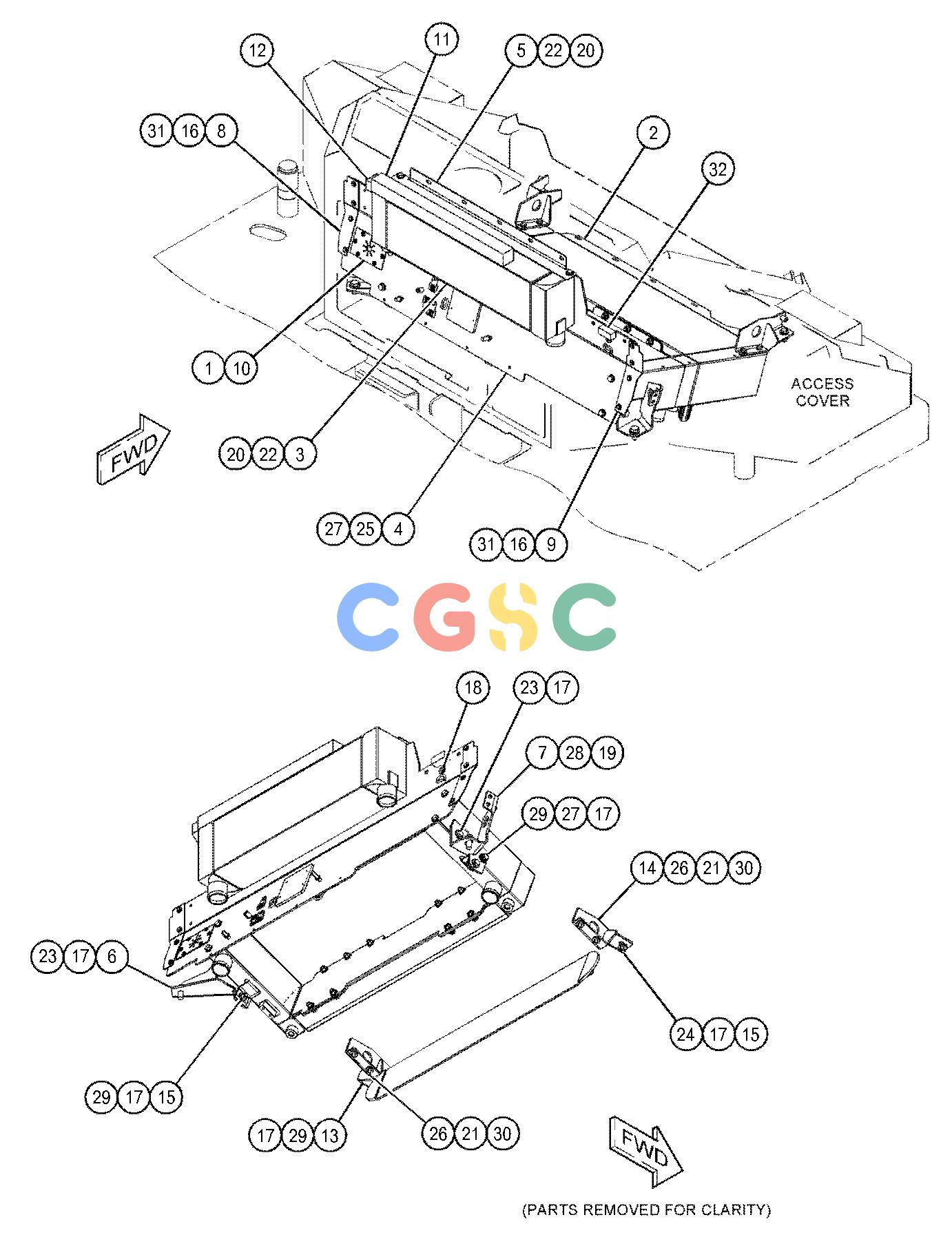

卡特零件查询（AP500F） 443-2077: COOLING GP
广数供应链运营团队, 17 02月, 2025，浏览：
666 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 234-0091 | [6] | RIVET | |
| 2. | 453-9437Y | [1] | RADIATOR & HYD OIL COOLER GP | |
| 3. | 453-9438 | [1] | CORE AS-AFTERCOOLER | |
| 4. | 453-9439 | [1] | PLATE AS | |
| | 6V-9632M | [8] | NUT-WELD(M6X1-THD) | |
| | 7T-1099 | [3] | LINK | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3635M | [1] | STUD-WELD(M12X1.75X34.93-MM) | |
| | 361-5420 | [4] | CLIP | |
| 5. | 453-9440 | [1] | PLATE | |
| 6. | 453-9441 | [1] | PLATE AS | |
| 7. | 453-9442 | [1] | PLATE AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3612M | [1] | NUT-WELD(M8X1.25-THD) | |
| 8. | 453-9443 | [1] | COVER-RUBBER | |
| 9. | 453-9451 | [1] | COVER-RUBBER | |
| 10. | 453-9454 | [1] | COVER-RUBBER | |
| 11. | 460-4776 | [1] | FOAM | |
| 12. | 460-4777 | [1] | FOAM | |
| 13. | 474-5392 | [1] | PLATE AS | |
| 14. | 474-5393 | [1] | PLATE AS | |
| 15. | 329-3356M | [3] | NUT(M12X1.75-THD) | |
| 16. | 5C-9553M | [8] | BOLT(M6X1X16-MM) | |
| 17. | 5P-1076 | [11] | WASHER-HARD(13.5X30X4-MM THK) | |
| 18. | 5P-8522 | [1] | GROMMET | |
| 19. | 7X-0515 | [2] | WASHER-HARD(17X35X5-MM THK) | |
| 20. | 7X-7729 | [6] | WASHER(11X25X3-MM THK) | |
| 21. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 22. | 8T-4137M | [6] | BOLT(M10X1.5X20-MM) | |
| 23. | 8T-4139M | [3] | BOLT(M12X1.75X30-MM) | |
| 24. | 8T-4183M | [1] | BOLT(M12X1.75X40-MM) | |
| 25. | 8T-4192M | [4] | BOLT(M12X1.75X25-MM) | |
| 26. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 27. | 8T-4223 | [5] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 28. | 8T-4779M | [2] | BOLT(M16X2X35-MM) | |
| 29. | 8T-4956M | [4] | BOLT(M12X1.75X35-MM) | |
| 30. | 8T-7971 | [4] | WASHER-HARD(13.5X25.5X5-MM THK) | |
| 31. | 9X-2038 | [8] | WASHER(7X19X2-MM THK) | |
| 32. | 5P-5649E | | SEAL-BULK(0.1-M) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
