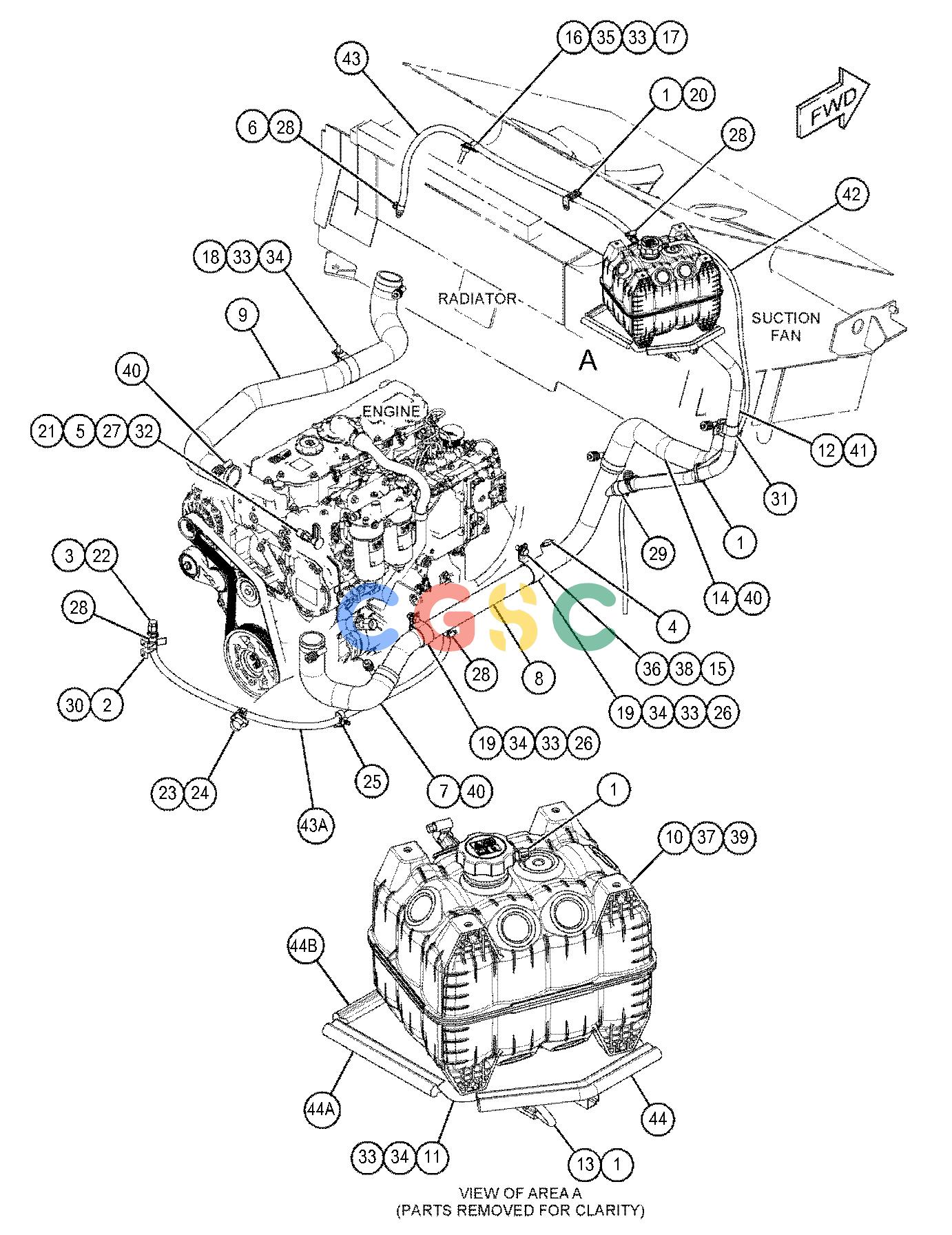

卡特零件查询（AP500F） 453-9425: LINES GP-COOLANT
广数供应链运营团队, 17 02月, 2025，浏览：
999 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7K-1181 | [5] | STRAP-CABLE | |
| 2. | 206-4530 | [1] | CLIP(SPRING) | |
| 3. | 269-6650 | [1] | ADAPTER | |
| 4. | 341-0087 | [1] | PLUG AS | |
| | 6V-6609 | [1] | SEAL-O-RING | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 5. | 377-9603 | [1] | VALVE AS-FLUID SAMPLING(COOLANT) | |
| | 6V-9027 | [1] | SEAL-O-RING | |
| | 154-9023 | [1] | VALVE-SAMPLING | |
| 6. | 451-0450 | [1] | ADAPTER AS | |
| | 6V-9027 | [1] | SEAL-O-RING | |
| | 092-6629 | [1] | ADAPTER | |
| 7. | 453-9380 | [1] | HOSE-RADIATOR | |
| 8. | 453-9382 | [1] | TUBE AS | |
| 9. | 453-9384 | [1] | HOSE-RADIATOR | |
| 10. | 453-9385 | [1] | TANK GP-COOLANT | |
| | 345-1237 | [1] | CAP AS-COOLANT TANK | |
| | 461-4326 | [1] | SENSOR-LEVEL(COOLANT) | |
| 11. | 453-9387 | [1] | PLATE AS | |
| 12. | 459-8472 | [1] | HOSE-RADIATOR | |
| 13. | 463-1792 | [1] | HARNESS AS-CHASSIS(COOLANT LEVEL) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 9X-3401 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1767 | [2] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 329-3734E | | TAPE-ELECTRICAL(23-CM) | |
| | 432-9270 | [2] | TERMINAL(18-GA TO 20-GA) | |
| 14. | 482-0184 | [1] | HOSE-RADIATOR | |
| 15. | 482-0186 | [1] | PLATE | |
| 16. | 067-2551 | [1] | CLIP | |
| 17. | 091-0081 | [1] | SPACER(10.5X20X10-MM THK) | |
| 18. | 104-3173 | [1] | CLIP | |
| 19. | 105-1866 | [2] | CLIP | |
| 20. | 132-5789 | [1] | CLIP(LADDER) | |
| 21. | 157-0670 | [1] | CAP-DUST | |
| 22. | 165-4934 | [1] | PLUG AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9508 | [1] | PLUG(11/16-16-THD) | |
| 23. | 200-6345 | [1] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 24. | 204-2281 | [2] | STRAP-CABLE | |
| 25. | 327-0325 | [1] | STRAP-CABLE | |
| 26. | 344-5675M | [2] | NUT(M10X1.5-THD) | |
| 27. | 351-0274 | [1] | ADAPTER AS | |
| | 5P-9617 | [1] | ADAPTER | |
| | 6V-3250 | [1] | SEAL-O-RING | |
| 28. | 5P-4961 | [4] | CLAMP-HOSE | |
| 29. | 7X-7958 | [1] | CLAMP-HOSE | |
| 30. | 8C-7581M | [2] | SCREW-MACHINE(M4X0.7X8-MM) | |
| 31. | 8D-9947 | [1] | CLIP | |
| 32. | 8T-3285 | [1] | ADAPTER | |
| 33. | 8T-4121 | [9] | WASHER-HARD(11X21X2.5-MM THK) | |
| 34. | 8T-4136M | [5] | BOLT(M10X1.5X25-MM) | |
| 35. | 8T-4185M | [1] | BOLT(M10X1.5X50-MM) | |
| 36. | 8T-4192M | [2] | BOLT(M12X1.75X25-MM) | |
| 37. | 8T-4200M | [4] | BOLT(M8X1.25X16-MM) | |
| 38. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 39. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 40. | 8T-4984 | [6] | CLAMP-HOSE | |
| 41. | 9M-7958 | [1] | CLAMP-HOSE | |
| 42. | 8C-3681E | | HOSE(172-CM) | |
| 43. | 6V-8523E | | HOSE(116-CM) | |
| 43A. | 6V-8523E | | HOSE(106-CM) | |
| 44. | 5P-7211D | | SEAL(0.23-M) | |
| 44A. | 5P-7211D | | SEAL(0.17-M) | |
| 44B. | 5P-7211D | | SEAL(0.13-M) | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
