卡特零件查询（AP500F） 443-2080: AIR CLEANER GP
广数供应链运营团队, 17 02月, 2025，浏览：
728 次

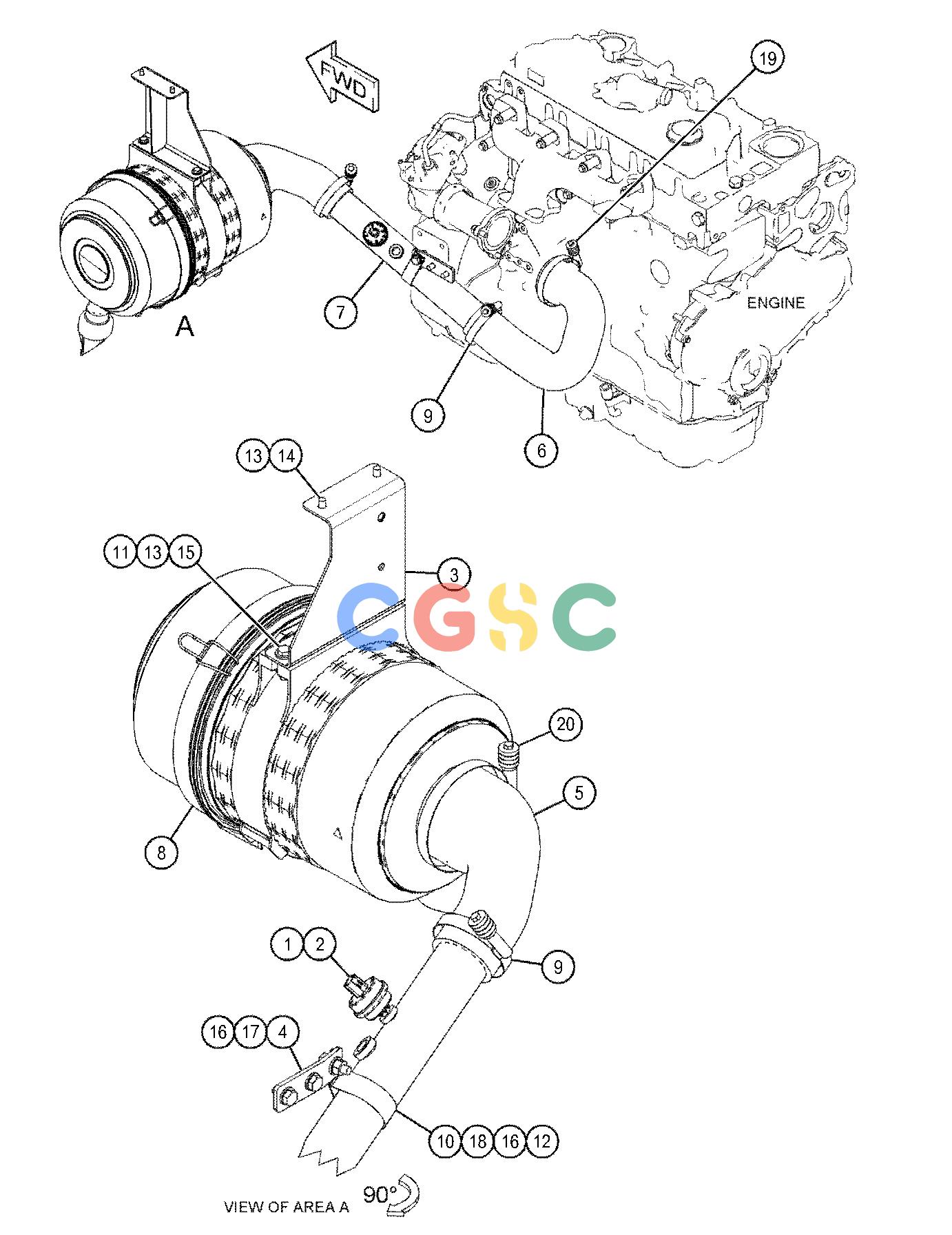

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5L-3233 | [1] | FITTING-CONNECTOR | |
| 2. | 363-0591 | [1] | INDICATOR AS-AIR FILTER CHANGE | |
| 3. | 453-9373 | [1] | PLATE AS | |
| | 8T-3612M | [1] | NUT-WELD(M8X1.25-THD) | |
| 4. | 453-9374 | [1] | PLATE | |
| 5. | 453-9375 | [1] | HOSE-AIR INLET | |
| 6. | 453-9376 | [1] | HOSE-AIR INLET | |
| 7. | 453-9378 | [1] | TUBE AS | |
| 8. | 457-1645Y | [1] | AIR CLEANER GP(INTAKE AIR) | |
| 9. | 144-0367 | [2] | CLAMP-HOSE | |
| 10. | 2S-7010 | [1] | CLIP | |
| 11. | 344-5674M | [2] | NUT(M8X1.25-THD) | |
| 12. | 344-5675M | [1] | NUT(M10X1.5-THD) | |
| 13. | 5P-4116 | [6] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 14. | 7X-2536M | [2] | BOLT(M8X1.25X14-MM) | |
| 15. | 7X-2537M | [2] | BOLT(M8X1.25X35-MM) | |
| 16. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 17. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 18. | 8T-4195M | [1] | BOLT(M10X1.5X30-MM) | |
| 19. | 8T-4985 | [1] | CLAMP-HOSE | |
| 20. | 8T-4986 | [1] | CLAMP-HOSE | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
