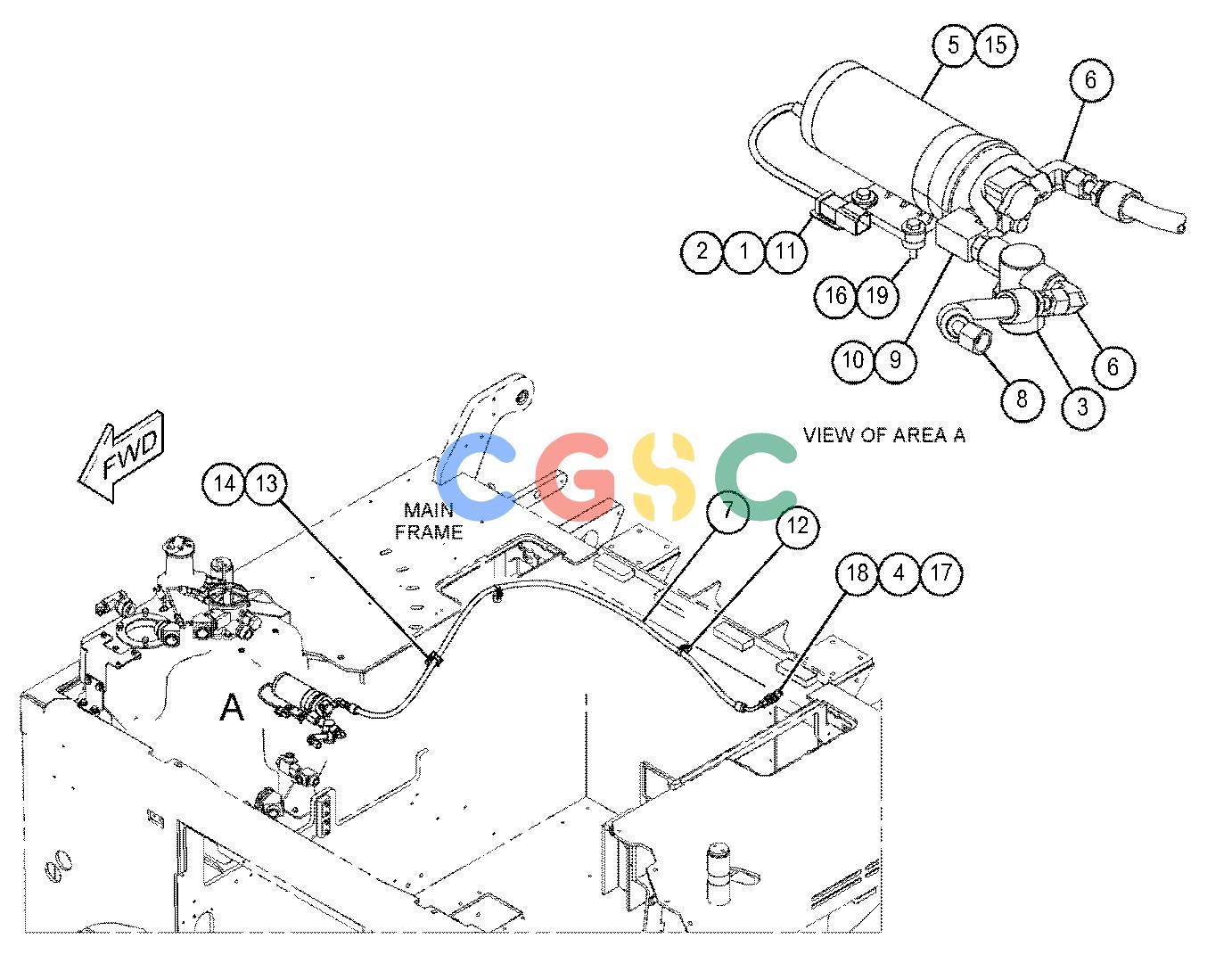

卡特零件查询（AP500F） 449-9195: WASHDOWN GP-ECOLOGY
广数供应链运营团队, 17 02月, 2025，浏览：
776 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 2. | 126-1767 | [2] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| 3. | 140-3562 | [1] | STRAINER | |
| 4. | 377-9586 | [1] | ELBOW AS | |
| | 6V-8987 | [1] | ELBOW | |
| | 228-7089 | [2] | SEAL-O-RING | |
| 5. | 428-3734Y | [1] | PUMP & MOTOR GP-WASHDOWN | |
| 6. | 448-9014 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 2T-1925 | [1] | ELBOW | |
| | 228-7089 | [1] | SEAL-O-RING | |
| 7. | 449-9190 | [1] | HOSE AS | |
| 8. | 449-9193 | [1] | HOSE AS | |
| 9. | 003-2143 | [1] | ELBOW | |
| 10. | 004-6683 | [1] | FITTING | |
| 11. | 130-5300 | [1] | CLIP | |
| 12. | 177-2215 | [2] | STRAP-DUAL CLAMP | |
| 13. | 200-6345 | [1] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 14. | 204-2281 | [2] | STRAP-CABLE | |
| 15. | 9X-1813E | | SLEEVE(28-CM) | |
| 16. | 5P-4115 | [4] | WASHER-HARD(7.2X19X2-MM THK) | |
| 17. | 6V-9168 | [1] | NUT(11/16-16-THD) | |
| 18. | 6V-9829 | [1] | CAP(ORFS) | |
| 19. | 8T-4971M | [4] | BOLT(M6X1X30-MM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
