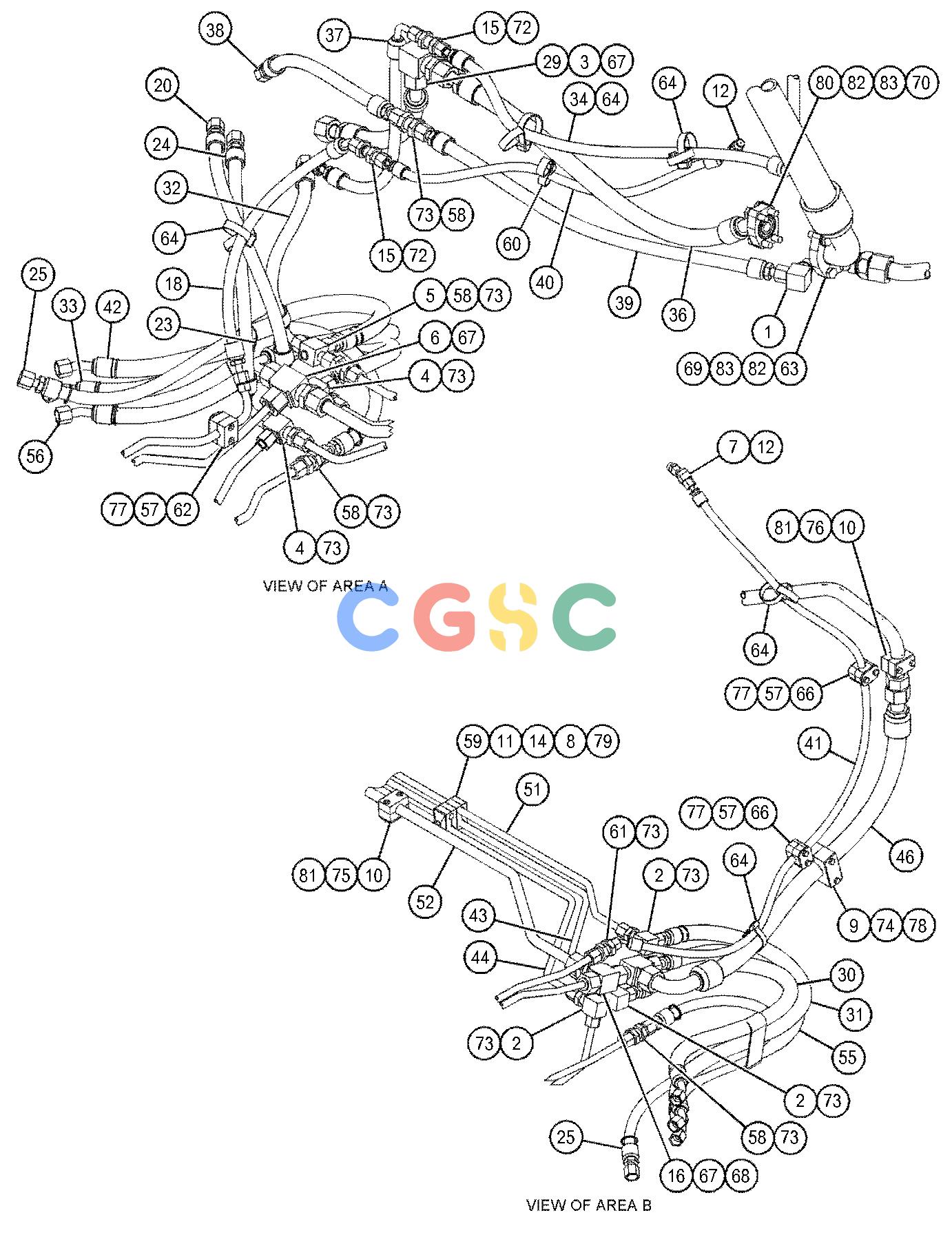

卡特零件查询（AP500F） 447-9879: LINES GP-PROPEL
广数供应链运营团队, 17 02月, 2025，浏览：
347 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 148-8364 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8625 | [1] | ELBOW | |
| 2. | 148-8375 | [3] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8981 | [1] | ELBOW | |
| 3. | 148-8376 | [1] | ELBOW AS | |
| | 6V-8983 | [1] | ELBOW | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| 4. | 148-8427 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [3] | SEAL-O-RING | |
| | 8T-6895 | [1] | TEE-UNION | |
| 5. | 148-8444 | [1] | TEE AS-SWIVEL | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-9837 | [1] | TEE-SWIVEL | |
| 6. | 164-6862 | [1] | TEE AS | |
| | 6V-9160 | [1] | TEE-FACE SEAL | |
| | 6V-9746 | [3] | SEAL-O-RING | |
| 7. | 187-2120 | [1] | ELBOW AS | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8C-8408 | [1] | ELBOW | |
| 8. | 154-4890M | [1] | BOLT-STACKING(M8X1.25X33-MM) | |
| 9. | 7R-7951 | [1] | PLATE | |
| 10. | 7V-5628 | [2] | PLATE(TOP) | |
| 11. | 102-8703 | [1] | PLATE-COVER | |
| 12. | 164-9639 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 148-7925 | [1] | CONNECTOR | |
| 13. | 168-0360 | [1] | VALVE AS-CHECK(AXLE OIL COOLER BYPASS) | |
| | 5K-9090 | [1] | SEAL-O-RING(ORFS) | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 14. | 206-0452 | [1] | PLATE | |
| 15. | 213-2265 | [2] | UNION AS(ORFS) | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 150-0128 | [1] | UNION | |
| 16. | 241-6207 | [1] | TEE AS | |
| | 6V-9746 | [3] | SEAL-O-RING | |
| | 132-5152 | [1] | TEE-UNION | |
| 17. | 250-2783 | [1] | STRAINER AS(SUCTION) | |
| | 030-4606 | [1] | SEAL-O-RING | |
| 18. | 346-8414I | [1] | HOSE AS | |
| 19. | 350-2960I | [2] | HOSE AS | |
| 20. | 351-8062I | [1] | HOSE AS | |
| 21. | 352-5113I | [2] | HOSE AS | |
| 22. | 352-5131I | [4] | HOSE AS | |
| 23. | 364-4569 | [4] | STRAP | |
| 24. | 374-7656I | [1] | HOSE AS | |
| 25. | 423-4828I | [2] | HOSE AS | |
| 26. | 423-4842 | [1] | TUBE AS | |
| 27. | 423-4844 | [1] | TUBE AS | |
| 28. | 423-4848 | [1] | TUBE AS | |
| 29. | 438-9209I | [1] | HOSE AS | |
| 30. | 441-1203I | [1] | HOSE AS | |
| 31. | 441-1204I | [1] | HOSE AS | |
| 32. | 444-1035I | [1] | HOSE AS | |
| 33. | 444-1058I | [1] | HOSE AS | |
| 34. | 460-1659I | [1] | HOSE AS | |
| 35. | 460-9651I | [1] | HOSE AS | |
| 36. | 460-9652I | [1] | HOSE AS | |
| 37. | 460-9653I | [1] | HOSE AS | |
| 38. | 460-9654I | [1] | HOSE AS | |
| 39. | 460-9655I | [1] | HOSE AS | |
| 40. | 460-9656I | [1] | HOSE AS | |
| 41. | 499-1886I | [1] | HOSE AS | |
| 42. | 460-9659I | [1] | HOSE AS | |
| 43. | 460-9660 | [1] | TUBE AS | |
| 44. | 460-9661 | [1] | TUBE AS | |
| 45. | 460-9662I | [1] | HOSE AS | |
| 46. | 460-9663I | [1] | HOSE AS | |
| 47. | 460-9664 | [1] | TUBE AS | |
| 48. | 460-9665 | [1] | TUBE AS | |
| 49. | 460-9666 | [1] | TUBE AS | |
| 50. | 460-9667 | [1] | TUBE AS | |
| 51. | 460-9668 | [1] | TUBE AS | |
| 52. | 460-9669 | [1] | TUBE AS | |
| 53. | 460-9670 | [1] | TUBE AS | |
| 54. | 460-9671 | [1] | TUBE AS | |
| 55. | 467-5678I | [1] | HOSE AS | |
| 56. | 467-5679I | [1] | HOSE AS | |
| 57. | 107-4749 | [3] | PLATE(TOP) | |
| 58. | 148-8457 | [12] | UNION AS(STRAIGHT) | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8995 | [1] | UNION(STRAIGHT) | |
| 59. | 154-4879 | [4] | CLAMP-HALF | |
| 60. | 178-3620 | [2] | STRAP-DUAL CLAMP | |
| 61. | 185-3365 | [1] | UNION AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8T-0129 | [1] | UNION | |
| 62. | 1G-8781 | [2] | CLAMP(HALF)(HALF) | |
| 63. | 1P-4578 | [2] | FLANGE-HALF | |
| 64. | 204-2281 | [9] | STRAP-CABLE | |
| 65. | 204-9379 | [1] | ELBOW AS | |
| | 6K-6307 | [1] | SEAL-O-RING | |
| | 8T-0315 | [1] | SEAL-O-RING | |
| | 204-9378 | [1] | ELBOW | |
| 66. | 206-6418 | [4] | CLAMP-HALF | |
| 67. | 2P-1293 | [3] | LOCKNUT(1-3/16-12-THD) | |
| 68. | 329-5530 | [1] | TEE AS | |
| | 9X-2235 | [1] | TEE-SWIVEL | |
| | 228-7092 | [1] | SEAL-O-RING | |
| | 228-7093 | [1] | SEAL-O-RING | |
| 69. | 4J-0522 | [1] | SEAL-O-RING | |
| 70. | 4J-5267 | [1] | SEAL-O-RING | |
| 71. | 6V-8397 | [1] | SEAL-O-RING(ORFS) | |
| 72. | 6V-9168 | [2] | NUT(11/16-16-THD) | |
| 73. | 6V-9169 | [18] | NUT(13/16-16-THD) | |
| 74. | 7R-7941 | [2] | CLAMP(TUBE) | |
| 75. | 7V-5626 | [2] | CLAMP | |
| 76. | 7V-6089 | [2] | CLAMP | |
| 77. | 7X-2533M | [6] | BOLT(M6X1X35-MM) | |
| 78. | 7X-2535M | [2] | BOLT(M6X1X60-MM) | |
| 79. | 7X-2537M | [1] | BOLT(M8X1.25X35-MM) | |
| 80. | 8C-3205 | [2] | FLANGE-HALF | |
| 81. | 8C-8451M | [4] | BOLT(M6X1X40-MM) | |
| 82. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 83. | 8T-4196M | [8] | BOLT(M10X1.5X35-MM) | |
| 84. | 5K-9090 | [1] | SEAL-O-RING(ORFS) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
