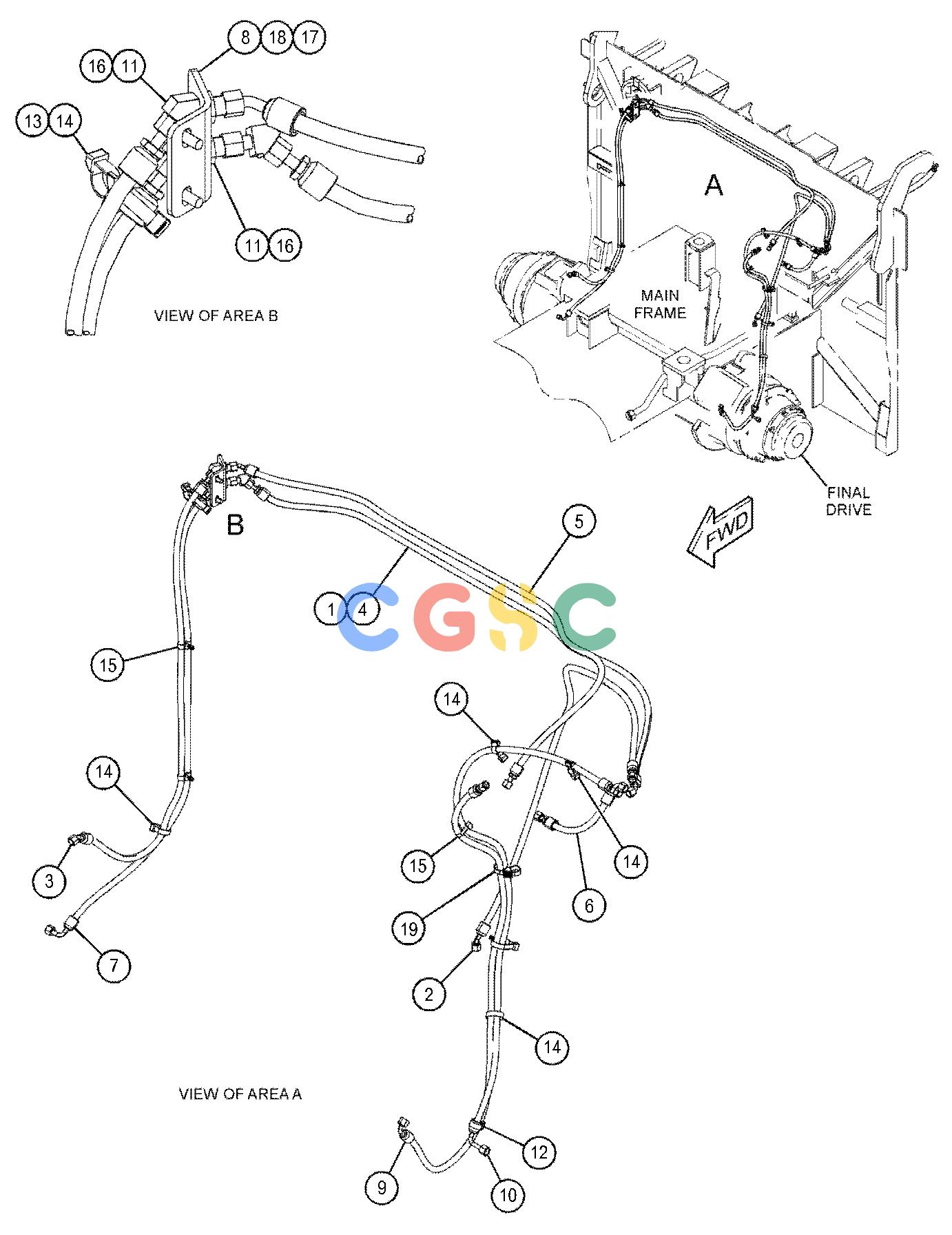

卡特零件查询（AP500F） 447-9853: LINES GP-APRON
广数供应链运营团队, 17 02月, 2025，浏览：
590 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 102-8703 | [5] | PLATE-COVER | |
| 2. | 460-9697 | [1] | TUBE AS | |
| 3. | 460-9698 | [1] | TUBE AS | |
| 4. | 423-4873I | [2] | HOSE AS | |
| 5. | 423-4874I | [2] | HOSE AS | |
| 6. | 445-7502I | [1] | HOSE AS | |
| 7. | 453-2626I | [1] | HOSE AS | |
| 8. | 460-9642I | [1] | HOSE AS | |
| 9. | 460-9643I | [1] | HOSE AS | |
| 10. | 460-9699 | [1] | TUBE AS | |
| 11. | 460-9700 | [1] | TUBE AS | |
| 12. | 467-5644 | [1] | TUBE AS | |
| 13. | 467-5645 | [1] | TUBE AS | |
| 14. | 467-5646 | [1] | TUBE AS | |
| 15. | 467-5647 | [1] | TUBE AS | |
| 16. | 148-8377 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8980 | [1] | ELBOW | |
| 17. | 153-6246 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [3] | SEAL-O-RING | |
| | 7X-0820 | [1] | TEE | |
| 18. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| 19. | 206-6409 | [10] | CLAMP-HALF | |
| 20. | 6V-8397 | [6] | SEAL-O-RING | |
| 21. | 6V-9168 | [4] | NUT(11/16-16-THD) | |
| 22. | 7X-2537M | [5] | BOLT(M8X1.25X35-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
