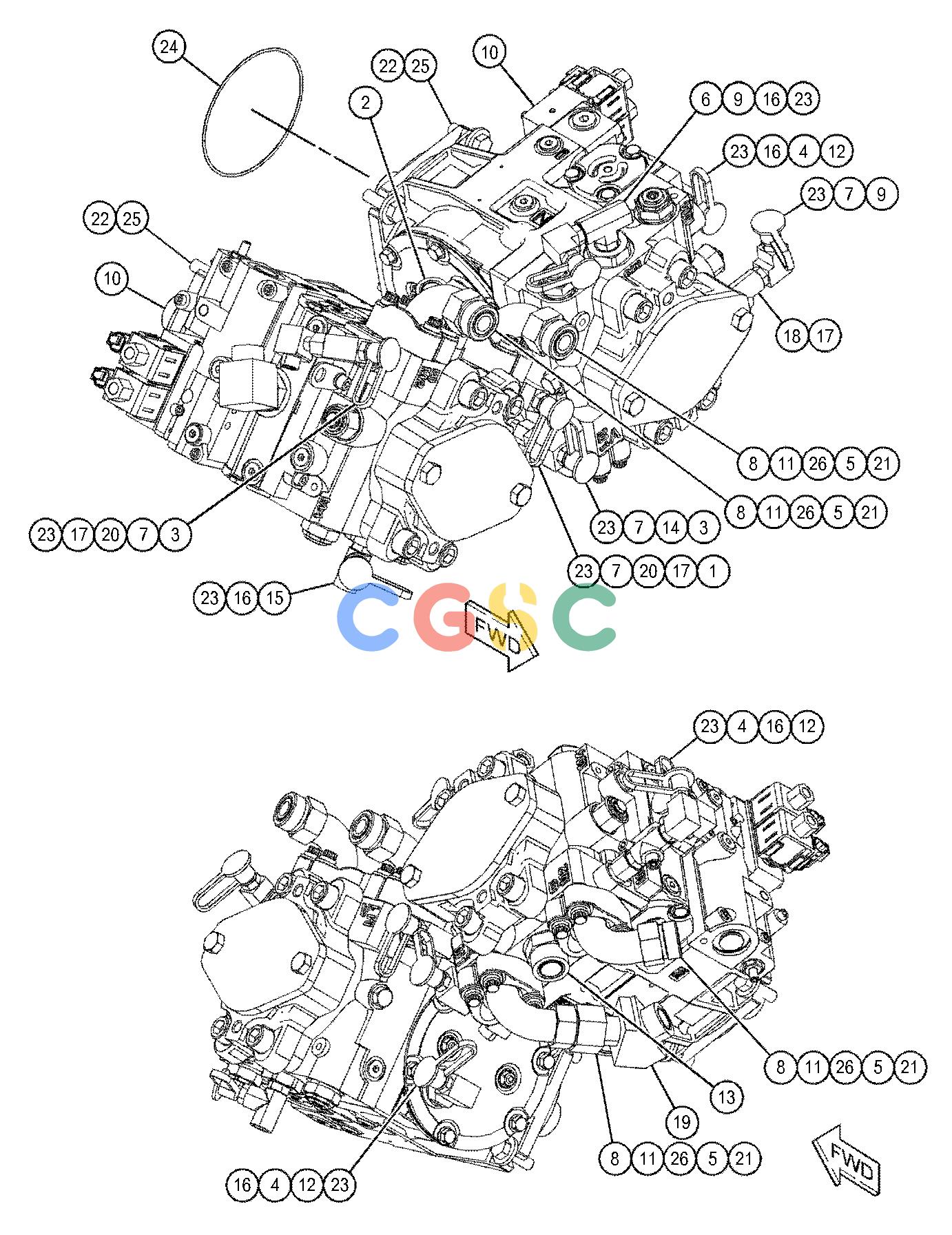

卡特零件查询（AP500F） 447-9805: PUMP & MTG GP-PROPEL
广数供应链运营团队, 17 02月, 2025，浏览：
612 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 148-8371 | [1] | ELBOW AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8C-8988 | [1] | ELBOW | |
| 2. | 148-8347 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9007 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 3. | 148-8367 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9850 | [1] | ELBOW | |
| 4. | 150-3065 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-0484 | [1] | ELBOW | |
| 5. | 9X-6495 | [16] | BOLT-12 POINT HEAD(7/16-14X1.75-IN) | |
| 6. | 150-3058 | [1] | TEE AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 8C-8431 | [1] | TEE | |
| 7. | 187-3547 | [4] | COUPLER AS-QUICK DISCONNECT | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 8. | 210-2041 | [4] | FITTING AS | |
| | | | (EACH INCLUDES) |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 7X-9733 | [1] | FITTING | |
| 9. | 241-6215 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8076 | [1] | ELBOW | |
| 10. | 396-7171Y | [2] | PUMP GP-PISTON | |
| 11. | 124-4288 | [8] | FLANGE-SPLIT | |
| 12. | 148-8309 | [2] | ADAPTER AS | |
| | | | (EACH INCLUDES) |
| | 2P-8421 | [1] | ADAPTER-O-RING | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| 13. | 148-8335 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-8635 | [1] | CONNECTOR | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 14. | 148-8443 | [1] | TEE AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 7X-2459 | [1] | ADAPTER-TEE | |
| 15. | 164-5546 | [1] | TEE AS | |
| | 3E-7410 | [1] | TEE | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 16. | 164-5567 | [4] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | | | (EACH INCLUDES) |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 17. | 165-6365 | [3] | FITTING AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 7W-7381 | [1] | FITTING-OUTLET | |
| 18. | 165-7014 | [1] | TEE AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8C-3309 | [1] | TEE | |
| 19. | 177-1061 | [1] | ELBOW AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 142-0038 | [1] | ELBOW | |
| 20. | 315-9853 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 201-5502 | [1] | TEE | |
| 21. | 4J-0520 | [4] | SEAL-O-RING | |
| 22. | 5P-1076 | [8] | WASHER-HARD(13.5X30X4-MM THK) | |
| 23. | 6V-0852 | [8] | CAP-DUST | |
| 24. | 7J-6285 | [2] | SEAL-O-RING | |
| 25. | 8T-4956M | [8] | BOLT(M12X1.75X35-MM) | |
| 26. | 8T-5360 | [16] | WASHER(12X22.5X2.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
