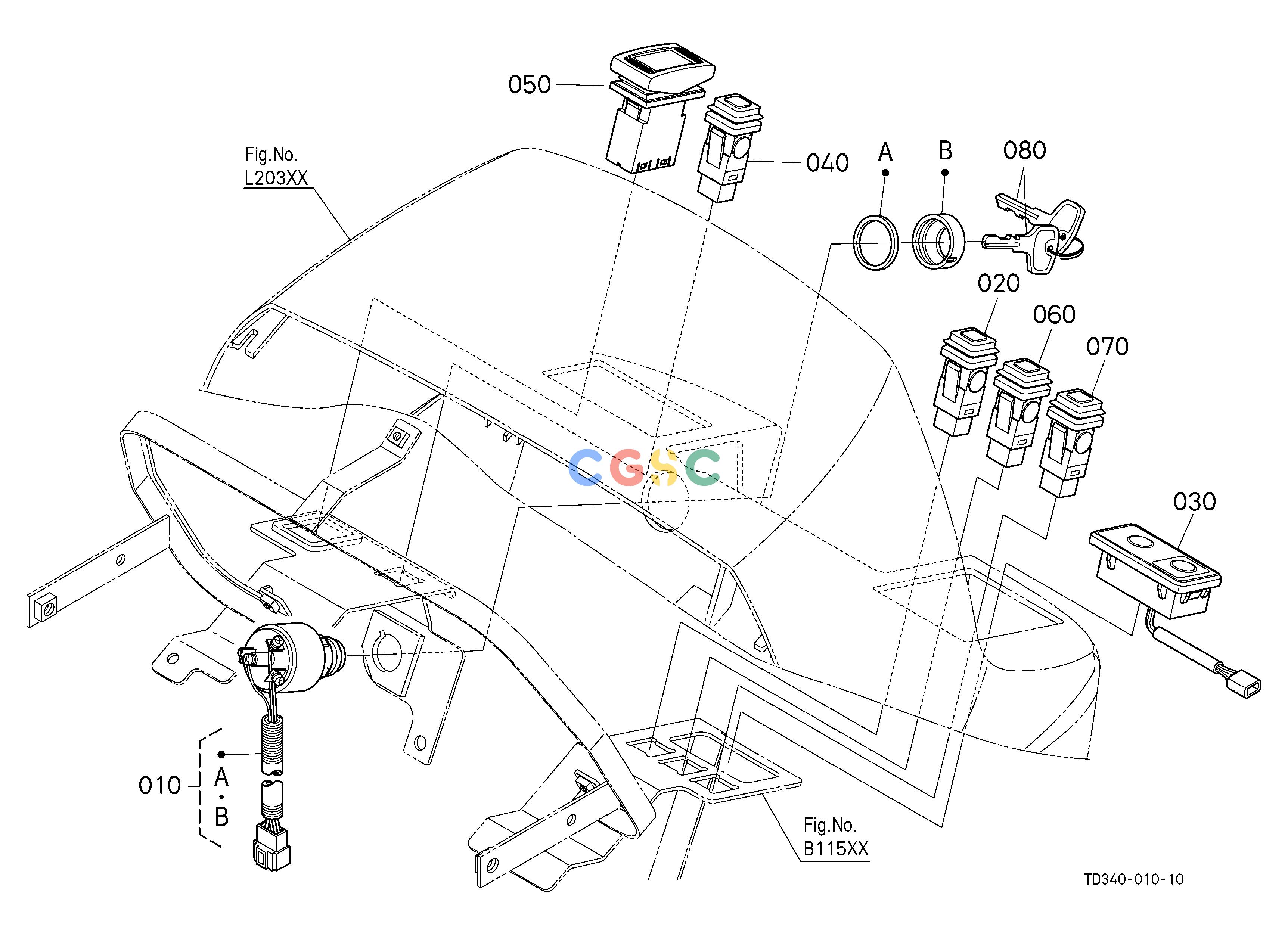

久保田零件查询B10502 SWITCH (PANEL) ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
330 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3467031824
|
[1] |
SWITCH,MAIN
|
0.5720(lbs); 0.260
|
| 020. |
3C00175040
|
[1] |
SWITCH,HAZARD
|
0.0330(lbs); 0.015
|
| 030. |
TD35032320
|
[1] |
SWITCH(CHANGE)
|
0.1210(lbs); 0.055
|
| 040. |
T127033782
|
[1] |
SWITCH(WORK LIGHT)
|
0.0440(lbs); 0.020
|
| 050. |
TD35055210
|
[1] |
SWITCH(CRUISE)
|
0.1210(lbs); 0.055
|
| 060. |
TD35033760
|
[1] |
SWITCH(DPF)
|
0.0440(lbs); 0.020
|
| 070. |
TD35033770
|
[1] |
SWITCH(DPF,AUTO)
|
0.0440(lbs); 0.020
|
| 070. |
TC65033770
|
[1] |
SWITCH(DPF,INHIBIT)
|
0.0396(lbs); 0.018
|
| 080. |
3526031852
|
[1] |
ASSY KEY,MAIN SWITCH
|
0.0440(lbs); 0.020
|
