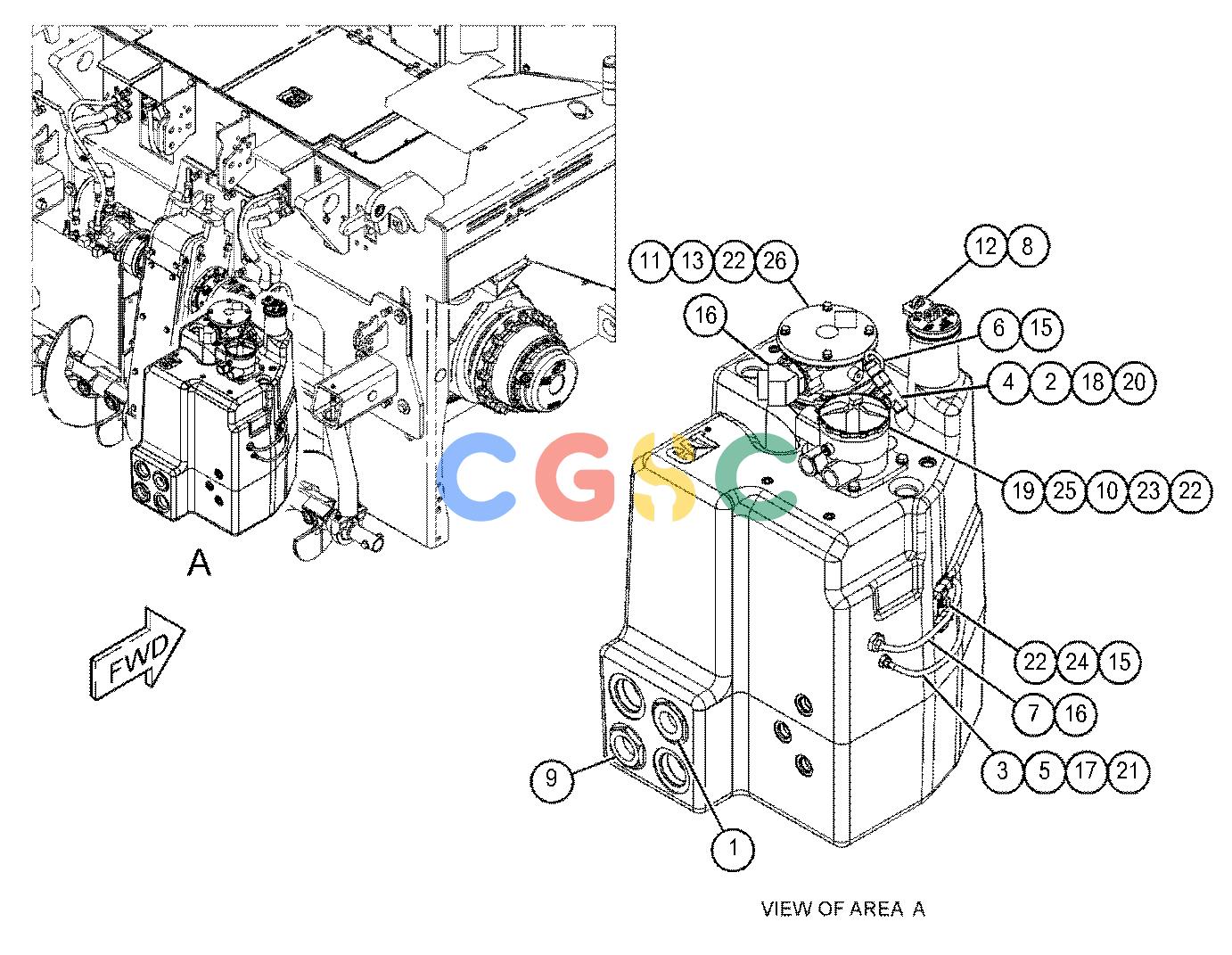

卡特零件查询（AP500F） 447-9837: TANK GP-HYDRAULIC
广数供应链运营团队, 17 02月, 2025，浏览：
286 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1G-7663 | [1] | STRAINER AS(HYDRAULIC OIL) | |
| | 030-4606 | [1] | SEAL-O-RING | |
| 2. | 8C-6863 | [1] | ADAPTER | |
| 3. | 145-7028Y | [1] | SENSOR GP-TEMPERATURE(HYDRAULIC OIL) | |
| 4. | 150-3058 | [1] | TEE AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 8C-8431 | [1] | TEE | |
| 5. | 164-3651 | [1] | ADAPTER | |
| 6. | 172-7071 | [1] | SWITCH GP-PRESSURE(HYDRAULIC OIL) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 7. | 418-6597 | [1] | SWITCH GP-LIQUID LEVEL(HYDRAULIC OIL) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 9X-3401 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 8. | 206-8818 | [1] | STRAINER | |
| 9. | 250-2783 | [1] | STRAINER AS(SUCTION) | |
| | 030-4606 | [1] | SEAL-O-RING | |
| 10. | 255-1193 | [1] | FILTER ELEMENT AS-OIL(HYDRAULIC TANK) | |
| | 281-4256 | [1] | FILTER ELEMENT AS-OIL(HYDRAULIC) | |
| | 287-3752 | [1] | SEAL-O-RING | |
| | 287-3753 | [1] | SEAL-O-RING | |
| | 369-4732 | [1] | SEAL-O-RING | |
| 11. | 309-5157 | [1] | GASKET | |
| 12. | 419-4904 | [1] | CAP-VENTED | |
| 13. | 422-6174Y | [1] | FILTER GP-OIL(HYDRAULIC TANK) | |
| 15. | 130-5300 | [3] | CLIP | |
| 16. | 204-9379 | [1] | ELBOW AS | |
| | 6K-6307 | [1] | SEAL-O-RING | |
| | 8T-0315 | [1] | SEAL-O-RING | |
| | 204-9378 | [1] | ELBOW | |
| 17. | 2M-9780 | [1] | SEAL-O-RING | |
| 18. | 3J-1907 | [2] | SEAL-O-RING | |
| 19. | 4P-7581 | [1] | CLIP(LADDER) | |
| 20. | 6V-9028 | [1] | SEAL-O-RING | |
| 21. | 7J-0204 | [1] | SEAL-O-RING | |
| 22. | 8T-4121 | [10] | WASHER-HARD(11X21X2.5-MM THK) | |
| 23. | 8T-4136M | [3] | BOLT(M10X1.5X25-MM) | |
| 24. | 8T-4191M | [1] | BOLT(M10X1.5X16-MM) | |
| 25. | 8T-4195M | [1] | BOLT(M10X1.5X30-MM) | |
| 26. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
