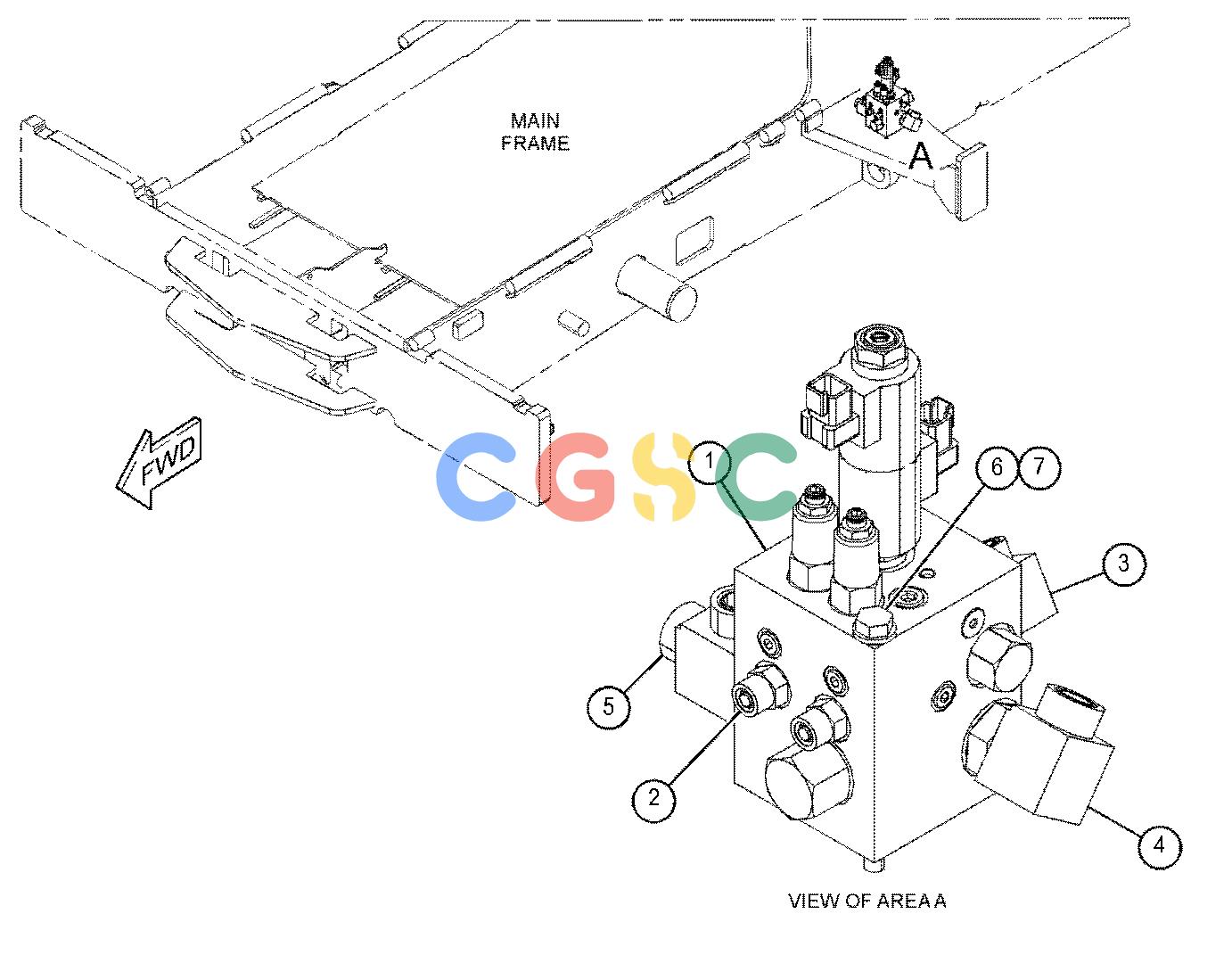

卡特零件查询（AP500F） 447-9821: VALVE & MTG GP-MANIFOLD
广数供应链运营团队, 17 02月, 2025，浏览：
664 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 396-6641Y | [1] | MANIFOLD GP-CONTROL | |
| 2. | 148-8336 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 3. | 148-8346 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8T-1686 | [1] | ADAPTER-ELBOW | |
| 4. | 148-8347 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9007 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 5. | 164-5578 | [1] | TEE AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9175 | [1] | TEE(FACE SEAL) | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 6. | 7X-2544M | [2] | BOLT(M10X1.5X140-MM) | |
| 7. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
