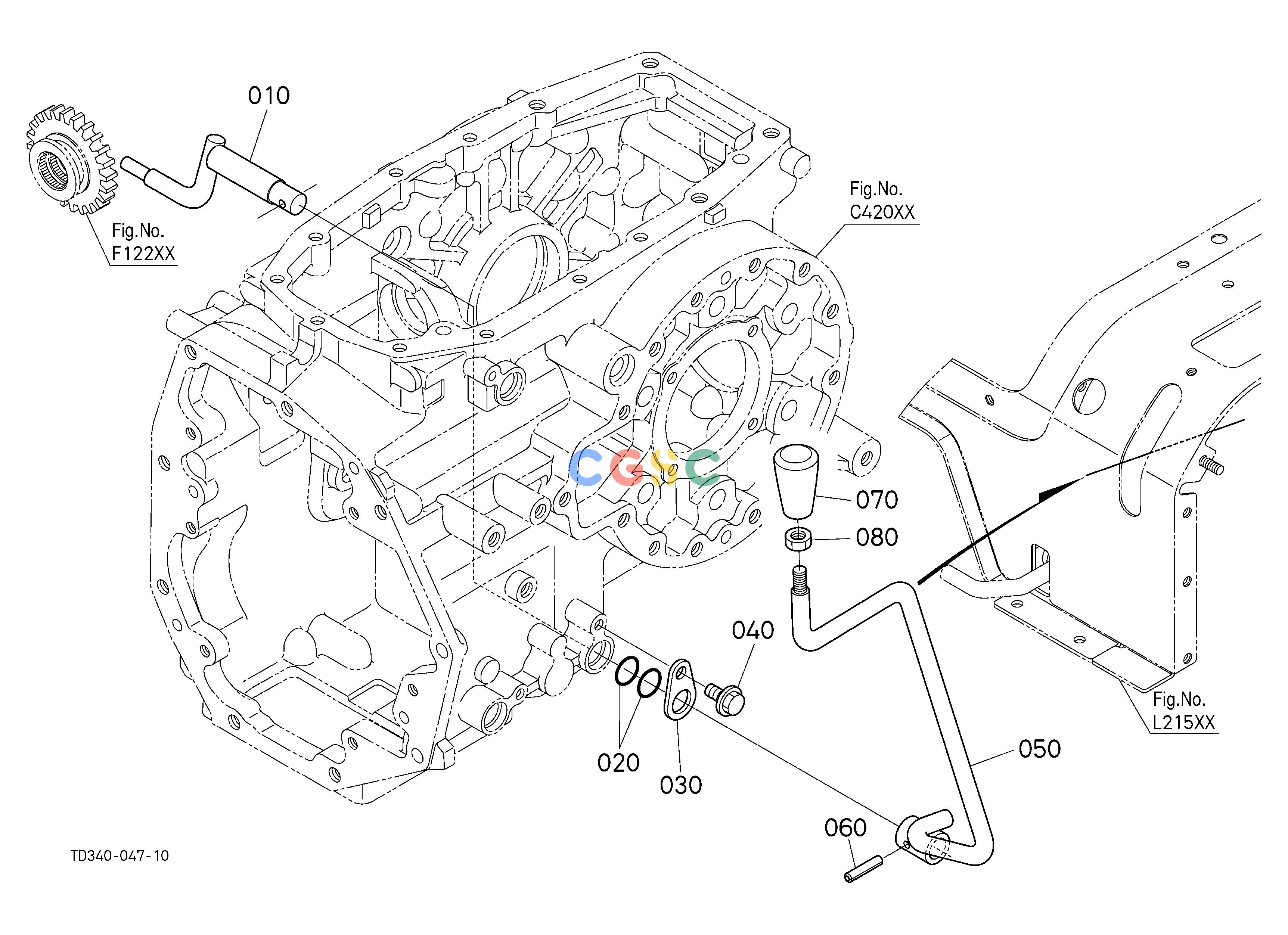

久保田零件查询E14002 FRONT WHEEL DRIVE LEVER SPEED CHANGE SHIFT FORK /SHIFT LEVEREPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
876 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD17015180
|
[1] |
LEVER,SHIFT
|
0.8580(lbs); 0.390
|
| 010. |
TD17015182
|
[1] |
LEVER,SHIFT
|
0.8580(lbs); 0.390
|
| 020. |
0481600200
|
[2] |
O RING
|
0.0066(lbs); 0.003
|
| 030. |
3407024350
|
[1] |
STOPPER
|
0.0440(lbs); 0.020
|
| 040. |
0175450812
|
[1] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
| 050. |
TD35015472
|
[1] |
LEVER(4WD CHANGE)
|
1.9800(lbs); 0.900
|
| 060. |
0541100630
|
[1] |
PIN,SPRING
|
0.0088(lbs); 0.004
|
| 070. |
TA04015480
|
[1] |
GRIP,LEVER
|
0.1166(lbs); 0.053
|
| 080. |
3040015210
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
