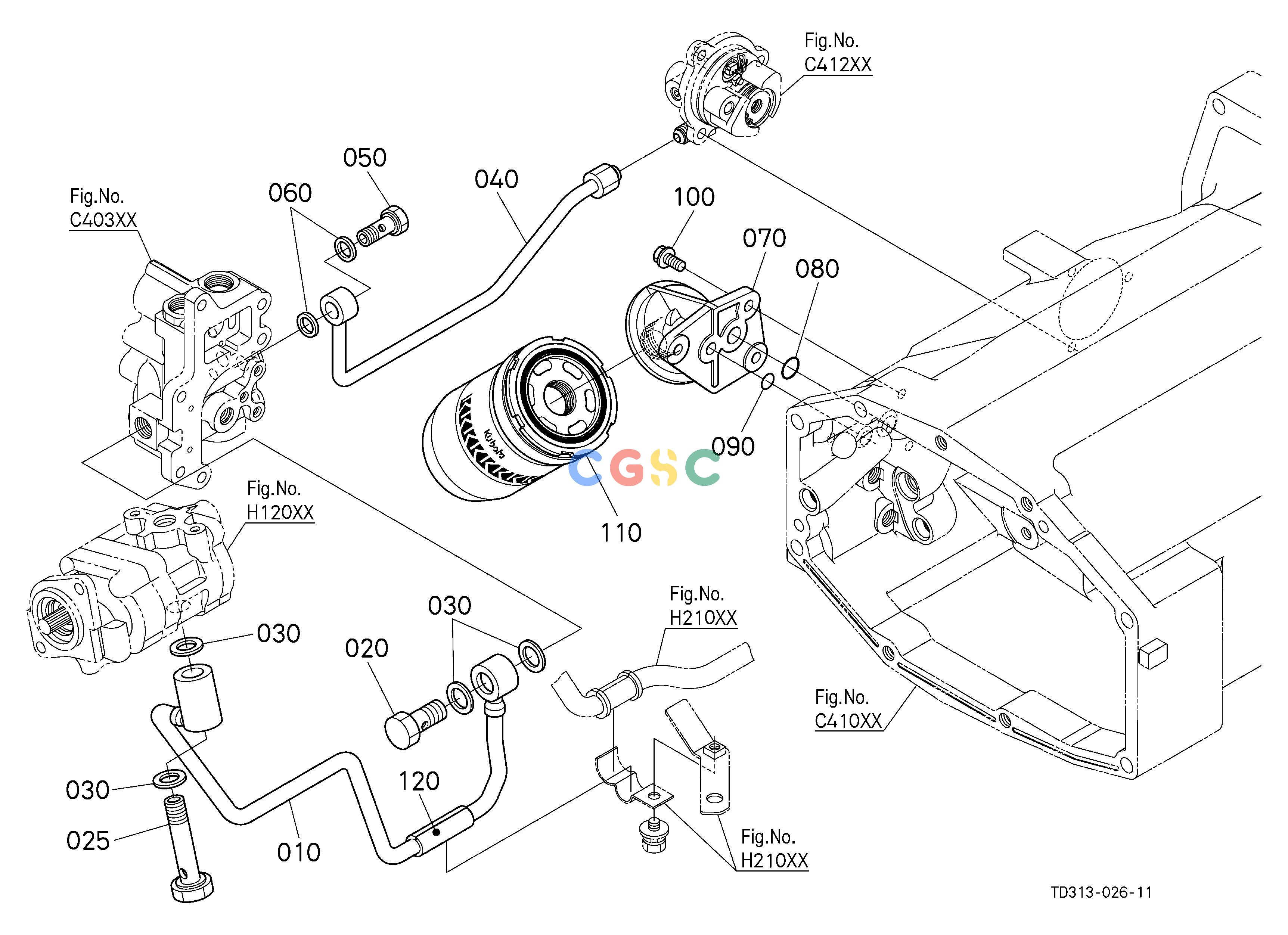

久保田零件查询H23003 HYDRAULIC OIL LINE (PTO) HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
244 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD12058270
|
[1] |
COMP.PIPE
|
1.0780(lbs); 0.490
|
| 020. |
6659136250
|
[1] |
JOINT
|
0.1760(lbs); 0.080
|
| 025. |
TD12056450
|
[1] |
JOINT
|
0.2530(lbs); 0.115
|
| 030. |
6711137180
|
[4] |
GASKET
|
0.0066(lbs); 0.003
|
| 040. |
TD27056212
|
[1] |
COMP.PIPE,PTO
|
0.2860(lbs); 0.130
|
| 050. |
TA04069402
|
[1] |
ASSY BOLT
|
0.0990(lbs); 0.045
|
| 060. |
0471400200
|
[2] |
PACKING
|
0.0044(lbs); 0.002
|
| 070. |
TD35056100
|
[1] |
BRACKET(FILTER)
|
0.7700(lbs); 0.350
|
| 080. |
0481700180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 090. |
0481700140
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 100. |
0175450816
|
[3] |
BOLT,FLANGE
|
0.0242(lbs); 0.011
|
| 110. |
HHTA059900
|
[1] |
FILTER(CARTRIDGE,OIL)
|
2.0680(lbs); 0.940
|
| 120. |
TD06033592
|
[1] |
PIPE,RUBBER
|
0.0110(lbs); 0.005
|
