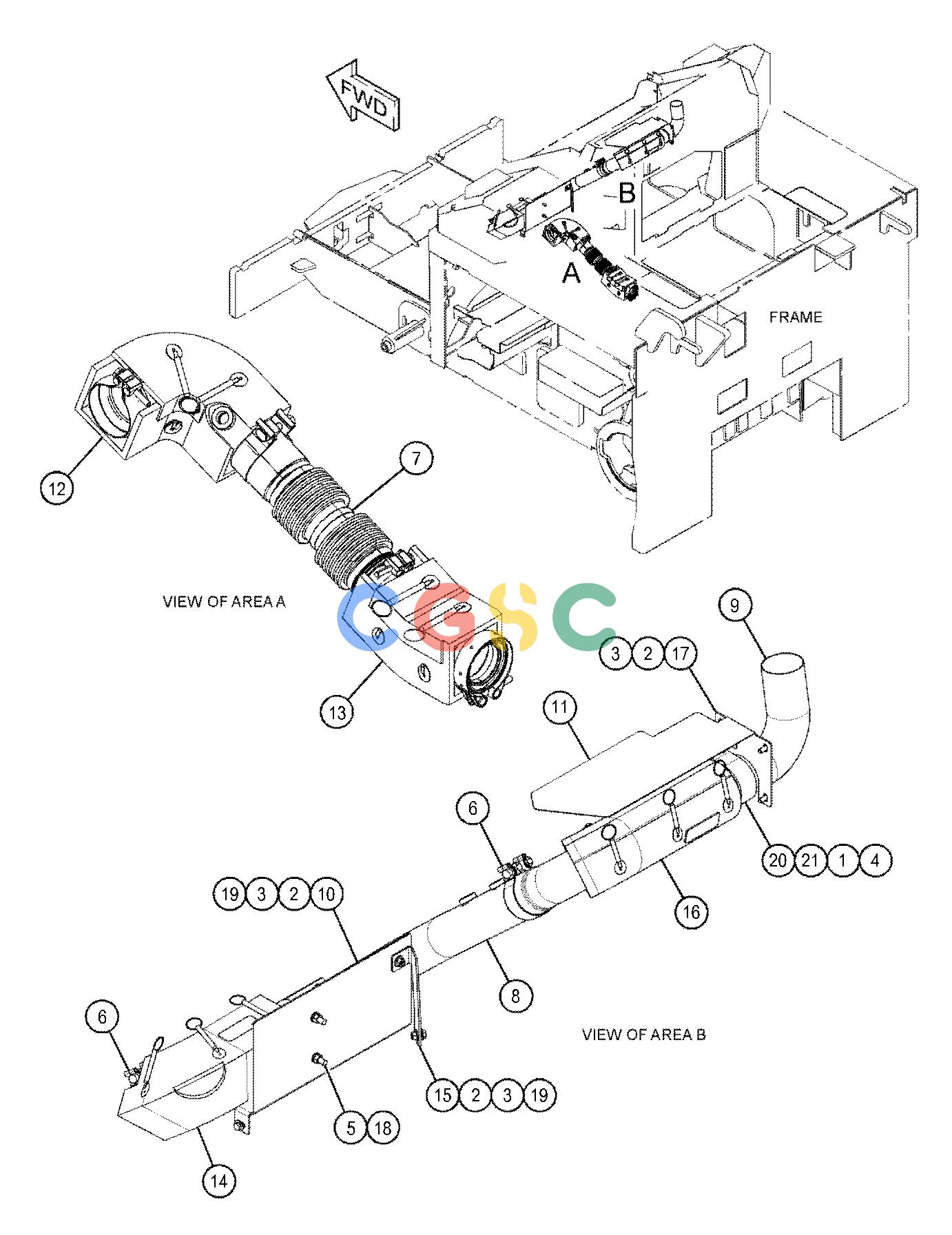

卡特零件查询（AP500F） 443-2088: LINES GP-EXHAUST
广数供应链运营团队, 17 02月, 2025，浏览：
657 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-4195M | [1] | BOLT(M10X1.5X30-MM) | |
| 2. | 8T-4189M | [9] | BOLT(M8X1.25X20-MM) | |
| 3. | 5P-4116 | [12] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 4. | 7X-7729 | [1] | WASHER(11X25X3-MM THK) | |
| 5. | 137-4499 | [1] | CLAMP AS | |
| | 6V-8801 | [1] | NUT(3/8-16-THD) | |
| | 8T-4896 | [1] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 6. | 337-7304 | [2] | CLAMP-BAND | |
| 7. | 418-3225Y | [1] | EXHAUST GP-FLEXIBLE | |
| 8. | 453-9397 | [1] | TUBE AS | |
| 9. | 453-9399 | [1] | TUBE | |
| 10. | 453-9400 | [1] | PLATE | |
| 11. | 453-9402 | [1] | INSULATION | |
| 12. | 453-9403 | [1] | INSULATION | |
| 13. | 453-9448 | [1] | INSULATION | |
| 14. | 453-9452 | [1] | INSULATION | |
| 15. | 453-9459 | [1] | PLATE | |
| 16. | 463-4117 | [1] | INSULATION | |
| 17. | 493-3791 | [1] | PLATE AS | |
| 18. | 2G-1475 | [1] | PLATE | |
| 19. | 344-5674M | [3] | NUT(M8X1.25-THD) | |
| 20. | 9X-2646 | [1] | CLIP(SLOT) | |
| 21. | 9X-2647 | [1] | CLIP(TAB) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
