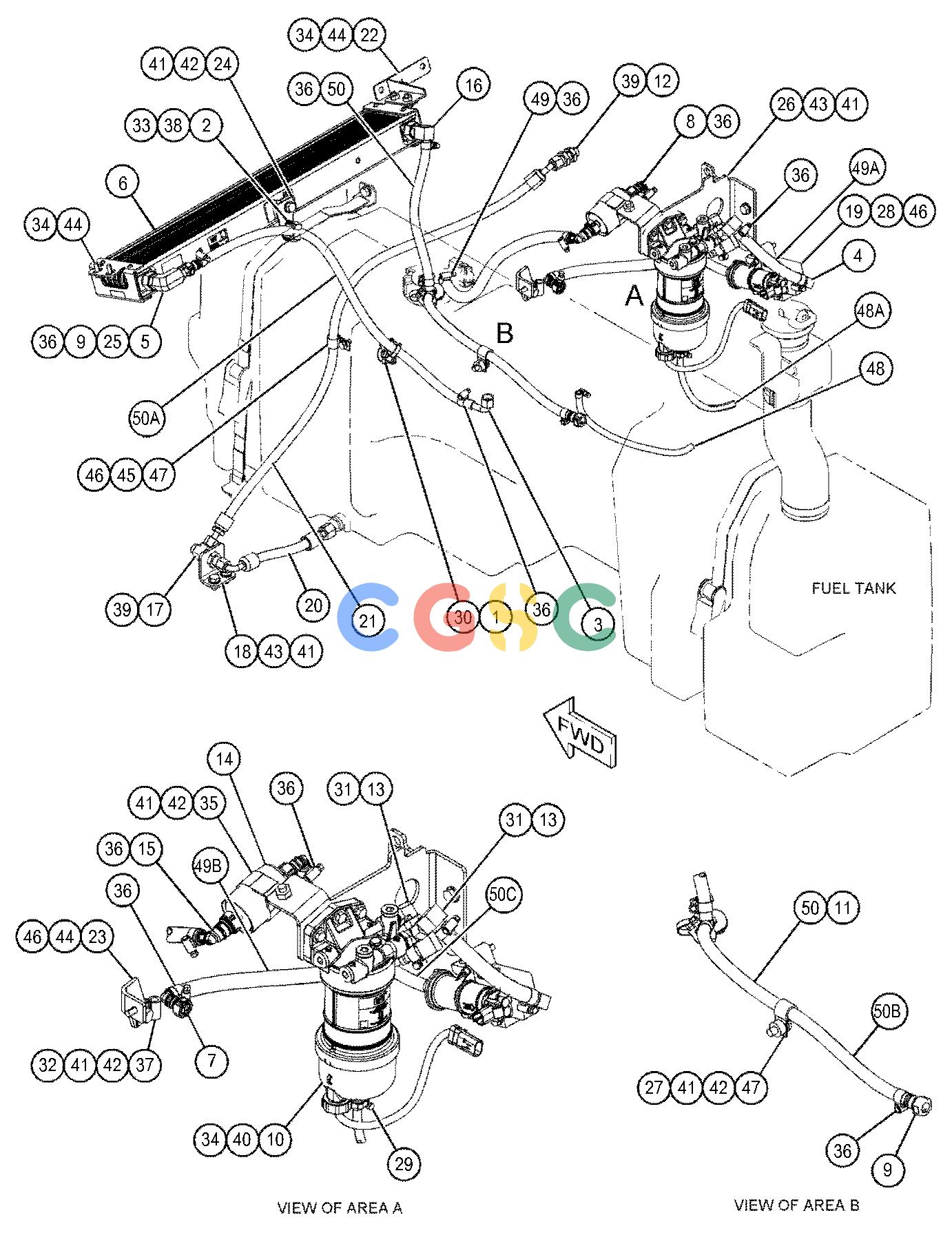

卡特零件查询（AP500F） 443-2081: LINES GP-FUEL
广数供应链运营团队, 17 02月, 2025，浏览：
613 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7K-1181 | [4] | STRAP-CABLE | |
| 2. | 191-3588 | [1] | CLIP | |
| 3. | 238-1844 | [1] | ELBOW | |
| 4. | 276-1072 | [1] | ELBOW AS | |
| | 228-7102 | [1] | SEAL-O-RING | |
| | 297-7960 | [1] | ELBOW | |
| 5. | 332-8594 | [1] | ELBOW AS | |
| | 238-5081 | [1] | SEAL-O-RING | |
| | 268-1530 | [1] | ELBOW | |
| 6. | 334-3325 | [1] | CORE AS-FUEL COOLER | |
| 7. | 354-0817 | [1] | CONNECTOR-HOSE | |
| 8. | 355-0632 | [1] | CONNECTOR-SPECIAL | |
| 9. | 355-0633 | [2] | COUPLER-QUICK DISCONNECT | |
| 10. | 483-1004Y | [1] | FILTER GP-WATER SEP & FUEL | |
| 11. | 367-7331 | [1] | ADAPTER-TEE | |
| 12. | 392-0777 | [1] | CONNECTOR AS | |
| | 6V-8994 | [1] | UNION(STRAIGHT) | |
| | 228-7089 | [2] | SEAL-O-RING | |
| 13. | 421-6172 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 228-7089 | [1] | SEAL-O-RING | |
| | 228-7102 | [1] | SEAL-O-RING | |
| | 421-6167 | [1] | ADAPTER-ELBOW | |
| 14. | 421-9625 | [1] | FILTER-FUEL(IN-LINE) | |
| 15. | 425-2633 | [1] | CONNECTOR-SPECIAL | |
| 16. | 439-1887 | [1] | ELBOW AS | |
| | 184-9114 | [1] | ELBOW | |
| | 238-5081 | [1] | SEAL-O-RING | |
| 17. | 439-1891 | [1] | ADAPTER AS | |
| | 7X-0820 | [1] | TEE | |
| | 228-7089 | [3] | SEAL-O-RING | |
| 18. | 442-0622 | [1] | BRACKET | |
| 19. | 446-5409 | [1] | PUMP AS-FUEL TRANSFER(24-VOLT) | |
| 20. | 453-9412I | [1] | HOSE AS | |
| 21. | 453-9413I | [1] | HOSE AS | |
| 22. | 453-9416 | [1] | BRACKET AS | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 23. | 453-9430 | [1] | PLATE | |
| 24. | 453-9447 | [1] | PLATE | |
| 25. | 459-0572 | [1] | CONNECTOR AS | |
| | 238-5080 | [1] | SEAL-O-RING | |
| | 422-7026 | [1] | CONNECTOR | |
| 26. | 473-3025 | [1] | PLATE AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3612M | [3] | NUT-WELD(M8X1.25-THD) | |
| 27. | 091-0081 | [1] | SPACER(10.5X20X10-MM THK) | |
| 28. | 099-3649M | [3] | BOLT(M8X1.25X40-MM) | |
| 29. | 1P-4278 | [2] | CLAMP-HOSE | |
| 30. | 200-6345 | [2] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 31. | 287-7257 | [2] | ELBOW | |
| 32. | 344-5675M | [1] | NUT(M10X1.5-THD) | |
| 33. | 5C-8312M | [1] | NUT(M4X0.7-THD) | |
| 34. | 5P-4116 | [7] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 35. | 5P-4325 | [1] | CLIP(LOOP) | |
| 36. | 5P-4961 | [16] | CLAMP-HOSE | |
| 37. | 5P-9297 | [1] | CLIP(LOOP) | |
| 38. | 6V-5210M | [1] | SCREW-MACHINE(M4X0.7X10-MM) | |
| 39. | 6V-9168 | [2] | NUT(11/16-16-THD) | |
| 40. | 7X-2537M | [3] | BOLT(M8X1.25X35-MM) | |
| 41. | 8T-4121 | [9] | WASHER-HARD(11X21X2.5-MM THK) | |
| 42. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 43. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 44. | 8T-4189M | [5] | BOLT(M8X1.25X20-MM) | |
| 45. | 8T-4200M | [1] | BOLT(M8X1.25X16-MM) | |
| 46. | 8T-4224 | [5] | WASHER-HARD(8.8X16X2-MM THK) | |
| 47. | 9M-8406 | [2] | CLIP(LOOP) | |
| 48. | 8C-3681E | | HOSE(29-CM) | |
| 48A. | 8C-3681E | | HOSE(20-CM) | |
| 49. | 347-8646E | | HOSE(65-CM) | |
| 49A. | 347-8646E | | HOSE(19-CM) | |
| 49B. | 347-8646E | | HOSE(36-CM) | |
| 50. | 347-8645E | | HOSE(30-CM EACH) | |
| 50A. | 347-8645E | | HOSE(78-CM) | |
| 50B. | 347-8645E | | HOSE(48-CM) | |
| 50C. | 347-8645E | | HOSE(31-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
