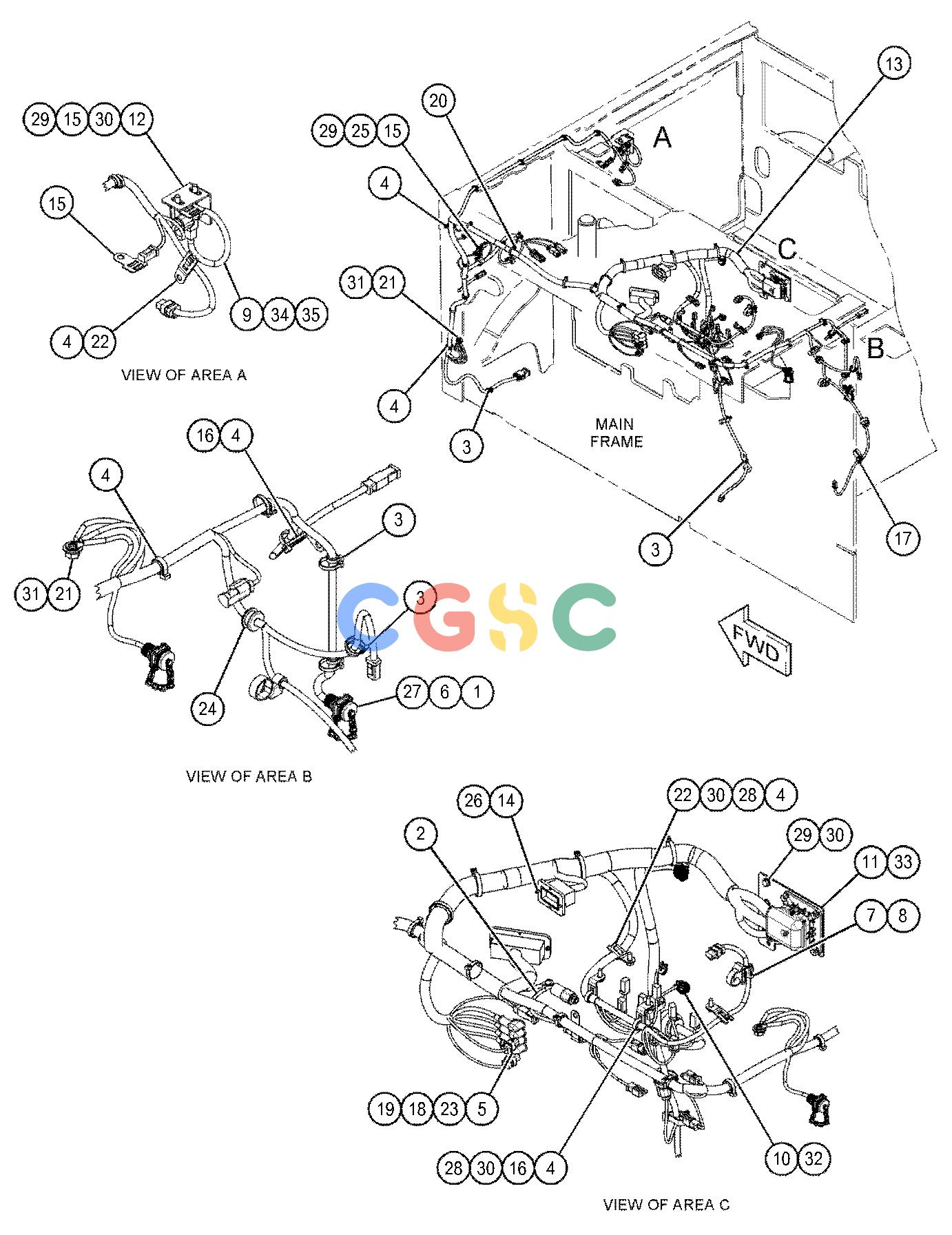

卡特零件查询（AP500F） 450-3038: WIRING GP-MACHINE
广数供应链运营团队, 17 02月, 2025，浏览：
866 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3E-5165 | [2] | CAP AS-PROTECTION | |
| 2. | 3E-7675 | [1] | SWITCH GP-PRESSURE(BRAKE PRESSURE) | |
| | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1813E | | SLEEVE(21-CM) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 3. | 3S-2093 | [20] | STRAP-CABLE | |
| 4. | 7K-1181 | [26] | STRAP-CABLE | |
| 5. | 8T-8799 | [4] | BOOT(RED) | |
| 6. | 132-8485 | [2] | NUT-RING | |
| 7. | 200-6345 | [1] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 8. | 204-2281 | [2] | STRAP-CABLE | |
| 9. | 229-8757 | [1] | SWITCH AS-LIMIT(DOOR) | |
| | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 10. | 256-6454 | [1] | SENSOR-TEMPERATURE(2-PIN)(AMBIENT AIR) | |
| 11. | 456-7105 | [1] | PLATE | |
| 12. | 500-5894 | [1] | BRACKET | |
| 13. | 506-5677Y | [1] | HARNESS AS-WIRING | |
| 14. | 096-6166 | [4] | WASHER-HARD(4.5X9X1-MM THK) | |
| 15. | 130-5300 | [5] | CLIP | |
| 16. | 132-5789 | [3] | CLIP(LADDER) | |
| 17. | 177-2215 | [3] | STRAP-DUAL CLAMP | |
| 18. | 1A-8912 | [4] | WASHER(6.7X12.7X1.6-MM THK) | |
| 19. | 1H-3244 | [4] | LOCKWASHER | |
| 20. | 327-0325 | [5] | STRAP-CABLE | |
| 21. | 4B-4280 | [2] | WASHER(13.5X27X2.5-MM THK) | |
| 22. | 4P-7581 | [3] | CLIP(LADDER) | |
| 23. | 5C-2890M | [4] | NUT(M6X1-THD) | |
| 24. | 5D-7635 | [1] | GROMMET | |
| 25. | 5P-4116 | [1] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 26. | 6V-9672M | [4] | SCREW-MACHINE(M4X0.7X16-MM) | |
| 27. | 8C-8560 | [8] | SCREW-LOCK(4-40X0.5-IN) | |
| 28. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 29. | 8T-4200M | [5] | BOLT(M8X1.25X16-MM) | |
| 30. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 31. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 32. | 8T-7524 | [1] | SEAL-O-RING | |
| 33. | 9X-2042M | [4] | SCREW-TRUSS HEAD(M6X1X12-MM) | |
| 34. | 3L-8187 | [2] | LOCKWASHER | |
| 35. | 103-1107 | [2] | SCREW-MACHINE(6-32X0.87-IN) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
