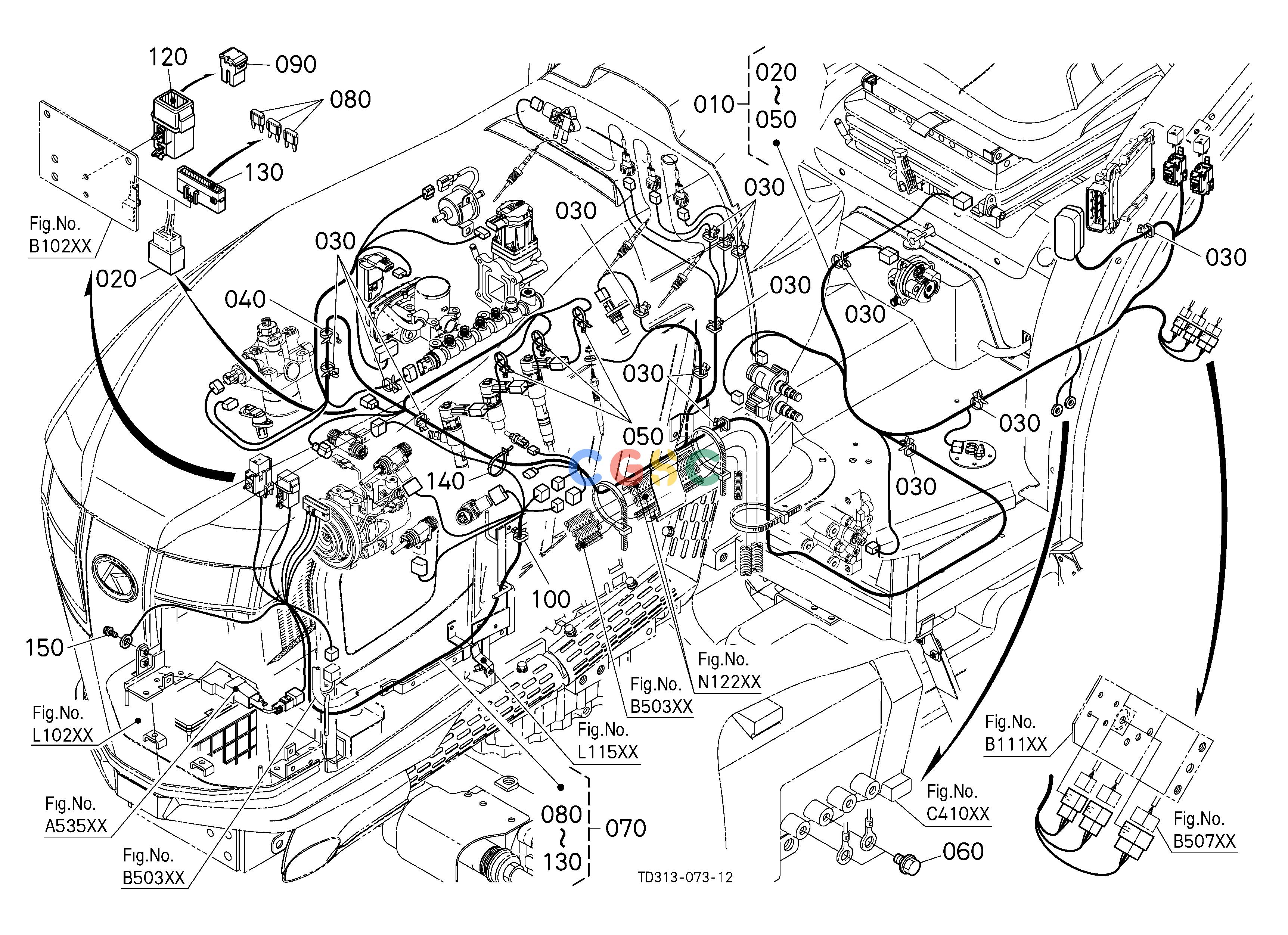

久保田零件查询B50104 ELECTRICAL WIRING (ENGINE) [CA] [NEW] ## S.No.>=42234 S.No.;>=42234 ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
814 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD31030365
|
[1] |
HARNESS,WIRE(E/G,HST)
|
6.6000(lbs); 3.000
|
| 020. |
TD06075390
|
[1] |
DIODE
|
0.0044(lbs); 0.002
|
| 030. |
T106030540
|
[14] |
CLIP
|
0.0220(lbs); 0.010
|
| 040. |
T363530540
|
[1] |
CLIP
|
0.0044(lbs); 0.002
|
| 050. |
RP42154110
|
[3] |
CLAMP(7047-3566-30)
|
0.0044(lbs); 0.002
|
| 060. |
0175450812
|
[2] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
| 070. |
TD33330814
|
[1] |
W/H
|
1.1000(lbs); 0.500
|
| 080. |
T106030460
|
[3] |
FUSE,MINI(20A)
|
0.0044(lbs); 0.002
|
| 090. |
T106030520
|
[1] |
FUSE,SLOW BLOW(40A)
|
0.0154(lbs); 0.007
|
| 100. |
TD35030540
|
[1] |
CLIP(7047-7585-30)
|
0.0110(lbs); 0.005
|
| 120. |
TD35330450
|
[1] |
LABEL
|
0.0022(lbs); 0.001
|
| 130. |
TD35330460
|
[1] |
LABEL
|
0.0022(lbs); 0.001
|
| 140. |
5358164150
|
[1] |
BAND,CORD
|
0.0044(lbs); 0.002
|
| 150. |
T106030370
|
[1] |
BOLT
|
0.0286(lbs); 0.013
|
