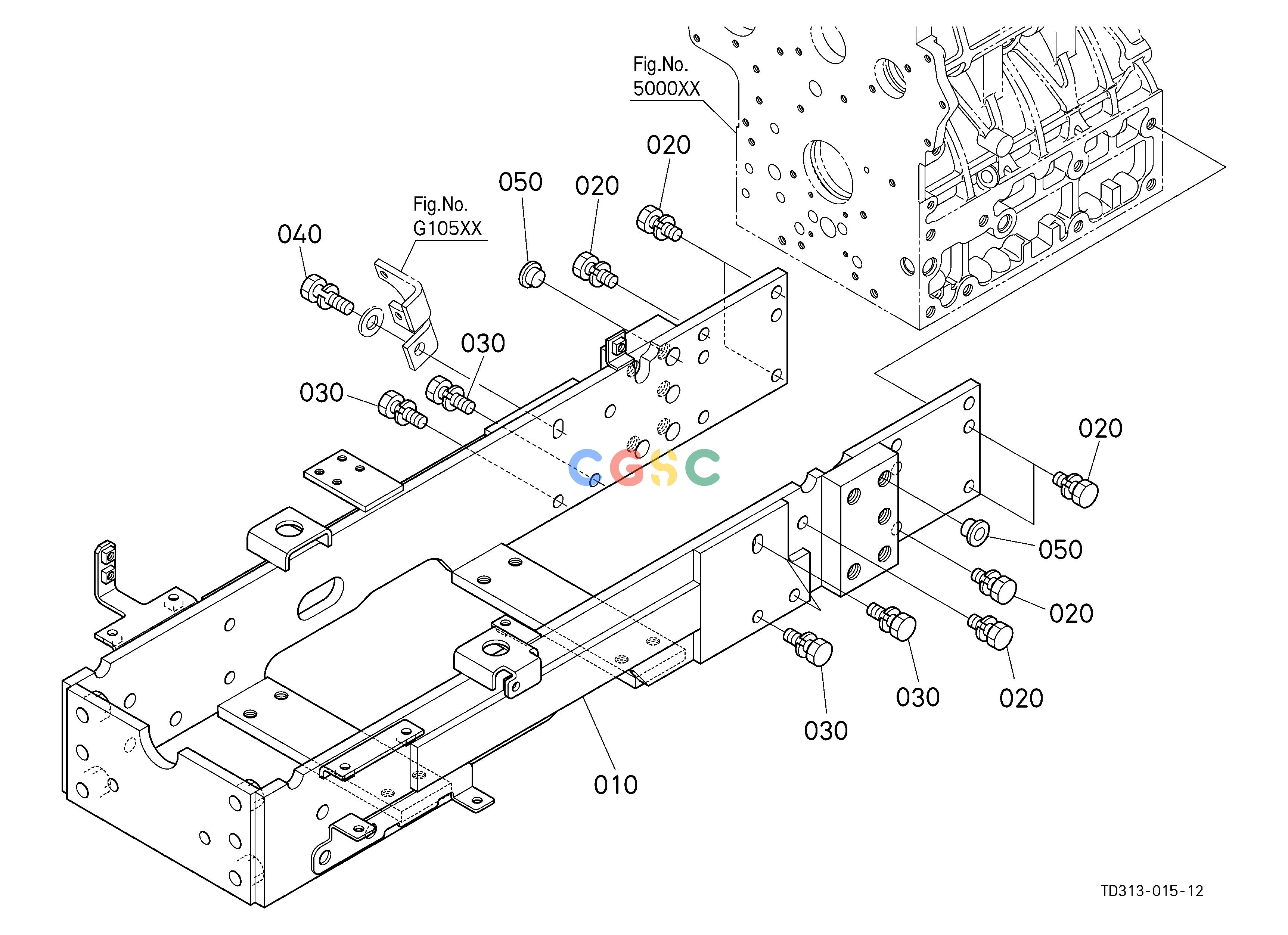

久保田零件查询F10501 FRONT AXLE FRAME [CA] FRONT AXLE/CHASSISEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
289 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD31014000
|
[1] |
FRAME,COMP(F-AXLE DT
|
92.4000(lbs); 42.000
|
| 010. |
TD31014002
|
[1] |
FRAME,COMP(F-AXLE DT
|
92.4000(lbs); 42.000
|
| 010. |
TD31014003
|
[1] |
FRAME,COMP(F-AXLE DT
|
92.4000(lbs); 42.000
|
| 020. |
0113351230
|
[9] |
BOLT,SEMS
|
0.0880(lbs); 0.040
|
| 030. |
0113351240
|
[5] |
BOLT,SEMS
|
0.0990(lbs); 0.045
|
| 040. |
0113351245
|
[1] |
BOLT,SEMS
|
0.1210(lbs); 0.055
|
| 050. |
3330090910
|
[10] |
PLUG
|
0.0044(lbs); 0.002
|
