卡特零件查询（AP500F） 447-9880: BOGIE GP
广数供应链运营团队, 17 02月, 2025，浏览：
961 次

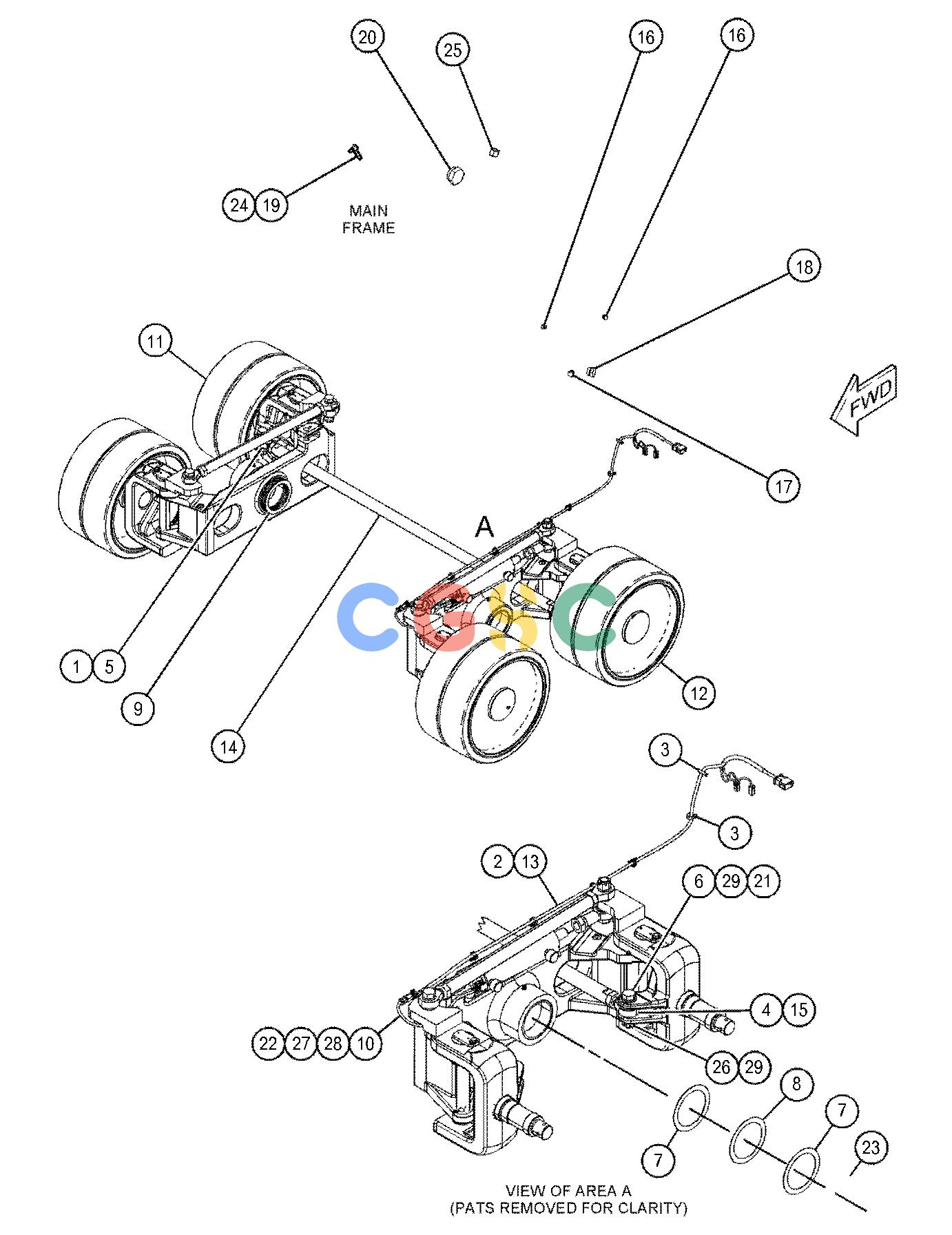

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1A-4168 | [1] | NUT(1-1/4-12-THD) | |
| 2. | 3S-2093 | [10] | STRAP-CABLE | |
| 3. | 7K-1181 | [2] | STRAP-CABLE | |
| 4. | 8I-0795 | [1] | BEARING | |
| 5. | 8T-4401 | [1] | BEARING | |
| 6. | 104-7685 | [2] | BOLT AS-SPECIAL(1-14X5-IN) | |
| 7. | 105-9058B | [4] | SHIM(1.5-MM THK) | |
| 8. | 105-9059B | [4] | SHIM(0.51-MM THK) | |
| 9. | 105-9066 | [10] | WASHER-HARD(128.25X165X6.35-MM THK) | |
| 10. | 353-5791 | [1] | HARNESS AS-WIRING | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 9X-3401 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1767 | [3] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| 11. | 396-4175Y | [1] | BOGIE GP(RH) | |
| 12. | 396-4176Y | [1] | BOGIE GP(LEFT) | |
| 13. | 428-9453Y | [1] | HARNESS AS-CHASSIS | |
| 14. | 435-3803 | [1] | ROD | |
| 15. | 061-6915 | [1] | NUT(1-1/4-12-THD) | |
| 16. | 148-8407 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| 17. | 148-8411 | [1] | PLUG AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 18. | 164-4180 | [1] | PLUG AS | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 9S-4181 | [1] | PLUG(1-5/16-12-THD) | |
| 19. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 20. | 205-0672 | [1] | PLUG AS | |
| | 9S-7583 | [1] | PLUG | |
| | 030-4606 | [1] | SEAL-O-RING | |
| 21. | 3B-4619 | [2] | PIN-COTTER | |
| 22. | 4D-7794 | [1] | CLIP | |
| 23. | 5P-5297 | [2] | RING-RETAINING(EXTERNAL) | |
| 24. | 6V-0852 | [1] | CAP-DUST | |
| 25. | 6V-9832 | [1] | CAP(ORFS) | |
| 26. | 7M-9651 | [2] | NUT-SLOTTED(1-14-THD) | |
| 27. | 8T-4199M | [1] | BOLT(M8X1.25X12-MM) | |
| 28. | 8T-4224 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 29. | 8T-5361 | [4] | WASHER-HARD(28X49X5-MM THK) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
