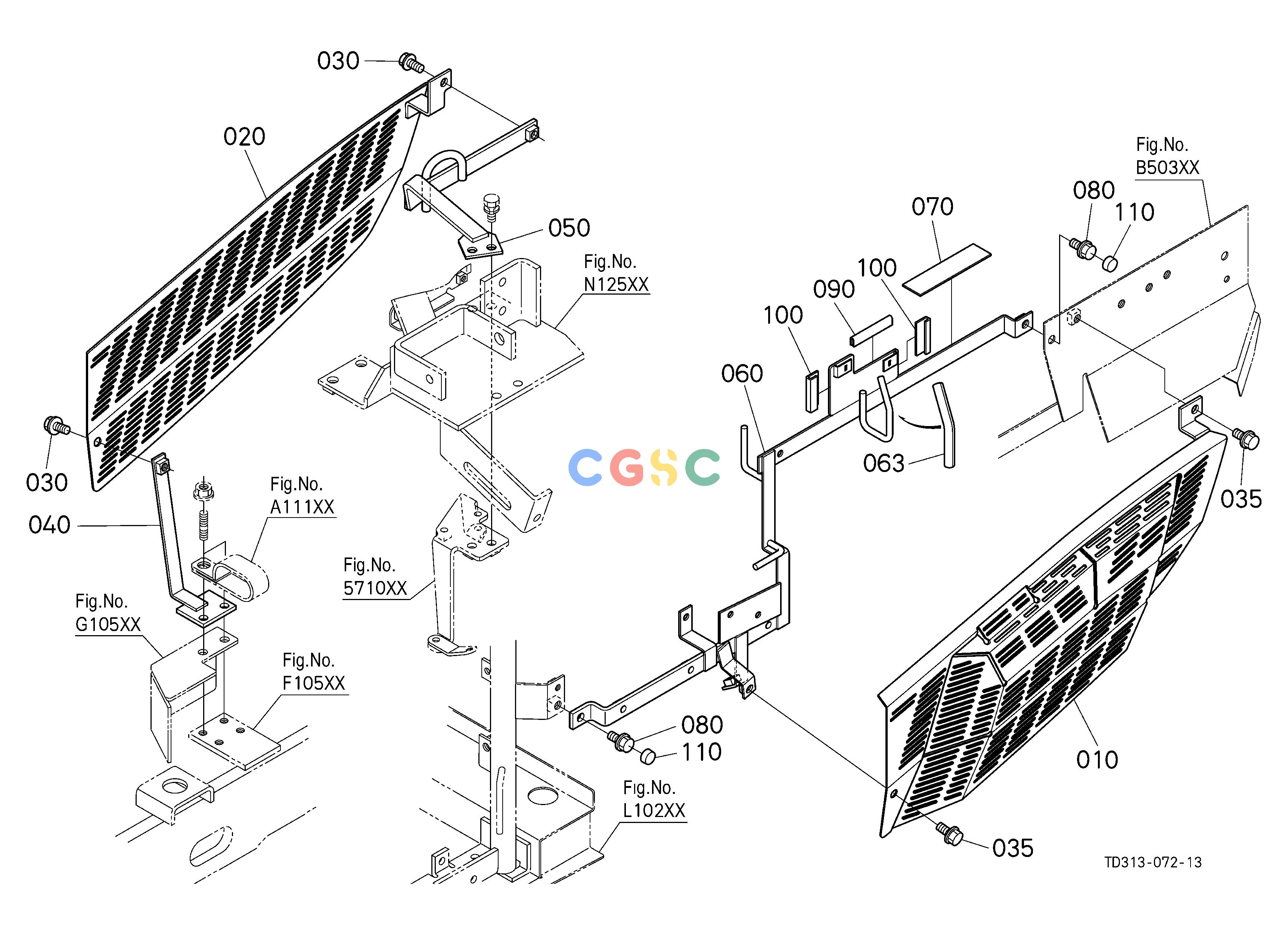

久保田零件查询L11503 SIDE COVER LOWER [CA] [NEW] ## S.No.>=41093 S.No.;>=41093 HOOD/BONNETEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
837 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD35341370
|
[1] |
SKIRT(LH)
|
1.8040(lbs); 0.820
|
| 020. |
TD35041383
|
[1] |
SKIRT
|
1.6500(lbs); 0.750
|
| 030. |
3081018870
|
[2] |
BOLT,FLANGE
|
0.0264(lbs); 0.012
|
| 035. |
3081018870
|
[2] |
BOLT,FLANGE
|
0.0264(lbs); 0.012
|
| 035. |
3040018870
|
[2] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
| 040. |
TD33041402
|
[1] |
STAY
|
0.2860(lbs); 0.130
|
| 050. |
TD33041415
|
[1] |
STAY
|
0.6160(lbs); 0.280
|
| 060. |
TD33342270
|
[1] |
STAY
|
0.0000(lbs); 0.000
|
| 063. |
3C75475130
|
[1] |
CUSHION
|
0.0022(lbs); 0.001
|
| 070. |
3C75475120
|
[1] |
CUSHION
|
0.0022(lbs); 0.001
|
| 080. |
0175450816
|
[2] |
BOLT,FLANGE
|
0.0242(lbs); 0.011
|
| 090. |
4562382850
|
[1] |
RUBBER
|
0.0110(lbs); 0.005
|
| 100. |
T185530710
|
[2] |
CUSHION
|
0.0022(lbs); 0.001
|
| 110. |
3N34775930
|
[2] |
CAP
|
0.0022(lbs); 0.001
|
