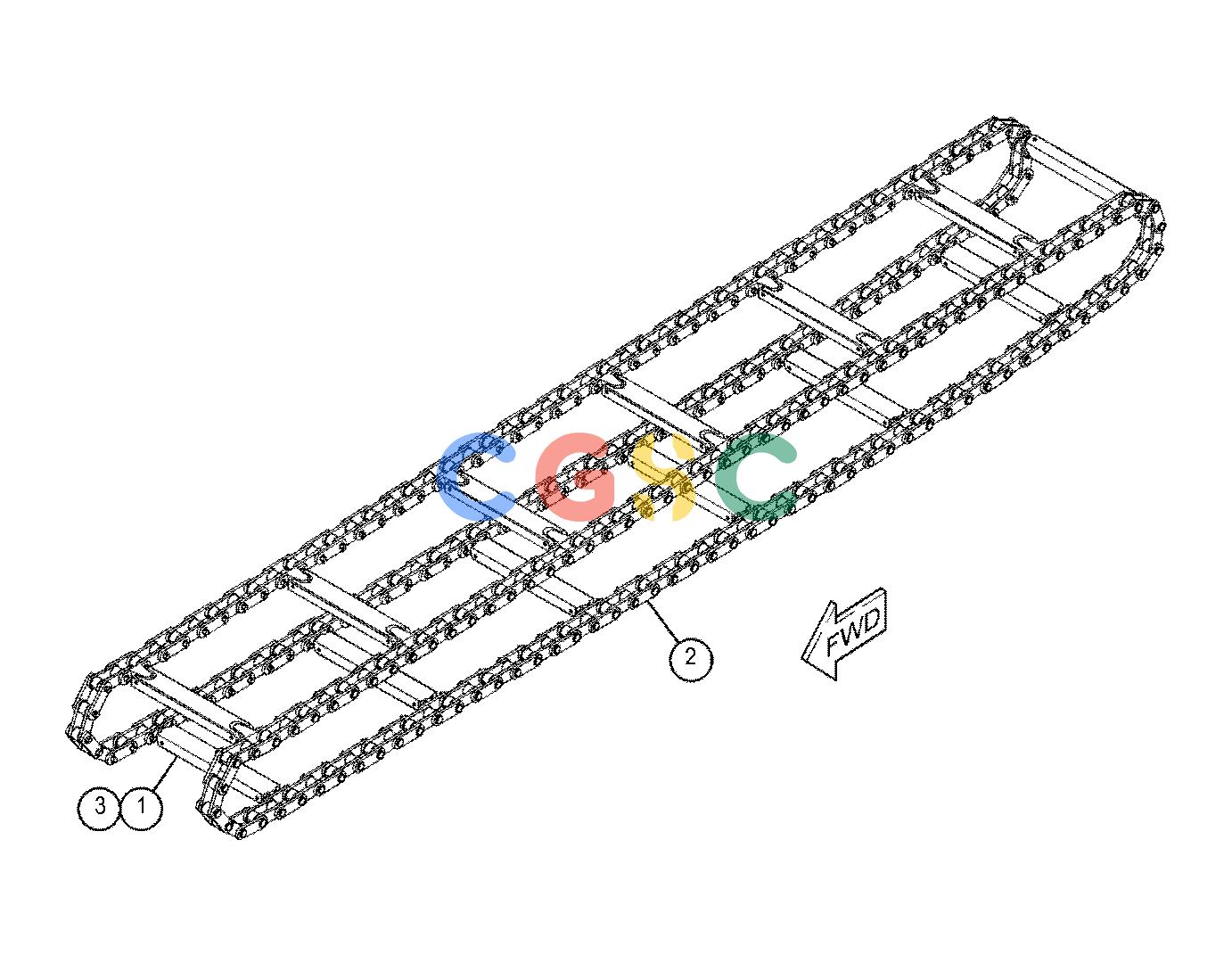

卡特零件查询（AP500F） 451-4653: CONVEYOR GP-DRAG
广数供应链运营团队, 17 02月, 2025，浏览：
445 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 129-7546 | [13] | BAR-FEEDER | |
| 2. | 451-4652JLN | [1] | CHAIN GP-CONVEYOR | |
| | 364-9653JN | [200] | LOCKPIN | |
| 3. | 053-1720 | [26] | PIN-SPRING | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 359-4887N | [26] | KIT-LINK | |
| | | | (ALSO INCLUDES OUTTER LINK, LUG & COUPLING PINS) |
| | 359-2943L | [100] | KIT-LINK | |
| | | | (INCLUDES BUSHINGS, ROLLERS & SIDE BARS) |
| | 359-1007J | [74] | KIT-LINK | |
| | | | (ALSO INCLUDES OUTTER LINKS & COUPLING PINS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | N | | KIT MARKED N SERVICES PART(S) MARKED N |
