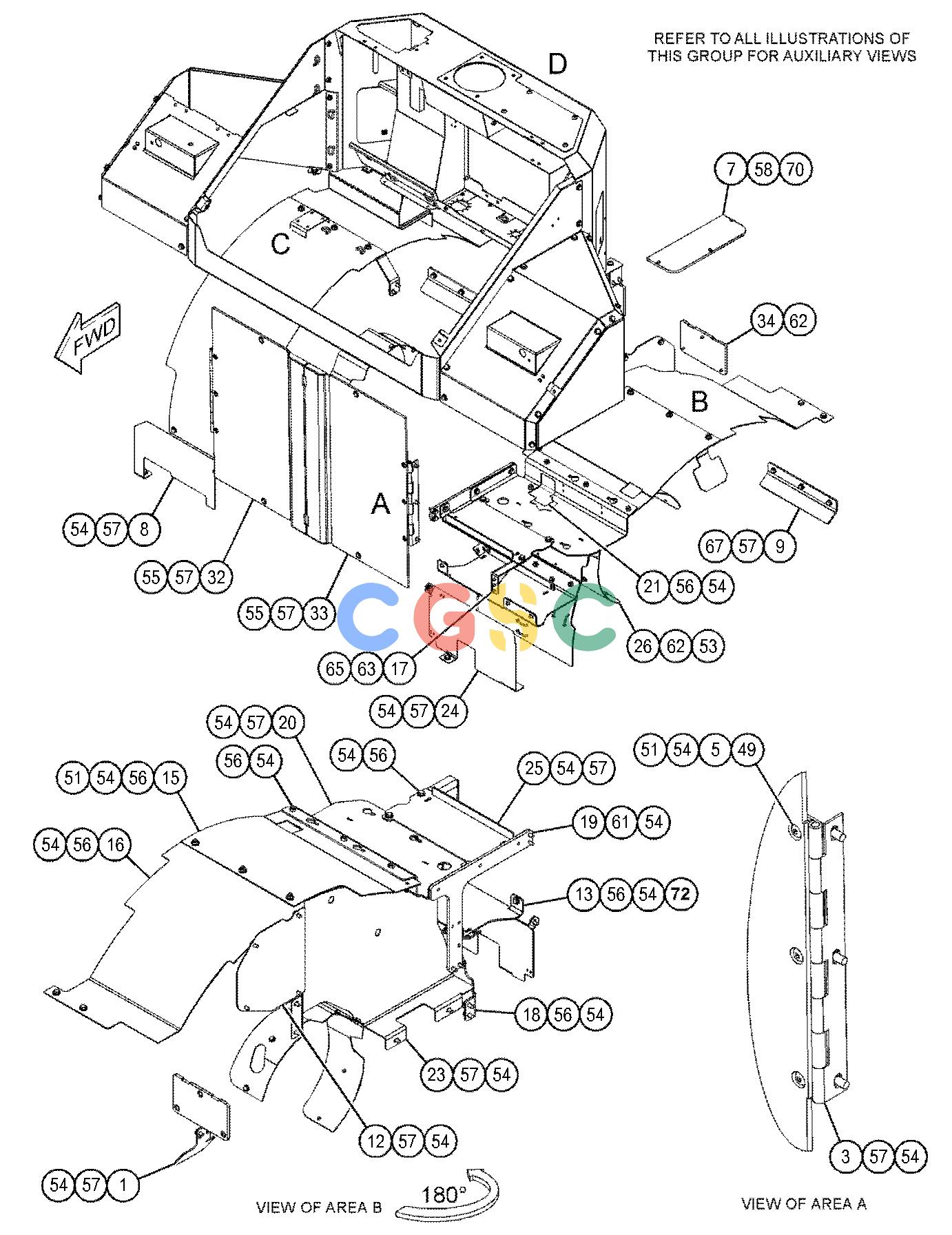

卡特零件查询（AP500F） 445-5892: COVER GP-ACCESS
广数供应链运营团队, 17 02月, 2025，浏览：
556 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 196-3064 | [2] | PLATE | |
| 2. | 234-0091 | [11] | RIVET | |
| 3. | 332-2643 | [2] | HINGE AS | |
| 4. | 332-3113 | [2] | BRACKET AS | |
| 5. | 332-4605 | [2] | PLATE | |
| 6. | 343-7723 | [1] | BOX AS-TOOL | |
| 7. | 348-1785 | [2] | PLATE | |
| 8. | 435-4123 | [1] | GUARD | |
| 9. | 435-4124 | [2] | BRACKET | |
| 10. | 446-6628 | [1] | PLATE | |
| 11. | 451-4627 | [1] | PLATE AS | |
| 12. | 451-4655 | [1] | COVER | |
| 13. | 451-4657 | [1] | BRACKET AS | |
| | 7T-1099 | [1] | LINK | |
| | 8T-3490M | [5] | NUT-WELD(M10X1.5-THD) | |
| | 361-5420 | [1] | CLIP | |
| 14. | 451-4660 | [1] | PLATE | |
| 15. | 451-4661 | [1] | FENDER | |
| 16. | 451-4662 | [1] | FENDER | |
| 17. | 451-4663 | [1] | BRACKET AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 18. | 451-4664 | [1] | FENDER AS | |
| | 7T-1099 | [1] | LINK | |
| 19. | 451-4665 | [1] | PLATE AS | |
| | 102-8704 | [1] | PLATE | |
| 20. | 451-4666 | [1] | PLATE AS | |
| | 8T-3490M | [6] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 21. | 451-4667 | [1] | COVER | |
| 22. | 451-4668 | [1] | FENDER AS | |
| | 8T-3490M | [4] | NUT-WELD(M10X1.5-THD) | |
| 23. | 451-4670 | [1] | COVER | |
| 24. | 451-4671 | [1] | COVER | |
| 25. | 451-4672 | [1] | PLATE AS | |
| 26. | 451-4673 | [1] | FLASHING | |
| 27. | 451-4674 | [1] | FLASHING | |
| 28. | 451-4675 | [1] | BRACKET | |
| 29. | 451-4680 | [1] | FENDER AS | |
| | 6V-9632M | [4] | NUT-WELD(M6X1-THD) | |
| | 7T-1099 | [2] | LINK | |
| 30. | 451-4687 | [1] | COVER AS | |
| | 7T-1099 | [5] | LINK | |
| | 8T-3490M | [9] | NUT-WELD(M10X1.5-THD) | |
| | 9R-2821M | [1] | BOSS(M10X1.5X15-MM) | |
| | 361-5420 | [1] | CLIP | |
| 31. | 451-4689 | [1] | COVER | |
| 32. | 451-4695 | [1] | DOOR AS | |
| 33. | 451-4696 | [1] | DOOR AS | |
| 34. | 451-6279 | [2] | COVER | |
| 35. | 451-6280 | [1] | COVER AS | |
| | 7T-1099 | [3] | LINK | |
| | 8T-3490M | [3] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3612M | [1] | NUT-WELD(M8X1.25-THD) | |
| 36. | 451-6282 | [1] | COVER AS | |
| | 7T-1099 | [2] | LINK | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3612M | [1] | NUT-WELD(M8X1.25-THD) | |
| 37. | 451-6286 | [1] | COVER | |
| 38. | 459-3927 | [1] | COVER AS | |
| | 8T-3490M | [3] | NUT-WELD(M10X1.5-THD) | |
| 39. | 460-4775 | [1] | FOAM | |
| 40. | 460-4778 | [1] | FOAM | |
| 41. | 470-1941 | [1] | SUPPORT AS | |
| | 8T-3490M | [4] | NUT-WELD(M10X1.5-THD) | |
| 42. | 470-1942 | [1] | SUPPORT AS | |
| | 8T-3490M | [4] | NUT-WELD(M10X1.5-THD) | |
| 43. | 470-3179 | [1] | COVER | |
| 44. | 471-4237 | [2] | STRIP | |
| 45. | 472-1044 | [1] | BAFFLE | |
| 46. | 472-1050 | [2] | STRIP | |
| 47. | 486-7494 | [1] | COVER AS | |
| | 6V-9632M | [2] | NUT-WELD(M6X1-THD) | |
| | 7T-1099 | [1] | LINK | |
| | 361-5420 | [1] | CLIP | |
| 48. | 486-7495 | [1] | COVER AS | |
| | 6V-9632M | [2] | NUT-WELD(M6X1-THD) | |
| | 7T-1099 | [3] | LINK | |
| | 110-2023M | [2] | STUD-WELD(M10X1.5X25-MM) | |
| | 361-5420 | [1] | CLIP | |
| 49. | 238-0251M | [6] | SCREW-BUTTON HEAD(M10X1.5X25-MM) | |
| 50. | 344-5674M | [12] | NUT(M8X1.25-THD) | |
| 51. | 344-5675M | [17] | NUT(M10X1.5-THD) | |
| 52. | 5C-9553M | [4] | BOLT(M6X1X16-MM) | |
| 53. | 5P-4116 | [14] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 54. | 7X-7729 | [128] | WASHER(11X25X3-MM THK) | |
| 55. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 56. | 8T-4136M | [33] | BOLT(M10X1.5X25-MM) | |
| 57. | 8T-4137M | [76] | BOLT(M10X1.5X20-MM) | |
| 58. | 8T-4138M | [6] | BOLT(M6X1X20-MM) | |
| 60. | 8T-4192M | [4] | BOLT(M12X1.75X25-MM) | |
| 61. | 8T-4195M | [10] | BOLT(M10X1.5X30-MM) | |
| 62. | 8T-4199M | [20] | BOLT(M8X1.25X12-MM) | |
| 63. | 8T-4200M | [3] | BOLT(M8X1.25X16-MM) | |
| 64. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 65. | 8T-4224 | [9] | WASHER-HARD(8.8X16X2-MM THK) | |
| 66. | 8T-6869M | [6] | BOLT(M8X1.25X60-MM) | |
| 67. | 8T-7934 | [6] | WASHER-HARD(11X21X5-MM THK) | |
| 68. | 9X-2040M | [2] | SCREW-TRUSS HEAD(M10X1.5X25-MM) | |
| 69. | 9X-2041M | [4] | SCREW-TRUSS HEAD(M10X1.5X20-MM) | |
| 70. | 9X-8256 | [10] | WASHER(6.6X12X2-MM THK) | |
| 71. | 5P-5930D | | SEAL(0.5-M) | |
| 71A. | 5P-5930D | | SEAL(0.1-M EACH) | |
| 71B. | 5P-5930D | | SEAL(0.2-M) | |
| 72. | 132-5789 | [1] | CLIP(LADDER) | |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
