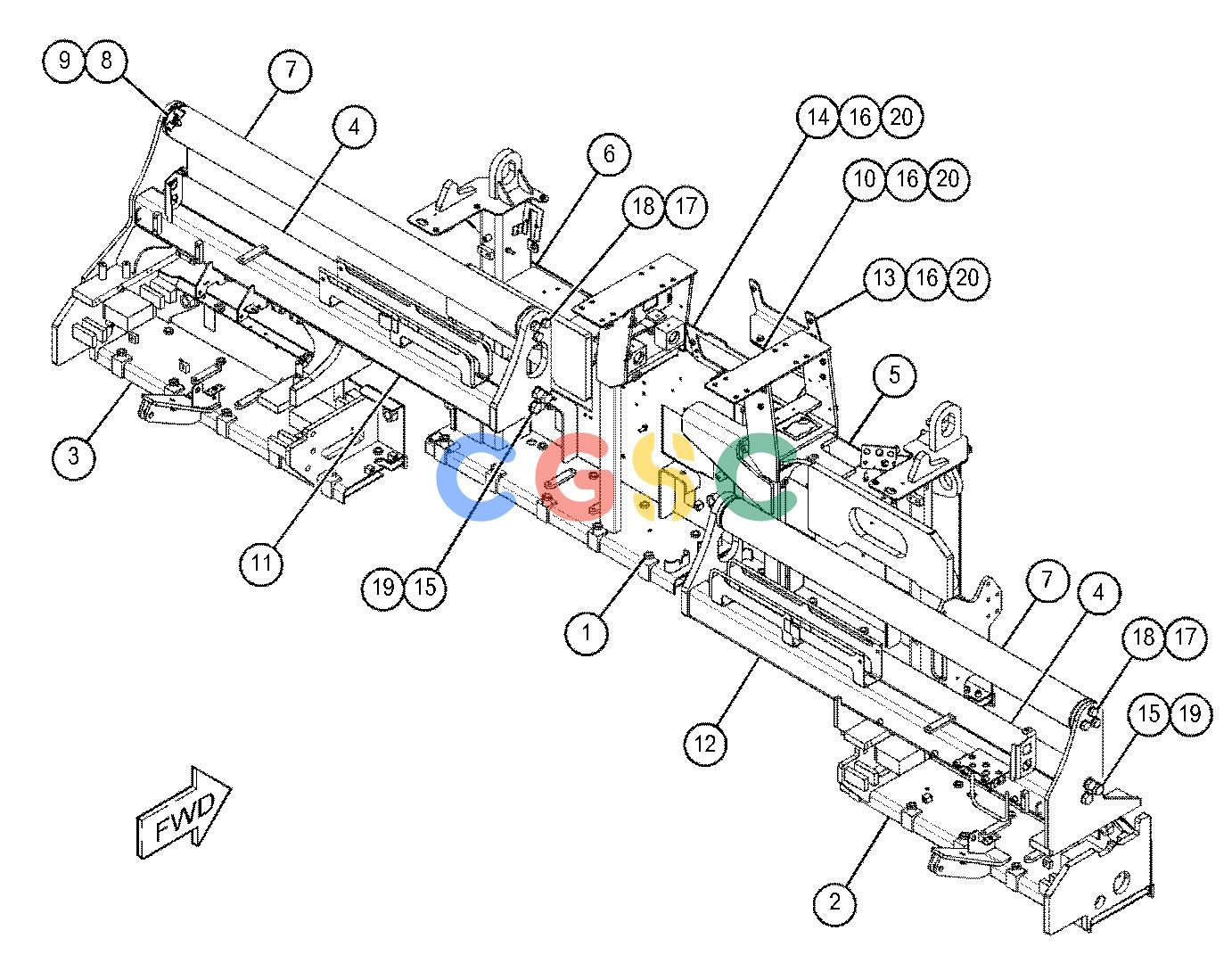

卡特零件查询（AP500F） 473-3310: FRAME GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
375 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 422-4637M | [20] | NUT(M30X2-THD) | |
| 2. | 486-4813 | [1] | FRAME AS-MACH(RH) | |
| | 7T-1099 | [4] | LINK | |
| | 110-2023M | [1] | STUD-WELD(M10X1.5X25-MM) | |
| | 9R-2613M | [2] | BOSS-WELD(M10X1.5X25-MM) | |
| 3. | 486-4810 | [1] | FRAME AS-MACH(LH) | |
| | 110-2023M | [1] | STUD-WELD(M10X1.5X25-MM) | |
| | 9R-2613M | [2] | BOSS-WELD(M10X1.5X25-MM) | |
| | 7T-1099 | [4] | LINK | |
| 4. | 437-4457 | [2] | TUBE AS | |
| 5. | 495-7947 | [1] | FRAME AS(RH) | |
| 6. | 497-6995 | [1] | FRAME AS(LH) | |
| 7. | 474-7999C | [1] | PLATE AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 9X-2032M | [1] | NUT-WELD(M4X0.7-THD) | |
| 8. | 474-8000C | [1] | PLATE AS | |
| | 6V-9632M | [2] | NUT-WELD(M6X1-THD) | |
| | 9X-2032M | [2] | NUT-WELD(M4X0.7-THD) | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 9. | 446-4865 | [2] | TUBE AS | |
| 10. | 448-3220B | [4] | SHIM(1.6-MM THK) | |
| 11. | 448-3221B | [4] | SHIM(3-MM THK) | |
| 12. | 462-7035 | [1] | BRACKET AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 13. | 499-4432 | [1] | FRAME AS-SCREED(EXTENDER, LH)(LH) | |
| | | [2] | BRACKET AS |
| | 8Y-4489M | [2] | BOSS(M10X1.5-THD) | |
| | 9R-2821M | [2] | BOSS(M10X1.5X15-MM) | |
| 14. | 463-4000 | [1] | FRAME AS(RH) | |
| | 8T-3490M | [4] | NUT-WELD(M10X1.5-THD) | |
| | 9R-2821M | [6] | BOSS(M10X1.5X15-MM) | |
| 15. | 7X-2576M | [12] | BOLT(M24X3X70-MM) | |
| 16. | 7X-7729 | [6] | WASHER(11X25X3-MM THK) | |
| 17. | 8T-4123 | [12] | WASHER(22X35X3.5-MM THK) | |
| 18. | 8T-4141M | [12] | BOLT(M20X2.5X70-MM) | |
| 19. | 8T-4167 | [12] | WASHER-HARD(26X44X4-MM THK) | |
| 20. | 8T-4196M | [6] | BOLT(M10X1.5X35-MM) | |
| | B | | USE AS REQUIRED |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
