卡特零件查询（AP500F） 447-9857: VENTILATION GP-PAVER
广数供应链运营团队, 17 02月, 2025，浏览：
404 次

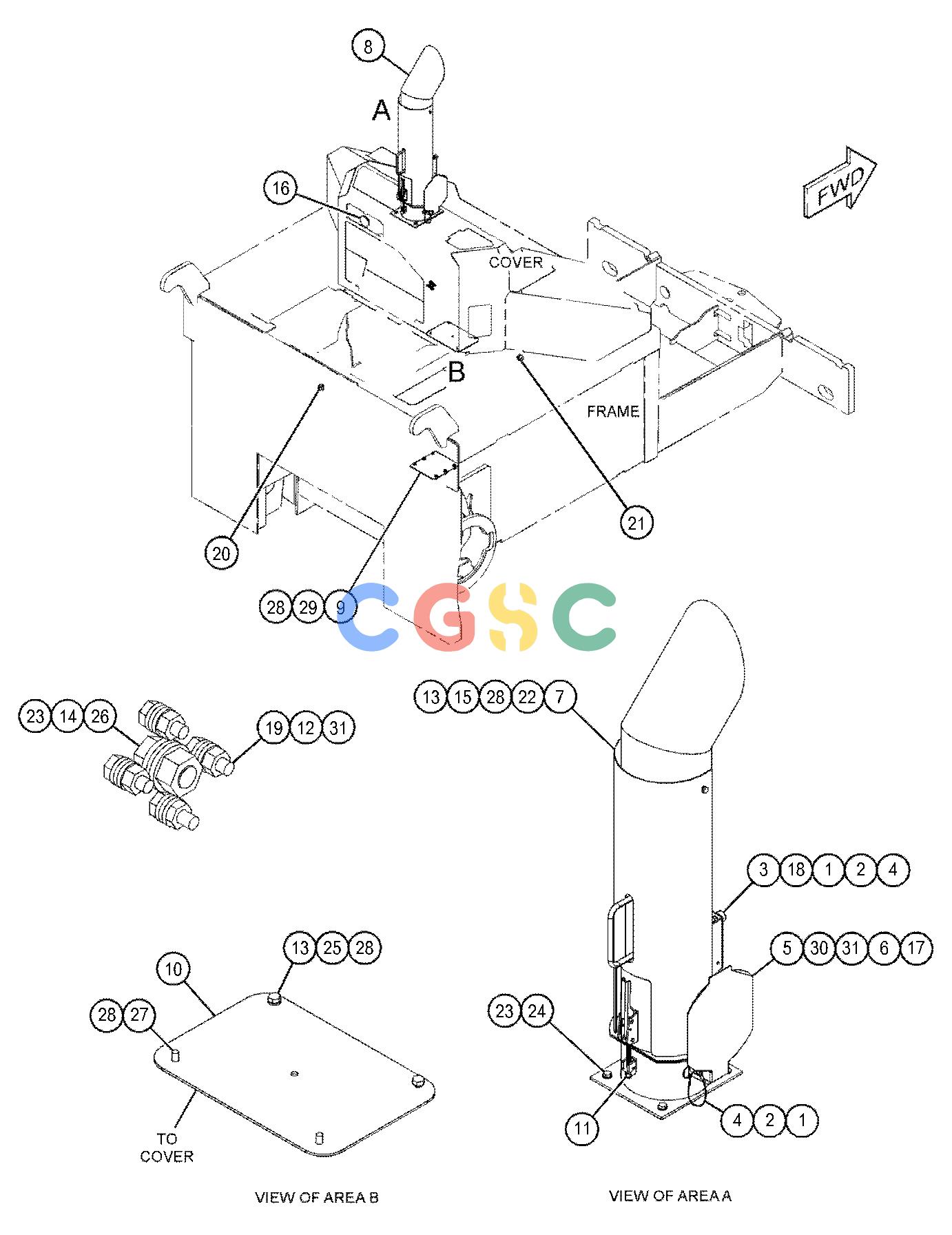

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5E-9892 | [2] | PIN | |
| 2. | 5P-7958 | [2] | SLEEVE-CABLE SPLICE | |
| 3. | 114-9284 | [1] | BUMPER | |
| 4. | 179-9392 | [2] | LANYARD | |
| 5. | 289-2175 | [1] | COVER | |
| 6. | 301-5155 | [1] | TUBE | |
| 7. | 443-8705 | [1] | SHIELD | |
| 8. | 453-1060 | [1] | STACK AS | |
| | 107-6125 | [1] | HINGE AS | |
| 9. | 455-7393 | [1] | PLATE AS | |
| | 8T-3612M | [6] | NUT-WELD(M8X1.25-THD) | |
| 10. | 455-7397 | [1] | PLATE | |
| 11. | 232-3121M | [1] | NUT(M10X1.25-THD) | |
| 12. | 344-5673M | [4] | NUT(M6X1-THD) | |
| 13. | 344-5674M | [6] | NUT(M8X1.25-THD) | |
| 14. | 344-5675M | [1] | NUT(M10X1.5-THD) | |
| 15. | 397-9301 | [4] | WASHER-HARD(11.5X20X15-MM THK) | |
| 16. | 5A-4885 | [1] | BUTTON-PLUG | |
| 17. | 5C-2890M | [1] | NUT(M6X1-THD) | |
| 18. | 5C-7261M | [1] | NUT(M8X1.25-THD) | |
| 19. | 5C-9553M | [4] | BOLT(M6X1X16-MM) | |
| 20. | 6V-9831 | [1] | CAP(ORFS) | |
| 21. | 6V-9832 | [1] | CAP(ORFS) | |
| 22. | 7X-2537M | [4] | BOLT(M8X1.25X35-MM) | |
| 23. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 24. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 25. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 26. | 8T-4191M | [1] | BOLT(M10X1.5X16-MM) | |
| 27. | 8T-4200M | [2] | BOLT(M8X1.25X16-MM) | |
| 28. | 8T-4224 | [20] | WASHER-HARD(8.8X16X2-MM THK) | |
| 29. | 8T-4908M | [6] | BOLT(M8X1.25X25-MM) | |
| 30. | 8U-5746M | [1] | BOLT(M6X1X75-MM) | |
| 31. | 9X-8256 | [10] | WASHER(6.6X12X2-MM THK) | |
| | M | | METRIC PART |
