卡特零件查询（AP500F） 433-6323: CRANKSHAFT GP
广数供应链运营团队, 17 02月, 2025，浏览：
464 次

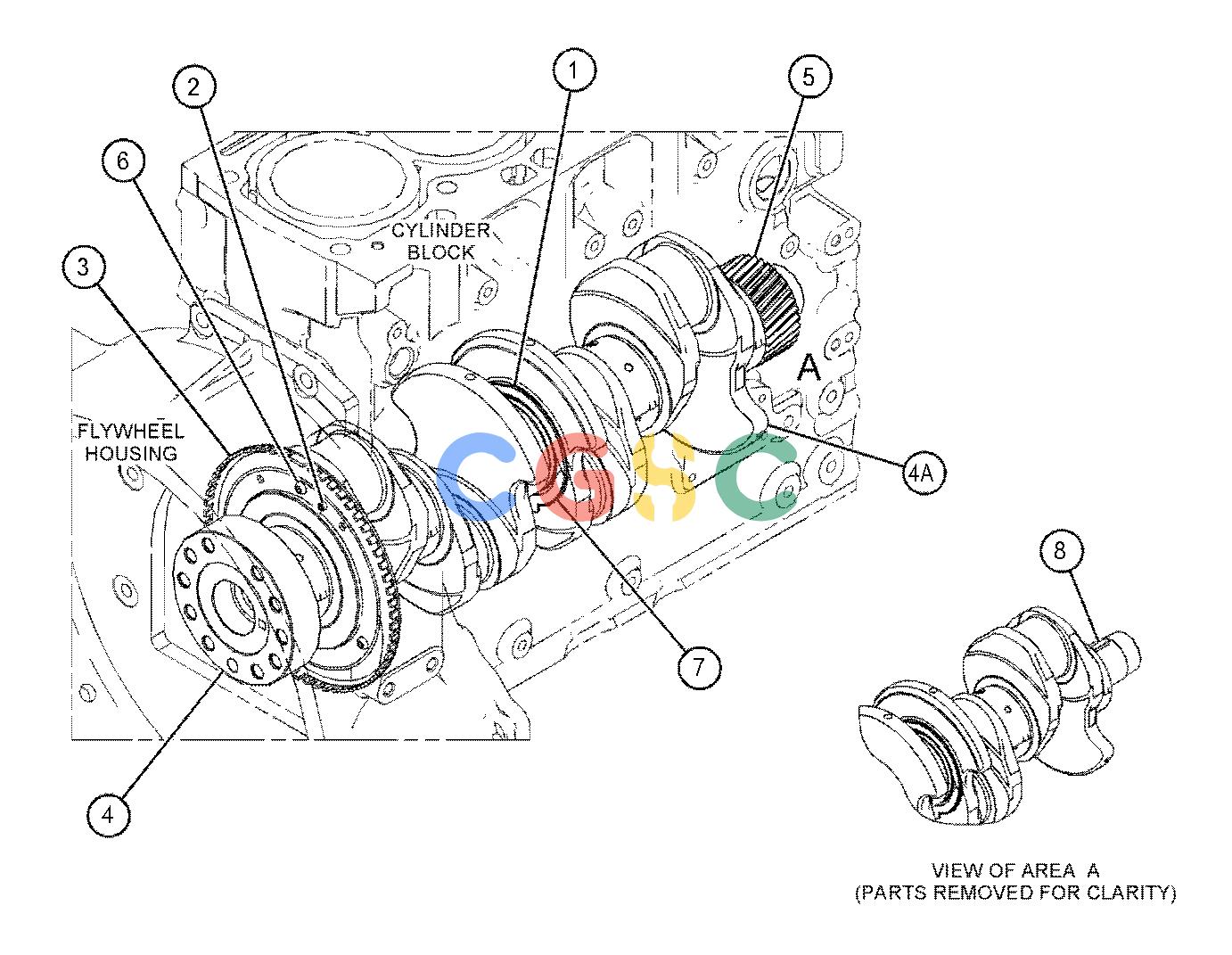

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | CJ | [2] | PLATE-THRUST(STANDARD) |
| 2. | 339-8780 | [1] | DOWEL | |
| 3. | 341-4028 | [1] | RING-TIMING | |
| 4. | 475-8373 | [1] | CRANKSHAFT GP | |
| 4A. | 455-3693 | [1] | CRANKSHAFT | |
| 5. | 216-8314 | [1] | GEAR-CRANKSHAFT(34-TEETH) | |
| 6. | 276-7394M | [3] | SCREW(M6X1XX12-MM) | |
| 7. | CJ | [2] | PLATE-THRUST(STANDARD) |
| 8. | 067-6135 | [1] | KEY-WOODRUFF(CRANKSHAFT) | |
| | | | |
| | CFP | [1] | BEARING(STANDARD-UPPER) |
| | CFP | [5] | BEARING(STANDARD-LOWER) |
| | CF | [4] | BEARING(STANDARD-UPPER) |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 518-5437BP | [1] | KIT-BEARING | |
| | | | (INCLUDES BEARINGS) |
| | 518-5440AB | | KIT-BEARING(0.254-MM US) | |
| | 518-5441AB | | KIT-BEARING(0.508-MM US) | |
| | 518-5885AB | | KIT-BEARING(0.762-MM US) | |
| | | | (EACH BEARING KIT INCLUDES BEARINGS) |
| | 518-5891J | [1] | KIT-WASHER(STANDARD) | |
| | | | (INCLUDES WASHERS) |
| | 518-5892AB | | KIT-WASHER(0.191-MM US) | |
| | 518-5893AB | | KIT-WASHER(STANDARD, 0.191-MM US) | |
| | | | (EACH WASHER KIT INCLUDES WASHERS) |
| | 360-3986AB | | KIT-BEARING(CONNECTING ROD) | |
| | 468-7762AB | | KIT-BEARING(0.254-MM US) | |
| | 468-7769AB | | KIT-BEARING(0.508-MM US) | |
| | 468-7770AB | | KIT-BEARING(0.762-MM US) | |
| | | | (EACH BEARING KIT INCLUDES BEARINGS) |
| | A | | NOT PART OF THIS GROUP |
| | B | | USE AS REQUIRED |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | F | | NOT SHOWN |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | P | | KIT MARKED P SERVICES PART(S) MARKED P |
