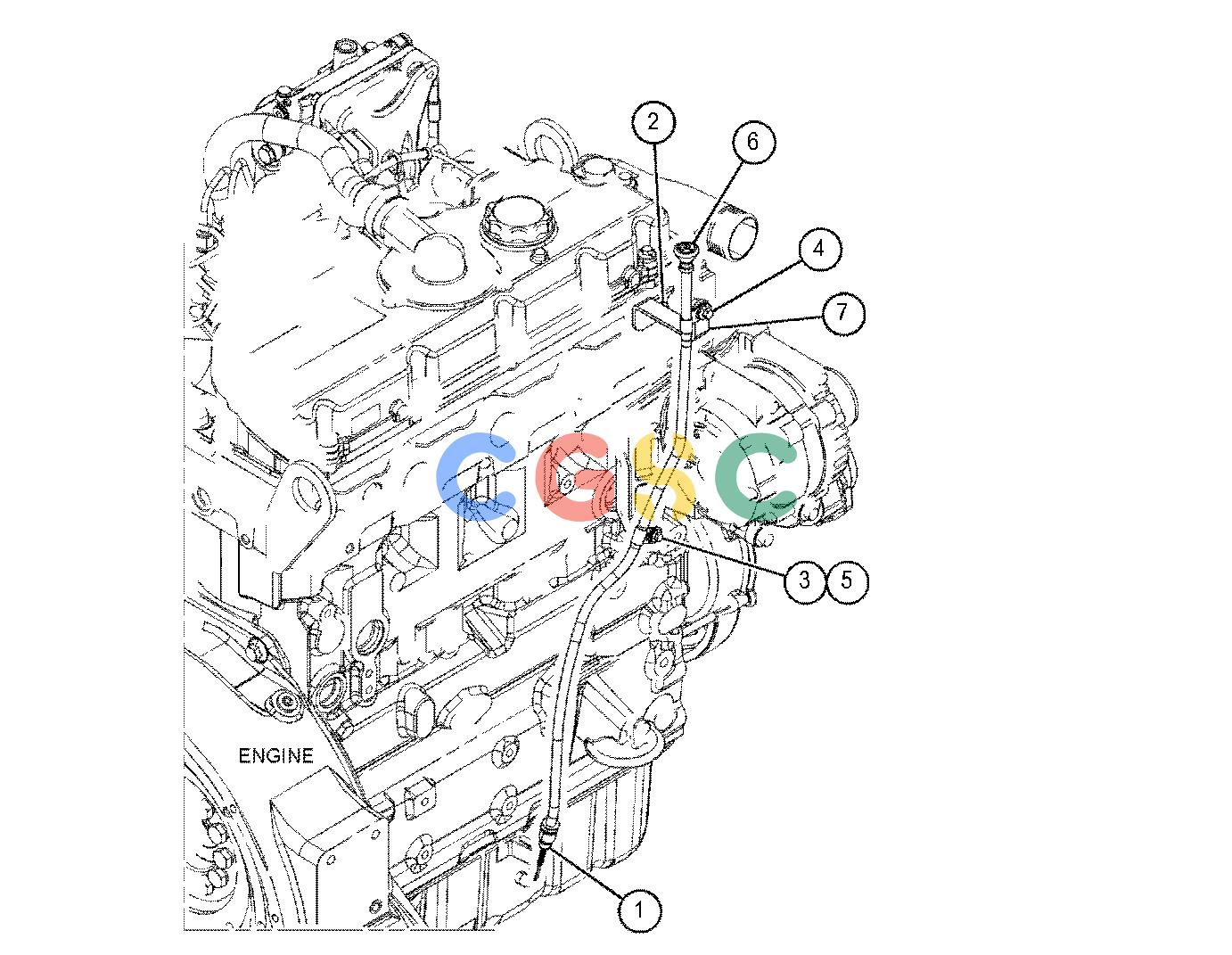

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 6I-1497 | [1] | SEAL | |
| 2. | 100-4830M | [1] | BOLT(M10X1.5X20-MM) | |
| 3. | 106-8916M | [1] | BOLT(M6X16-MM) | |
| 4. | 124-3815M | [1] | BOLT(M8X1.25X16-MM) | |
| 5. | 320-2362 | [1] | WASHER | |
| 6. | 478-4467Y | [1] | GAUGE GP-OIL LEVEL (DIPSTICK) | |
| 7. | 434-2902 | [1] | BRACKET AS | |
| 159-9540M | [1] | NUT-WELD(M8X1.25-THD) | ||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
