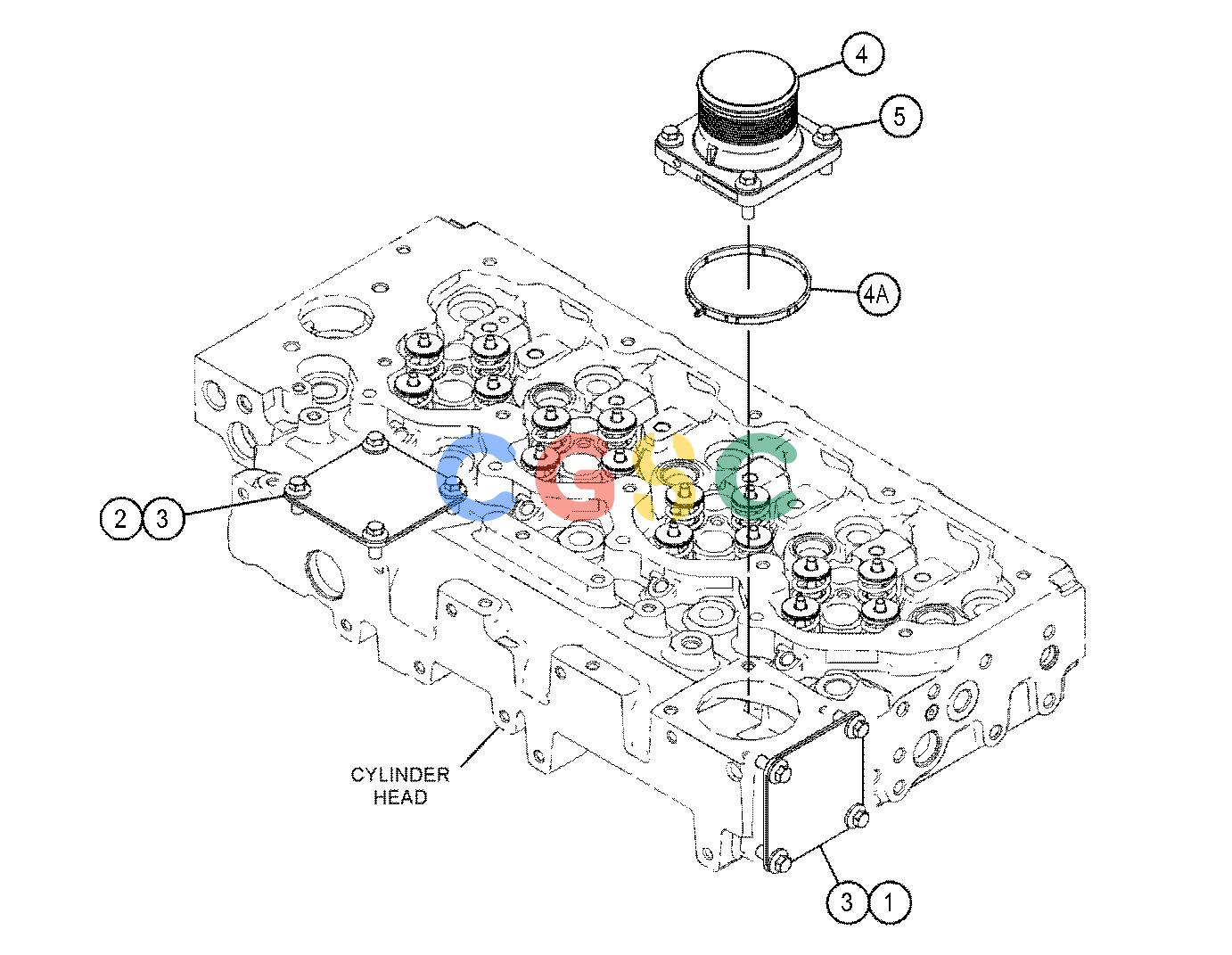

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 111-8222M | [4] | BOLT(M8X16-MM) | |
| 2. | 124-3815M | [4] | BOLT(M8X1.25X16-MM) | |
| 3. | 185-6627 | [2] | PLATE | |
| 4. | 419-3740 | [1] | CONNECTION GP-INLET | |
| 4A. | 238-8288 | [1] | GASKET-INLET | |
| 5. | 6I-0260M | [4] | BOLT(M8X1.25X25-MM) | |
| M | METRIC PART | |||
广数供应链运营团队, 17 02月, 2025，浏览： 271 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 111-8222M | [4] | BOLT(M8X16-MM) | |
| 2. | 124-3815M | [4] | BOLT(M8X1.25X16-MM) | |
| 3. | 185-6627 | [2] | PLATE | |
| 4. | 419-3740 | [1] | CONNECTION GP-INLET | |
| 4A. | 238-8288 | [1] | GASKET-INLET | |
| 5. | 6I-0260M | [4] | BOLT(M8X1.25X25-MM) | |
| M | METRIC PART | |||
