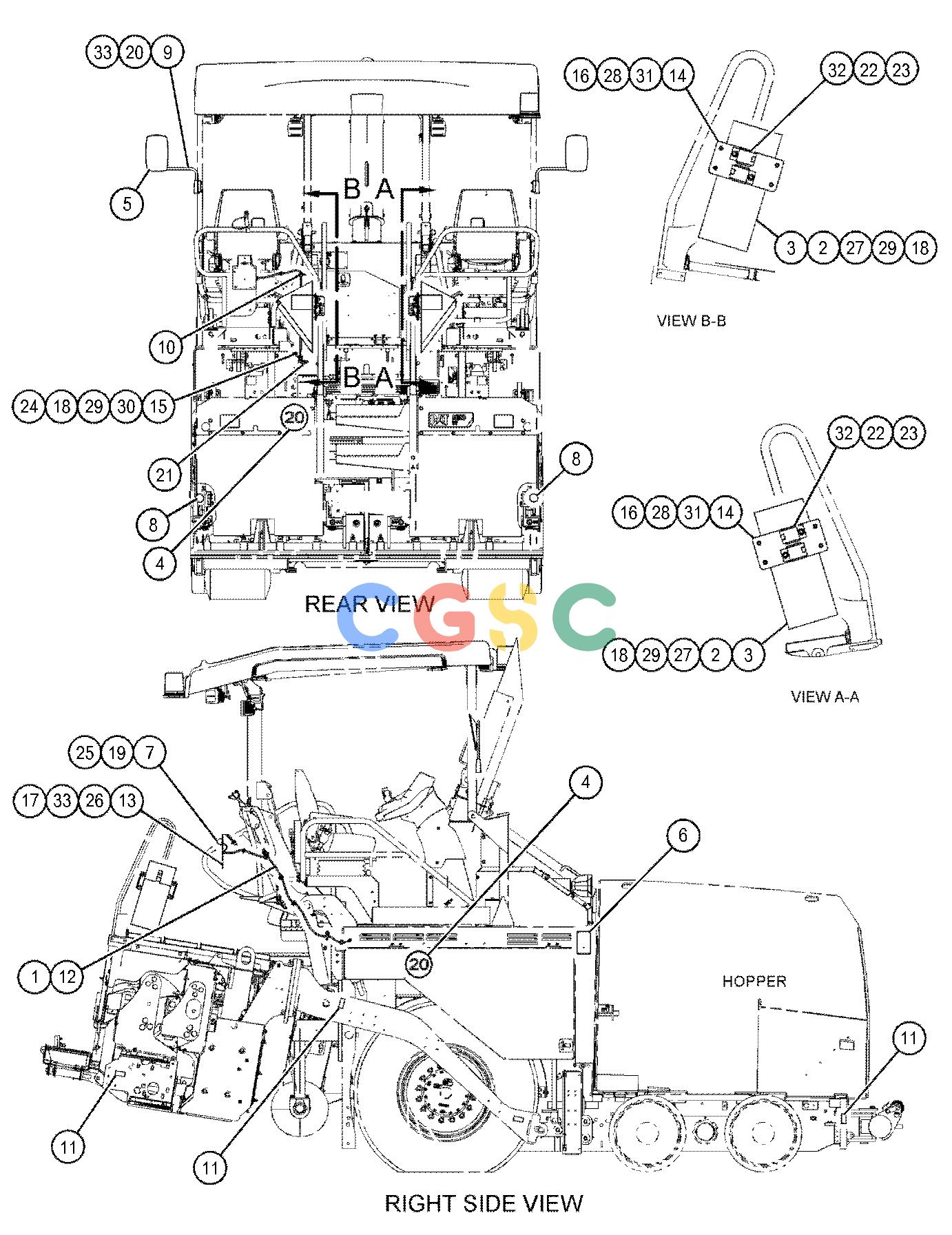

卡特零件查询（AP500F） 494-9237: CONVERSION GP-ROADING
广数供应链运营团队, 17 02月, 2025，浏览：
284 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [6] | STRAP-CABLE | |
| 2. | 6C-7224 | [2] | BRACKET AS | |
| 3. | 6C-7227 | [2] | CHOCK-WHEEL | |
| 4. | 117-6558 | [3] | FILM-IDENTIFICATION(20-KM/H) | |
| 5. | 132-9983 | [2] | MIRROR-CONVEX | |
| 6. | 159-7342 | [1] | PLATE-INFORMATION(MAXIMUM WEIGHT) | |
| 7. | 259-0134Y | [1] | LAMP GP-REGISTRATION PLATE(24-VOLT) | |
| 8. | 277-8421 | [2] | REFLECTOR-RED | |
| 9. | 321-5279 | [2] | ARM-MIRROR | |
| 10. | 327-0325 | [3] | STRAP-CABLE | |
| 11. | 344-5527 | [8] | REFLECTOR(AMBER) | |
| 12. | 445-6801 | [1] | HARNESS AS-CHASSIS(LICENSE PLATE) | |
| | 9X-3401 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1767 | [2] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE, & INTERFACE SEAL) |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 194-5226 | [2] | WIRE AS(16-GA) | |
| | | | -OR- |
| | 194-5227 | [2] | WIRE AS(14-GA) | |
| 13. | 448-2442 | [1] | BRACKET AS | |
| | 361-5420 | [1] | CLIP | |
| 14. | 458-9453 | [2] | PLATE | |
| 15. | 132-5789 | [1] | CLIP(LADDER) | |
| 16. | 329-3356M | [4] | NUT(M12X1.75-THD) | |
| 17. | 344-5673M | [2] | NUT(M6X1-THD) | |
| 18. | 344-5674M | [9] | NUT(M8X1.25-THD) | |
| 19. | 5C-2874M | [2] | NUT(M5X0.8-THD) | |
| 20. | 5C-9553M | [4] | BOLT(M6X1X16-MM) | |
| 21. | 5D-7635 | [1] | GROMMET | |
| 22. | 5P-7468 | [4] | CLIP(SLOT) | |
| 23. | 5P-7469 | [4] | CLIP(TAB) | |
| 24. | 7K-1181 | [1] | STRAP-CABLE | |
| 25. | 8T-0328 | [2] | WASHER-HARD(5.5X10X1-MM THK) | |
| 26. | 8T-3991M | [2] | SCREW-BUTTON HEAD(M6X1X20-MM) | |
| 27. | 8T-4189M | [8] | BOLT(M8X1.25X20-MM) | |
| 28. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 29. | 8T-4224 | [18] | WASHER-HARD(8.8X16X2-MM THK) | |
| 30. | 8T-4908M | [1] | BOLT(M8X1.25X25-MM) | |
| 31. | 8T-4956M | [4] | BOLT(M12X1.75X35-MM) | |
| 32. | 8T-7087 | [4] | GROMMET(34-MM ID) | |
| 33. | 9X-8256 | [6] | WASHER(6.6X12X2-MM THK) | |
| | | | |
| | 521-9194F | [1] | LOCK AS(LH) | |
| | 521-9195F | [1] | LOCK AS(RH) | |
| | 337-5532F | [1] | RAMP AS | |
| | F | | NOT SHOWN |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
