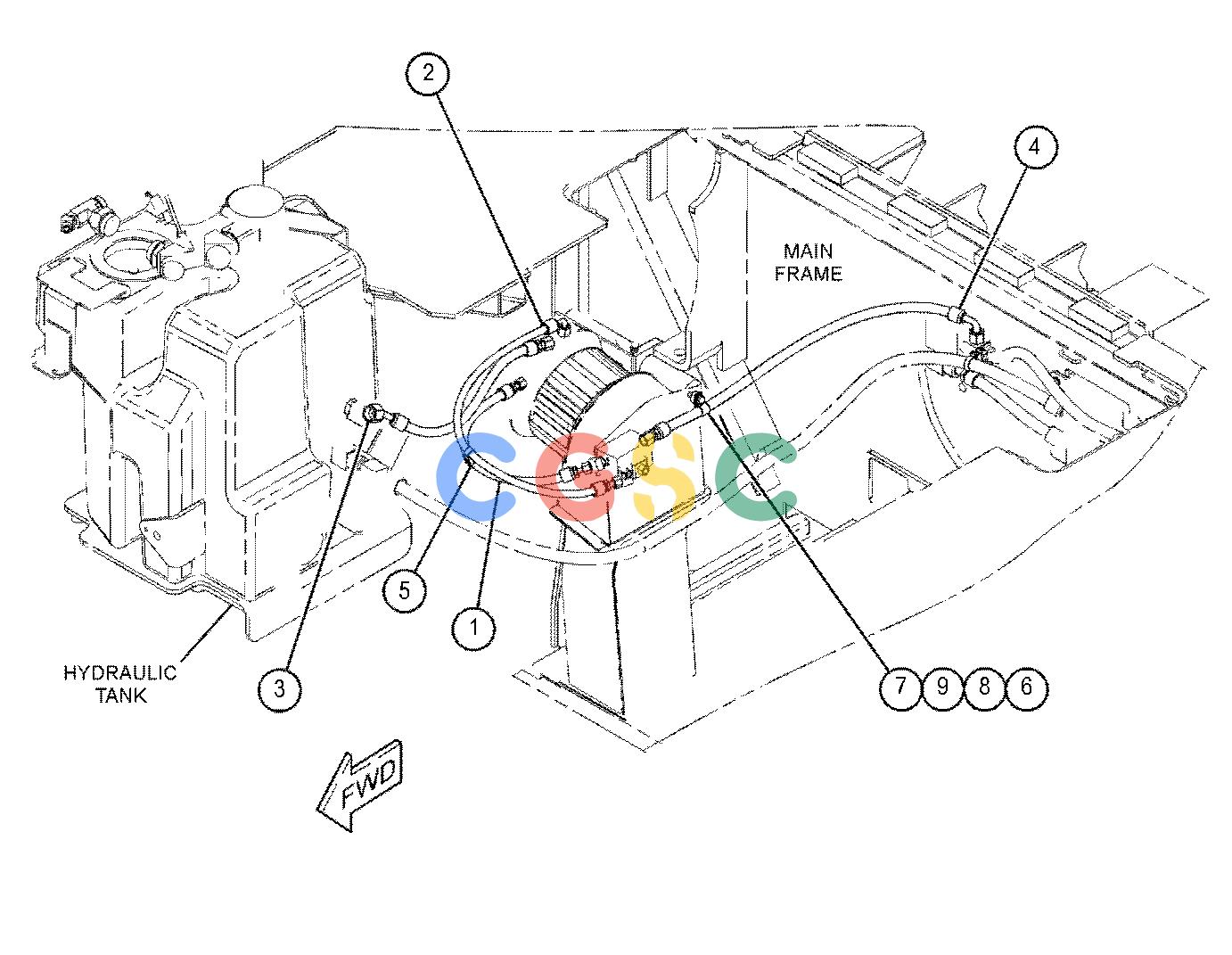

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 447-0640I | [1] | HOSE AS | |
| 2. | 447-0641I | [1] | HOSE AS | |
| 3. | 447-0642I | [1] | HOSE AS | |
| 4. | 447-0643I | [1] | HOSE AS | |
| 5. | 178-3620 | [1] | STRAP-DUAL CLAMP | |
| 6. | 198-4777 | [1] | WASHER-HARD(11X25X10-MM THK) | |
| 7. | 1S-0994 | [1] | CLIP(LOOP) | |
| 8. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 9. | 8T-4195M | [1] | BOLT(M10X1.5X30-MM) | |
| I | REFER TO HYDRAULIC INFORMATION SYSTEM | |||
| M | METRIC PART | |||
