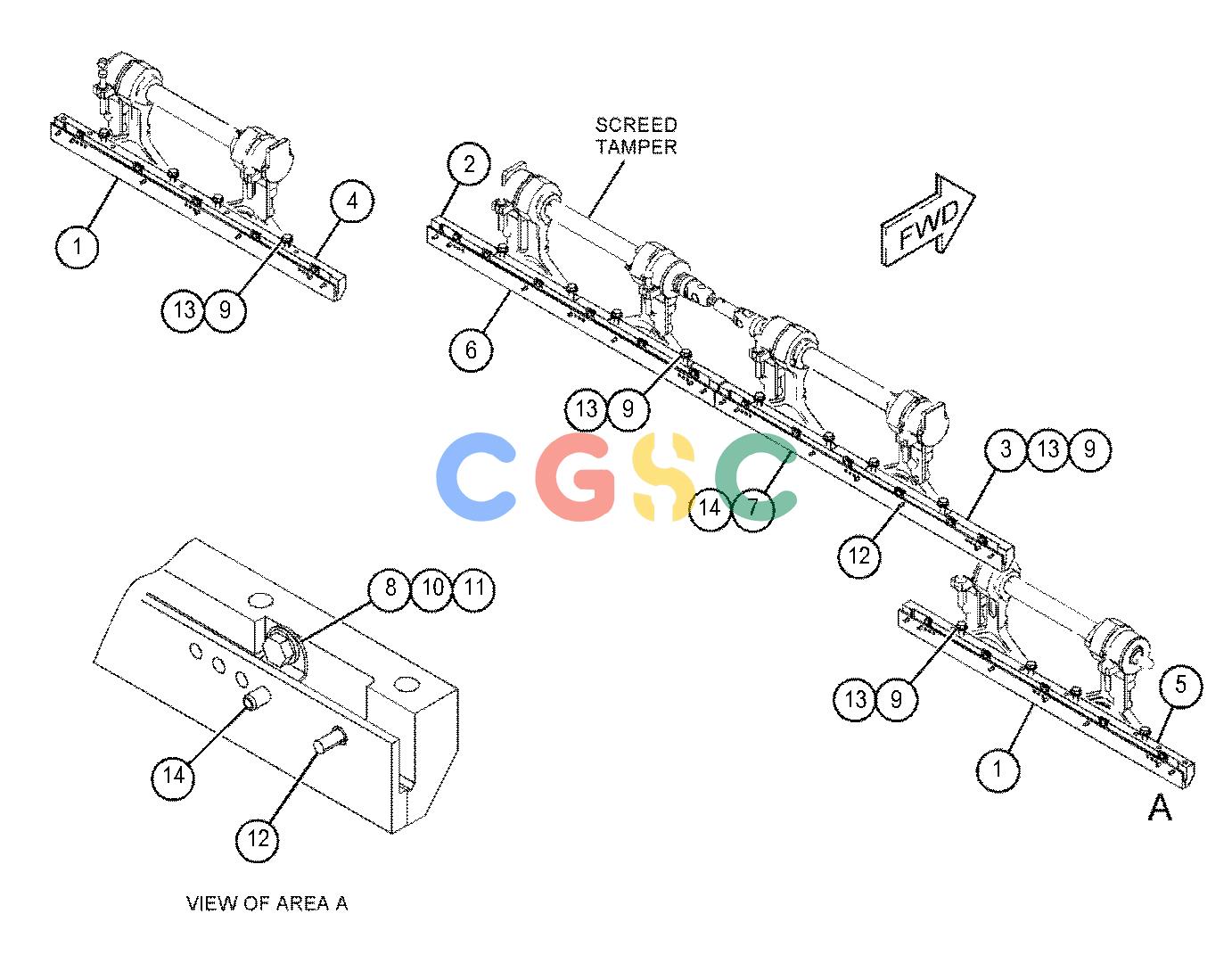

卡特零件查询（AP555F） 428-4907: BAR GP-TAMPER
广数供应链运营团队, 17 02月, 2025，浏览：
293 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 437-4503 | [2] | PLATE-WEAR(EXTENDER) | |
| 2. | 472-6153 | [1] | BAR-TAMPER(MAIN, LH) | |
| 3. | 472-6154 | [1] | BAR-TAMPER(MAIN, RH) | |
| 4. | 472-6156 | [1] | BAR-TAMPER(EXTENDER, LH) | |
| 5. | 472-6157 | [1] | BAR-TAMPER(EXTENDER, RH) | |
| 6. | 472-7046 | [1] | PLATE-WEAR(MAIN, LH) | |
| 7. | 472-7047 | [1] | PLATE-WEAR(MAIN, RH) | |
| 8. | 476-8641 | [22] | CLAMP | |
| 9. | 7X-0515 | [16] | WASHER-HARD(17X35X5-MM THK) | |
| 10. | 8T-4121 | [22] | WASHER-HARD(11X21X2.5-MM THK) | |
| 11. | 8T-4137M | [22] | BOLT(M10X1.5X20-MM) | |
| 12. | 8T-4189M | [16] | BOLT(M8X1.25X20-MM) | |
| 13. | 8T-4193M | [16] | BOLT(M16X2X50-MM) | |
| 14. | 8T-5089 | [12] | PIN-SPRING | |
| | M | | METRIC PART |
