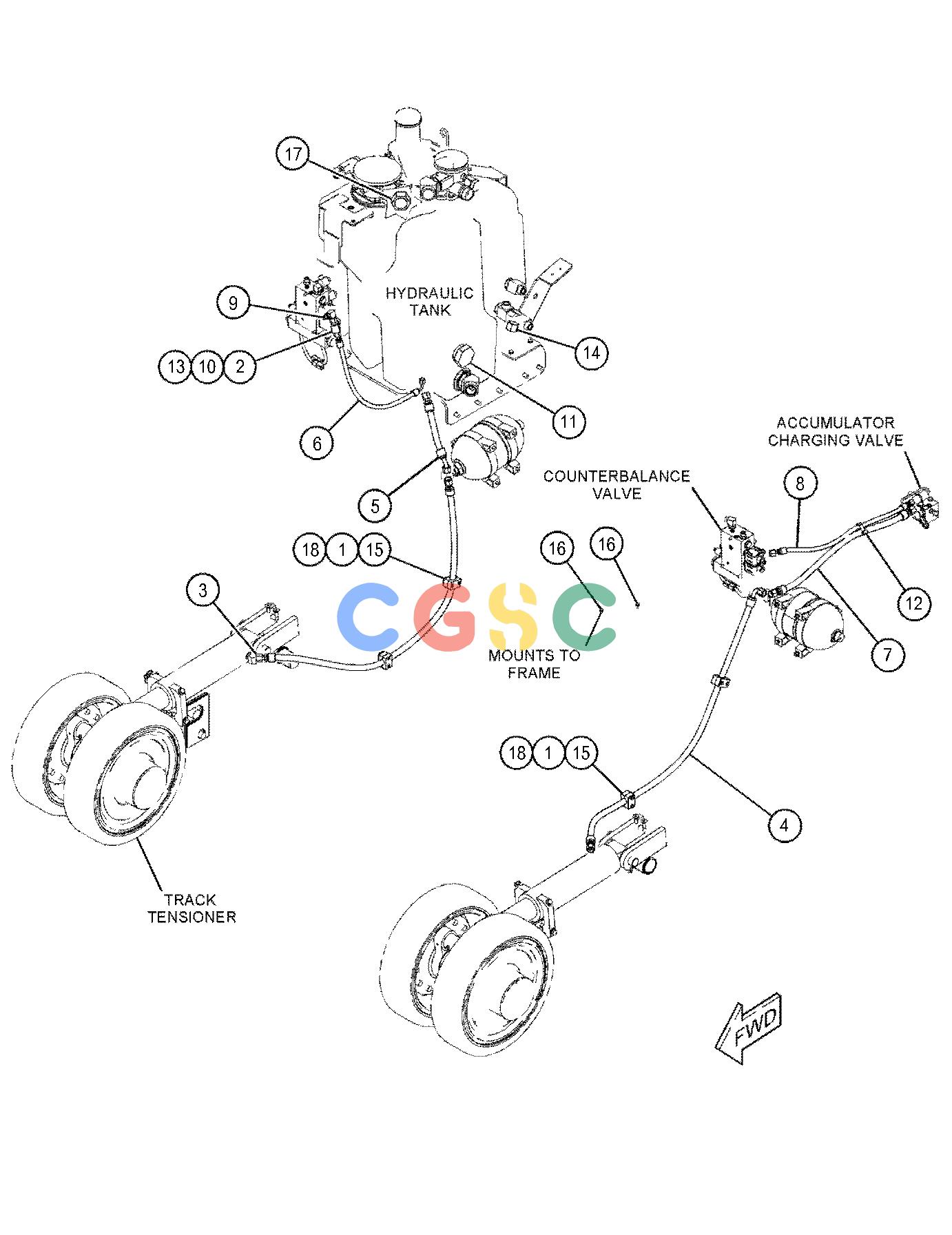

卡特零件查询（AP555F） 447-9871: LINES GP-TRACK TENSION
广数供应链运营团队, 17 02月, 2025，浏览：
691 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7V-5628 | [4] | PLATE(TOP) | |
| 2. | 148-8424 | [1] | TEE AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8T-8902 | [1] | ADAPTER-TEE | |
| 3. | 333-5648I | [1] | HOSE AS | |
| 4. | 460-9625I | [1] | HOSE AS | |
| 5. | 460-9626I | [1] | HOSE AS | |
| 6. | 460-9628I | [1] | HOSE AS | |
| 7. | 467-5668I | [1] | HOSE AS | |
| 8. | 467-5685I | [1] | HOSE AS | |
| 9. | 148-8378 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8724 | [1] | ELBOW | |
| 10. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 11. | 205-0672 | [1] | PLUG AS | |
| | 9S-7583 | [1] | PLUG | |
| | 030-4606 | [1] | SEAL-O-RING | |
| 12. | 327-0325 | [1] | STRAP-CABLE | |
| 13. | 6V-0852 | [1] | CAP-DUST | |
| 14. | 6V-9832 | [1] | CAP(ORFS) | |
| 15. | 7R-7908 | [8] | CLAMP | |
| 16. | 7X-2619M | [2] | BOLT(M6X1X10-MM) | |
| 17. | 8C-0604 | [1] | CAP AS | |
| 18. | 8C-8451M | [8] | BOLT(M6X1X40-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
