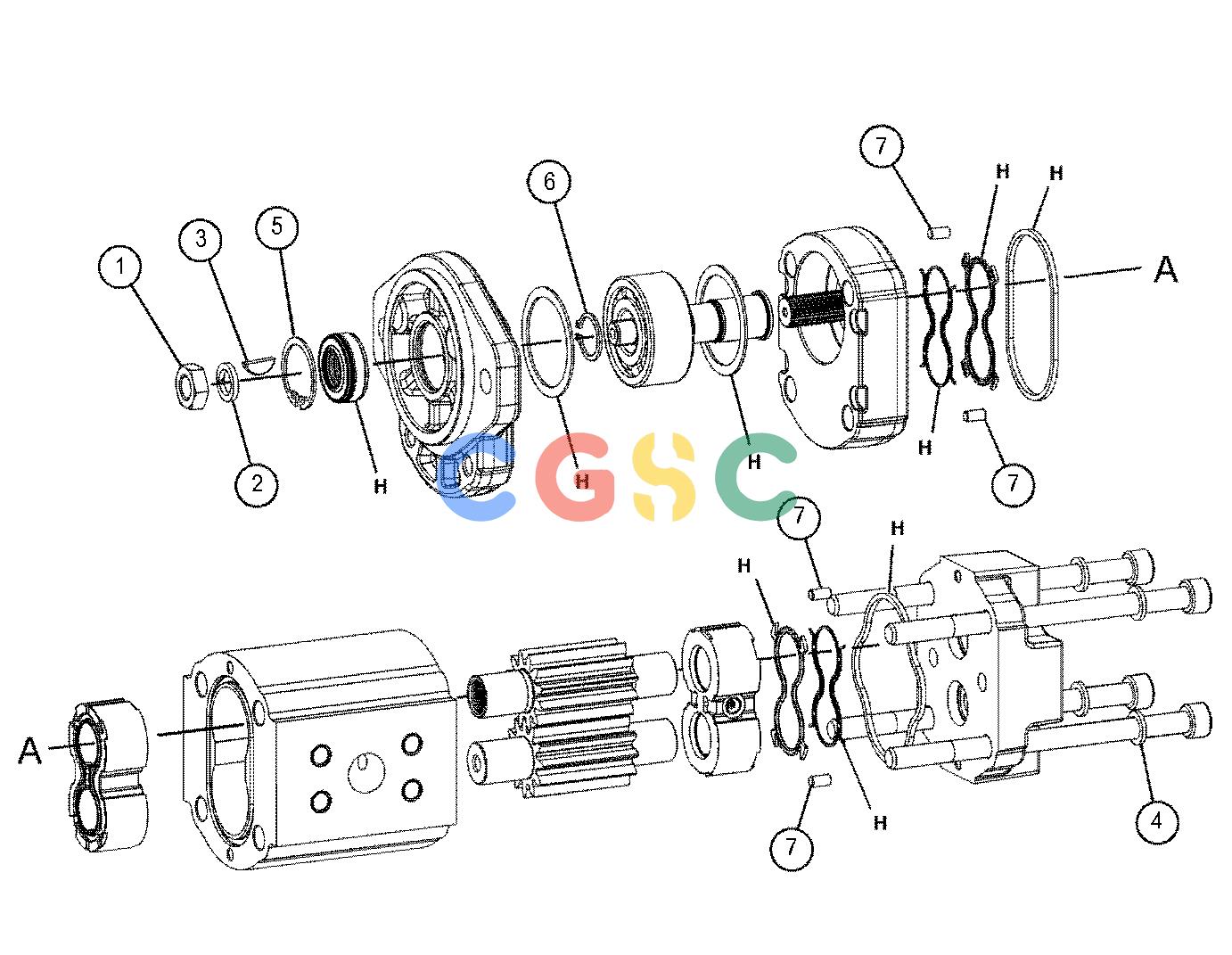

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 160-8499M | [1] | NUT(M12X1.5-THD) | |
| 2. | 9T-2005 | [1] | LOCKWASHER | |
| 3. | 3E-4333 | [1] | KEY-WOODRUFF | |
| 4. | 7X-0608 | [4] | WASHER-HARD(10.2X16X2-MM THK) | |
| 5. | 095-0936J | [1] | RING-RETAINING | |
| 6. | 095-0919 | [1] | RING-RETAINING | |
| 7. | 150-5785 | [4] | DOWEL | |
| AVAILABLE REPAIR KIT(S): | ||||
| 380-8573J | [1] | KIT-SEAL | ||
| (ALSO INCLUDES PARTS MARKED 'H' IN GRAPHIC) | ||||
| J | KIT MARKED J SERVICES PART(S) MARKED J | |||
| M | METRIC PART | |||
