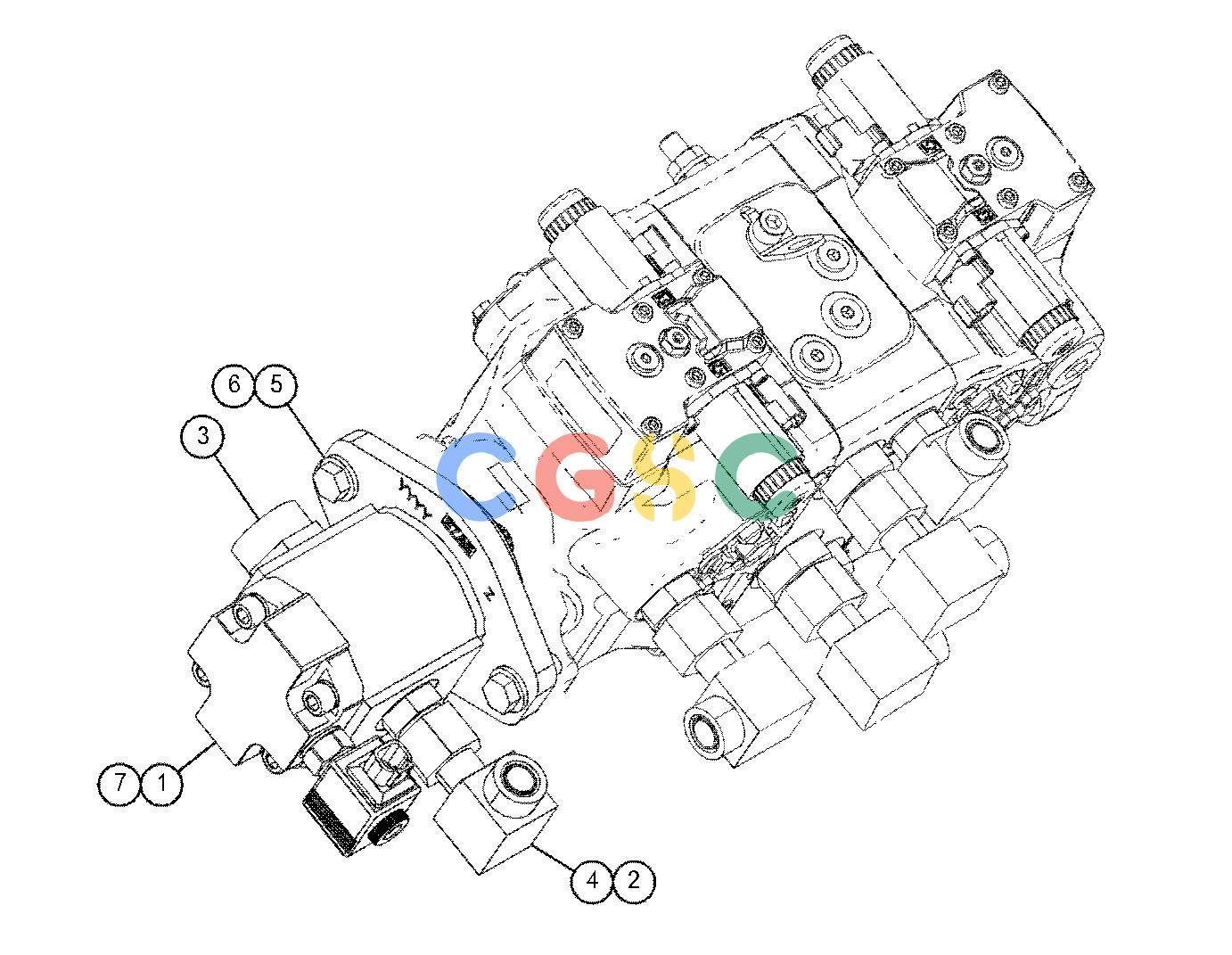

卡特零件查询（AP555F） 447-9831: PUMP & MTG GP-HYDRAULIC FAN
广数供应链运营团队, 17 02月, 2025，浏览：
127 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 433-7590Y | [1] | PUMP GP-GEAR | |
| 2. | 148-8327 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8637 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 3. | 148-8333 | [1] | CONNECTOR AS | |
| | 6V-8400 | [1] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 8T-7927 | [1] | CONNECTOR | |
| 4. | 148-8392 | [1] | ELBOW AS | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 6V-9853 | [1] | ELBOW | |
| 5. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 6. | 8T-4956M | [2] | BOLT(M12X1.75X35-MM) | |
| 7. | 8T-5049 | [1] | SEAL-O-RING | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
