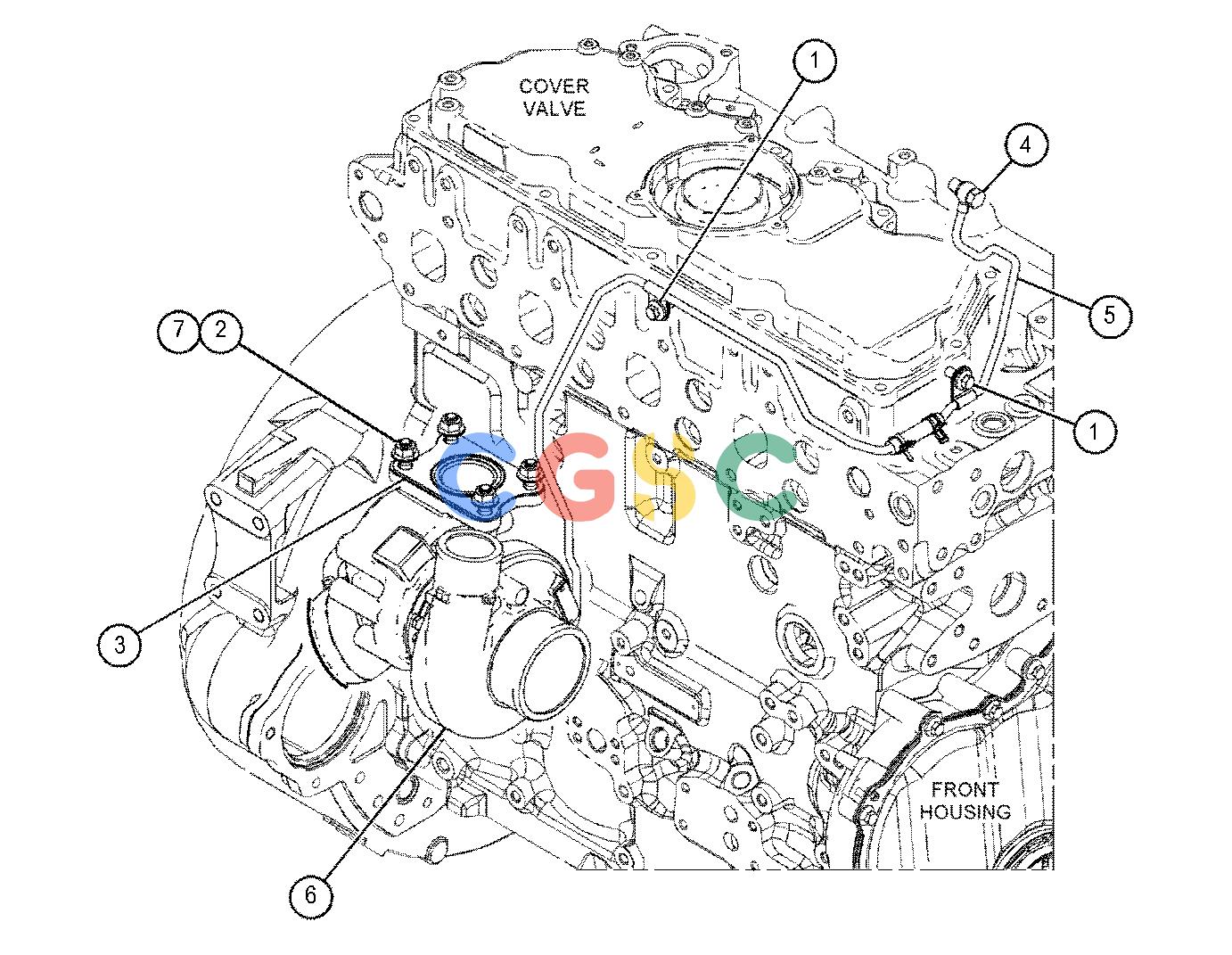

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 124-3815M | [3] | BOLT(M8X1.25X16-MM) | |
| 2. | 147-5553M | [4] | STUD(M10X1.5X40-MM) | |
| 3. | 345-6605 | [1] | GASKET | |
| 4. | 356-4035Y | [1] | LINES GP-TURBOCHARGER AIR | |
| 5. | 433-8914Y | [1] | LINES GP-TURBOCHARGER AIR(ACTUATOR) | |
| 6. | 450-1867 | [1] | TURBOCHARGER AS | |
| 487-8468 | [1] | RING | ||
| 7. | 6I-0563M | [4] | NUT(M10X1.5-THD) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
