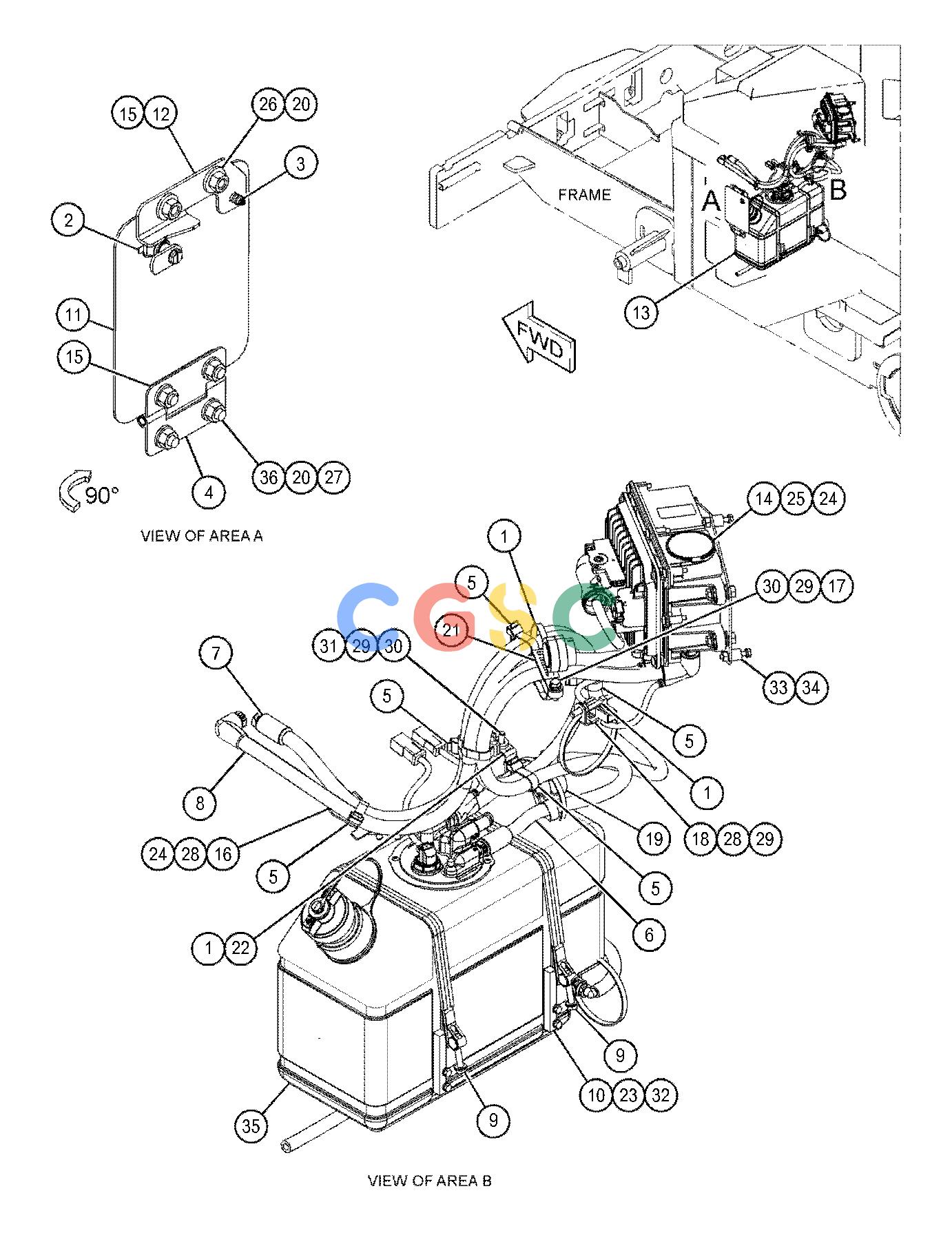

卡特零件查询（AP555F） 443-2089: LINES GP-DIESEL EXHAUST FLUID
广数供应链运营团队, 17 02月, 2025，浏览：
362 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7K-1181 | [3] | STRAP-CABLE | |
| 2. | 9G-5582 | [1] | LOCK AS-CYLINDER | |
| | 226-0294J | [1] | LOCK AS | |
| | 226-0340 | [1] | CAM | |
| 3. | 111-1777 | [1] | BUMPER-RUBBER | |
| 4. | 142-6950 | [1] | HINGE AS | |
| 5. | 204-2281 | [7] | STRAP-CABLE | |
| 6. | 443-9563 | [1] | HOSE AS(SUCTION) | |
| 7. | 443-9569 | [1] | HOSE AS | |
| 8. | 443-9577 | [1] | HOSE AS | |
| 9. | 453-9444 | [2] | STRAP AS | |
| 10. | 453-9446 | [2] | BAR | |
| 11. | 507-1532 | [1] | DOOR AS | |
| | 8T-4967M | [2] | STUD-WELD(M10X1.5X23-MM) | |
| 12. | 507-5516 | [1] | BRACKET | |
| 13. | 462-3222Y | [1] | TANK GP-DIESEL EXHAUST FLUID | |
| 14. | 466-8286Y | [1] | PUMP GP-DIESEL EXHAUST FLUID | |
| 15. | 507-5514 | [3] | SHIM | |
| 16. | 482-0183 | [1] | PLATE | |
| 17. | 091-0081 | [1] | SPACER(10.5X20X10-MM THK) | |
| 18. | 132-5789 | [1] | CLIP(LADDER) | |
| 19. | 177-2215 | [2] | STRAP-DUAL CLAMP | |
| 20. | 344-5675M | [6] | NUT(M10X1.5-THD) | |
| 21. | 352-3970 | [1] | CLIP(LADDER) | |
| 22. | 4P-8134 | [1] | CLIP(LADDER) | |
| 23. | 5C-9553M | [7] | BOLT(M6X1X16-MM) | |
| 24. | 5P-4116 | [10] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 25. | 7X-2537M | [4] | BOLT(M8X1.25X35-MM) | |
| 26. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 27. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 28. | 8T-4189M | [3] | BOLT(M8X1.25X20-MM) | |
| 29. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 30. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| 31. | 8T-7934 | [1] | WASHER-HARD(11X21X5-MM THK) | |
| 32. | 9X-8256 | [7] | WASHER(6.6X12X2-MM THK) | |
| 33. | 278-7339 | [3] | MOUNT-FLEXIBLE | |
| 34. | 442-9464 | [1] | PLATE AS | |
| | 6V-9632M | [3] | NUT-WELD(M6X1-THD) | |
| | 8T-3612M | [4] | NUT-WELD(M8X1.25-THD) | |
| 35. | 499-6783 | [1] | MAT | |
| 36. | 9X-2041M | [2] | SCREW-TRUSS HEAD(M10X1.5X20-MM) | |
| | J | | REQUIRES CORPORATE KEY |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
