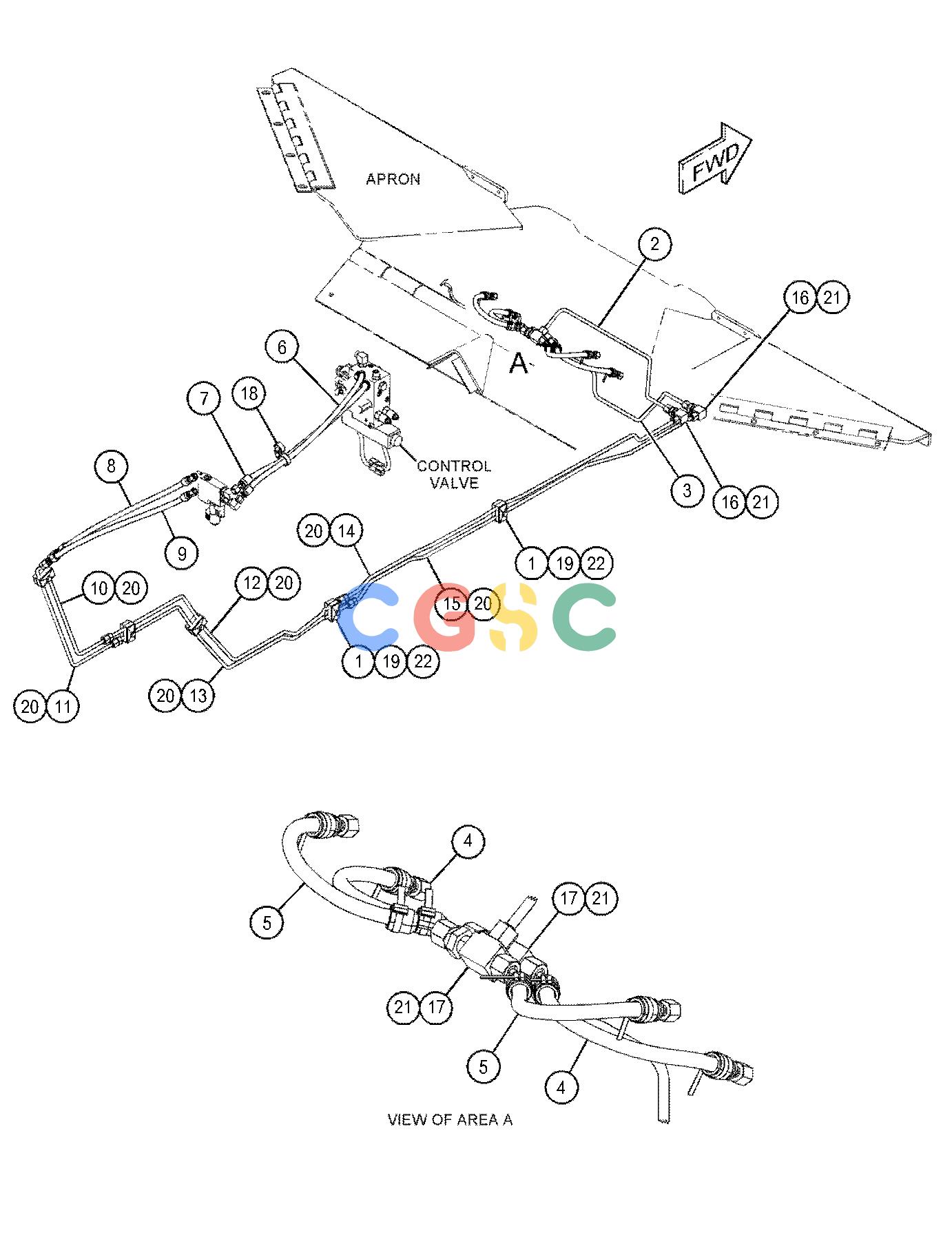

卡特零件查询（AP555F） 447-9869: HYDRAULIC AR-AUXILIARY
广数供应链运营团队, 17 02月, 2025，浏览：
787 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 447-9822Y | [1] | CYLINDER & MTG GP-HOPPER | |
| | 455-1703Y | [1] | LINES GP-BRAKE & SHIFT | |
| | 447-9825Y | [1] | LINES GP-CYLINDER(AUGER LIFT) | |
| | 447-9829Y | [1] | LINES GP-GRADE & SLOPE | |
| | 447-9824Y | [1] | LINES GP-HOPPER | |
| | 456-4294Y | [1] | LINES GP-PUMP | |
| | 447-9828Y | [1] | LINES GP-RETURN | |
| | 447-9823Y | [1] | LINES GP-SCREED(SCREED LIFT, EXTEND) | |
| | 447-9871Y | [1] | LINES GP-TRACK TENSION | |
| | 456-7114Y | [1] | PUMP & MTG GP-AUXILIARY | |
| | 447-9820Y | [1] | VALVE & MTG GP-AUXILIARY(AUXILIARY) | |
| | 447-9817Y | [1] | VALVE & MTG GP-CONTROL(PARKING BRAKE MANUAL RELEASE) | |
| | 447-9818Y | [1] | VALVE & MTG GP-CONTROL(HYDRAULIC OIL COOLER) | |
| | 447-9819Y | [1] | VALVE & MTG GP-CONTROL(HOPPER HOIST, TOW POINT) | |
| | 447-9870Y | [1] | VALVE & MTG GP-TRACK TENSIONER | |
| | Y | | SEPARATE ILLUSTRATION |
