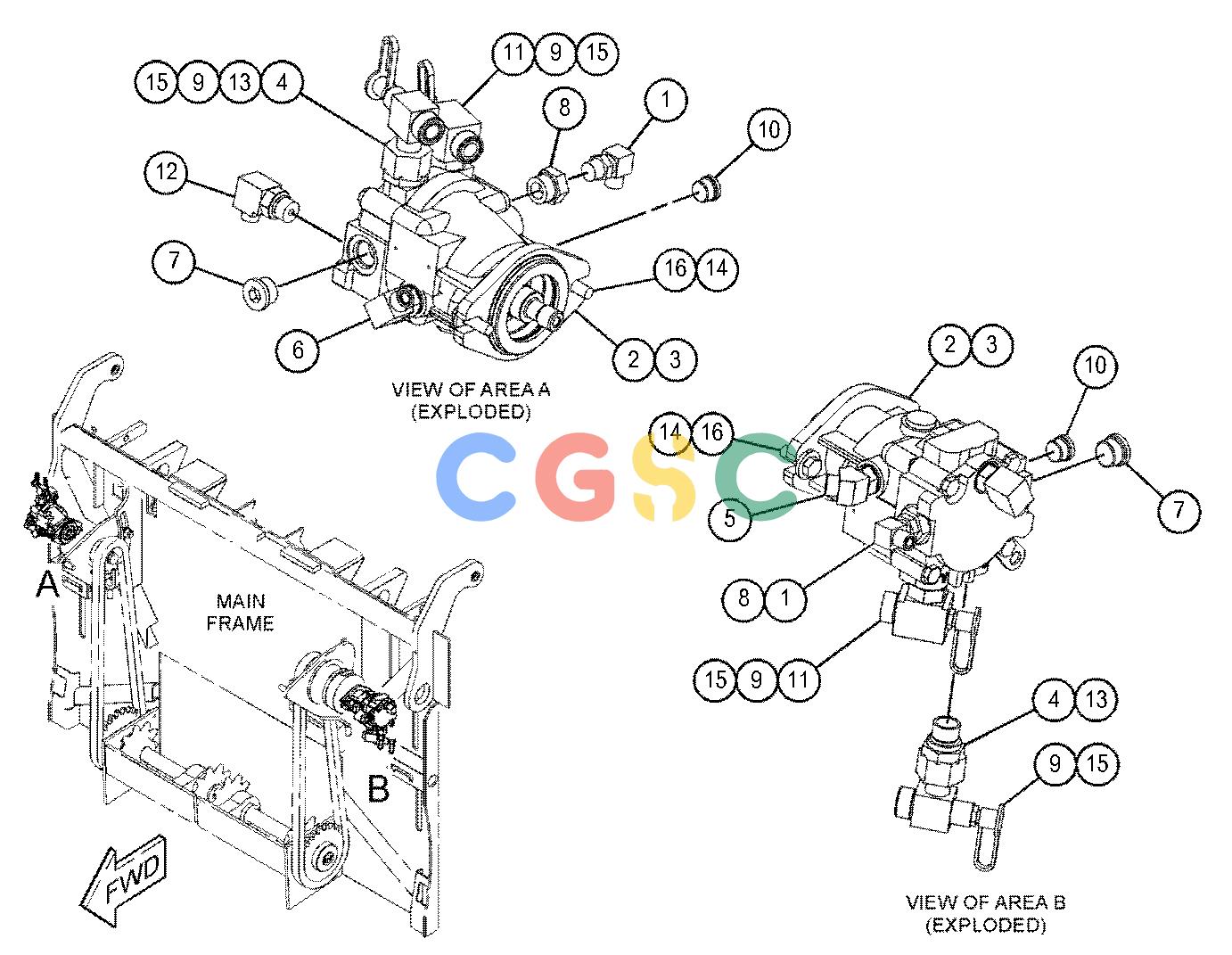

卡特零件查询（AP555F） 447-9809: MOTOR & MTG GP-CONVEYOR
广数供应链运营团队, 17 02月, 2025，浏览：
773 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 205-0598 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 118-9080 | [1] | ELBOW | |
| 2. | 392-5509Y | [2] | MOTOR GP-PISTON(CONVEYOR) | |
| 3. | 107-3120 | [2] | SEAL-O-RING | |
| 4. | 148-8317 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-8714 | [1] | CONNECTOR | |
| 5. | 148-8358 | [1] | ELBOW AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8624 | [1] | ELBOW | |
| 6. | 148-8372 | [1] | ELBOW AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8721 | [1] | ELBOW | |
| 7. | 148-8409 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 9S-8008 | [1] | PLUG(1-1/16-12-THD) | |
| 8. | 155-7321 | [2] | ADAPTER AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-1722 | [1] | ADAPTER | |
| 9. | 164-5567 | [4] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | | | (EACH INCLUDES) |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 10. | 164-5619 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 9S-8006 | [1] | PLUG(7/8-14-THD) | |
| 11. | 180-9286 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 3E-2345 | [1] | ADAPTER-TEE | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 12. | 205-3692 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 9X-2134 | [1] | ELBOW | |
| 13. | 297-7973 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 297-7972 | [1] | TEE-ORP TO ORFS | |
| 14. | 5P-1076 | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 15. | 6V-0852 | [4] | CAP-DUST | |
| 16. | 8T-4956M | [4] | BOLT(M12X1.75X35-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
