卡特零件查询（AP555F） 447-9829: LINES GP-GRADE & SLOPE
广数供应链运营团队, 17 02月, 2025，浏览：
940 次

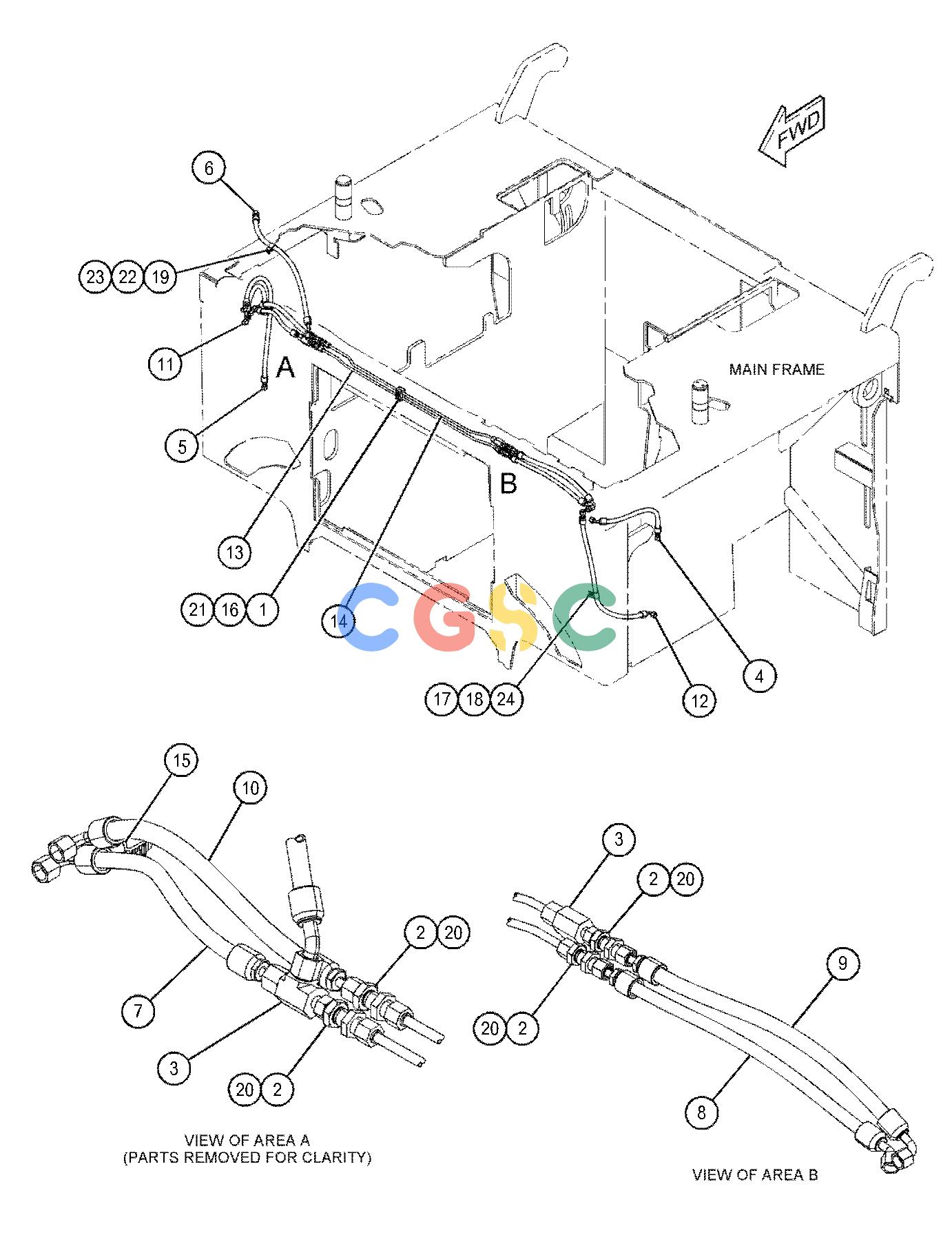

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 102-8703 | [1] | PLATE-COVER | |
| 2. | 213-2265 | [4] | UNION AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 150-0128 | [1] | UNION | |
| 3. | 297-7948 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 101-0052 | [1] | TEE-UNION | |
| 4. | 344-6115I | [1] | HOSE AS | |
| 5. | 399-6321I | [1] | HOSE AS | |
| 6. | 455-1706I | [1] | HOSE AS | |
| 7. | 455-1707I | [1] | HOSE AS | |
| 8. | 455-1708I | [1] | HOSE AS | |
| 9. | 456-8963I | [1] | HOSE AS | |
| 10. | 456-8964I | [1] | HOSE AS | |
| 11. | 458-7044I | [1] | HOSE AS | |
| 12. | 458-7045I | [1] | HOSE AS | |
| 13. | 467-5661 | [1] | TUBE AS | |
| 14. | 467-5662 | [1] | TUBE AS | |
| 15. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| 16. | 206-6409 | [2] | CLAMP-HALF | |
| 17. | 3S-8664 | [1] | CLIP(LOOP) | |
| 18. | 5P-4116 | [1] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 19. | 6D-4246 | [1] | CLIP(LOOP) | |
| 20. | 6V-9168 | [4] | NUT(11/16-16-THD) | |
| 21. | 7X-2537M | [1] | BOLT(M8X1.25X35-MM) | |
| 22. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 23. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 24. | 8T-4189M | [1] | BOLT(M8X1.25X20-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
