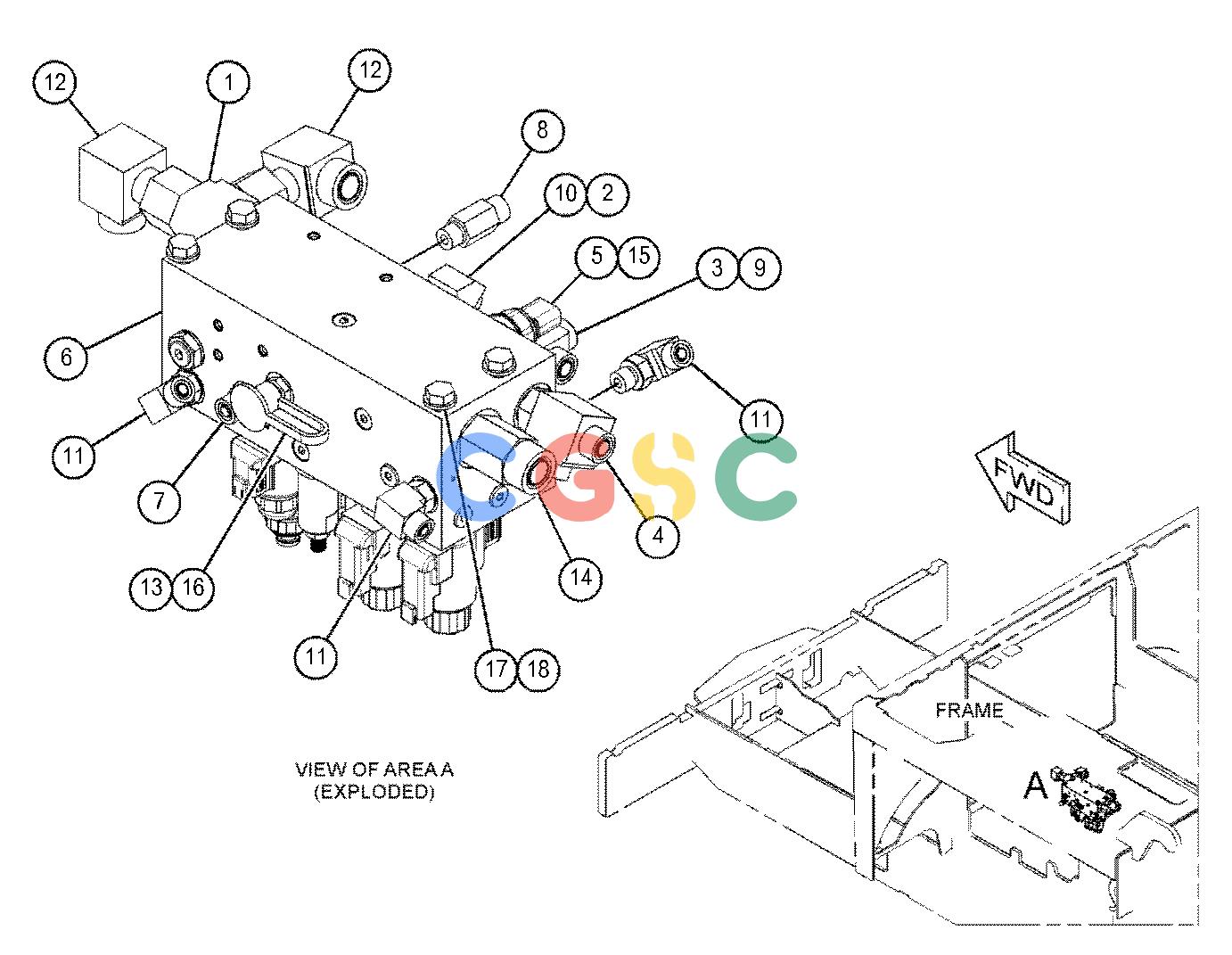

Pos.	Part No	Qty	Parts name
1.	164-9904	[1]	TEE AS
	2M-9780	[1]	SEAL-O-RING
	6V-9746	[2]	SEAL-O-RING
	122-9088	[1]	TEE
2.	148-8435	[1]	TEE AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[2]	SEAL-O-RING
	6V-8781	[1]	TEE
3.	148-8444	[1]	TEE AS-SWIVEL
	6V-8398	[2]	SEAL-O-RING
	6V-9837	[1]	TEE-SWIVEL
4.	164-6872	[1]	TEE AS
	2M-9780	[1]	SEAL-O-RING
	6V-8398	[2]	SEAL-O-RING
	115-8634	[1]	TEE-O-RING
5.	344-7390	[1]	SENSOR GP-PRESSURE(HYDRAULIC OIL)
6.	396-7164Y	[1]	MANIFOLD & VALVE GP(AUXILIARY)
7.	148-8336	[1]	CONNECTOR AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8636	[1]	CONNECTOR
8.	148-8338	[1]	CONNECTOR AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	8T-0075	[1]	CONNECTOR
9.	148-8340	[1]	CONNECTOR AS
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8639	[1]	CONNECTOR
10.	148-8371	[1]	ELBOW AS
	6V-8397	[1]	SEAL-O-RING
	8C-8988	[1]	ELBOW
11.	148-8378	[3]	ELBOW AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8724	[1]	ELBOW
12.	148-8392	[2]	ELBOW AS
			(EACH INCLUDES)
	6V-9746	[1]	SEAL-O-RING
	6V-9853	[1]	ELBOW
13.	164-5567	[1]	COUPLER AS-QUICK DISCONNECT(MALE)
	6V-3965	[1]	FITTING(QUICK DISCONNECT)
	214-7568	[1]	SEAL-O-RING
14.	164-5606	[1]	CONNECTOR AS
	3D-2824	[1]	SEAL-O-RING
	6V-9746	[1]	SEAL-O-RING
	8T-0078	[1]	CONNECTOR
15.	3J-1907	[1]	SEAL-O-RING
16.	6V-0852	[1]	CAP-DUST
17.	8T-4121	[4]	WASHER-HARD(11X21X2.5-MM THK)
18.	8T-4136M	[4]	BOLT(M10X1.5X25-MM)
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION
